Working video of the machine：
Product Attributes :
1.Formed Material | PPGI,GI,AI | Thickness:1.5-3mm | ||
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
3.Main body | Roller station | 15 rows(As your requirement) | ||
Diameter of shaft | 80mm solid shaft | |||
Material of rollers | 45# steel, hard chrome plated on the surface | |||
Machine body frame | 350 H steel | |||
Drive | Chain transmission | |||
Dimension(L*W*H) | 8500*1600*1600(customize) | |||
Weight | 6.5T | |||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
5.Power | Motor Power | 11KW | ||
Hydraulic system power | 5.5KW | |||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
7.Control system | Electric Box | Customized(famous brand) | ||
Language | English(Support multiple languages) | |||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||
The advantage of this fully automatic z purlin forming machine：
High strength and lightweight:
The special Z purlin cross-sectional structure of Z purlin significantly increases its load-bearing area and exhibits extremely high strength. When facing pressure and tension, Z purlin can stably support the building structure, ensuring the safety and stability of the building. Meanwhile, the weight of Z purlin is relatively light, which can reduce the self weight of buildings, lower the cost and difficulty of infrastructure construction.
Convenient processing:
Z purlin has good machinability and can be easily cut, bent, and welded. This makes it highly flexible in the design and construction of complex building structures, and able to adapt to the needs of various special shapes.
Widely used:
Z purlin is widely used in various fields such as construction, bridges, and automobile manufacturing. In the field of architecture,Z purlin is commonly used as structural support for large buildings such as industrial plants, commercial complexes, and large sports venues; In bridge engineering, Z purlin is used for the main beam and bridge deck to ensure the stability of the bridge; In automobile manufacturing, Z purlin is used for body structure and chassis, providing stability and safety.
Accuracy measurement image:
Product Description：

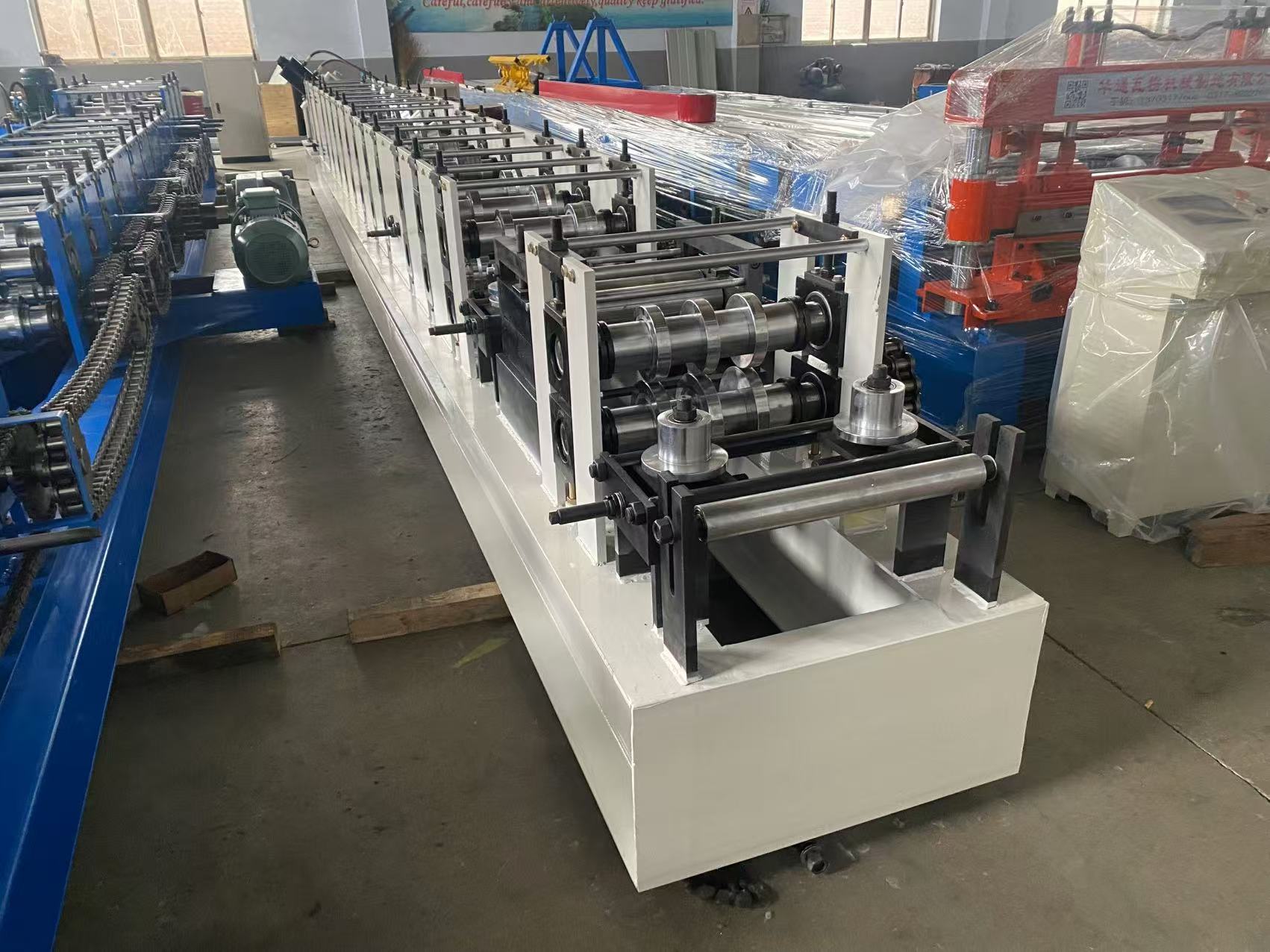

Z purlin forming machine is a mechanical equipment used for producing Z purlins, widely used in civil buildings of large and medium-sized enterprises, such as factories, locomotive depots, exhibition halls, etc. Due to its excellent mechanical properties and beautiful appearance, Z purlins is often used as the main load-bearing structure in these buildings. The Z purlin forming machine produces Z purlins through rolling forming, which has the characteristics of solemnity, elegance, beauty and novelty. It has a flat appearance, uniform ripples, high utilization rate, high strength, high degree of production automation, low cost and durability.
Products Display：
