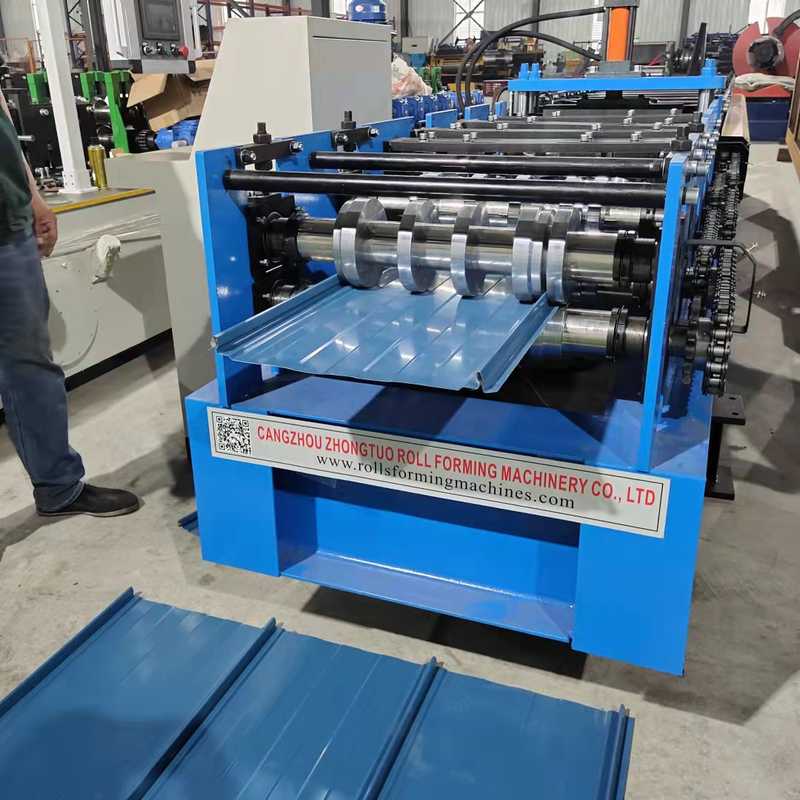

Hot Selling Snap Lock Standing Seam Rolling Forming Machine

The snap lock standing seam rolling forming machine is an automated equipment dedicated to producing snap lock edge roof tiles, which manufactures metal with snap lock standing seam structure through molding and rolling forming processes. Its core functions include:

1. High precision molding:
Using CNC technology to achieve precise control of tile size and bite structure, ensuring tight splicing.
2. Multi material adaptation:
Supports processing of materials such as aluminum magnesium manganese alloy, color steel, concrete, etc., to meet the needs of different scenarios.
3. Integrated production:
covering the entire process of feeding, forming, cutting, and quality inspection, with a high degree of automation.

Structural characteristics and advantages：

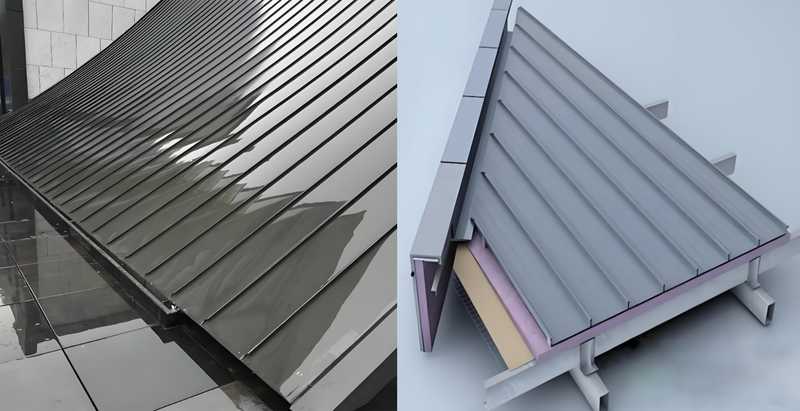

Vertical seam structure design

(1) By biting the inclined surface and splicing the slopes up and down, a complete roof system is formed, with strong wind resistance and the ability to withstand wind speeds of 12 or above;

(2) The special structure at the bottom of the tile valley accelerates drainage, avoids rainwater backflow, and has better waterproof performance than traditional tiles;

(3) The molding density is uniform, the flexural strength is ≥ 200 kg, and the frost resistance meets international standards.

Intelligent control system

(1) Equipped with PLC industrial computer and frequency converter, supporting remote control and fault diagnosis, the production speed can reach 8-10 meters/minute;

(2) Automatic fixed length cutting and hydraulic forming, reducing manual intervention, with a yield rate of over 95%.

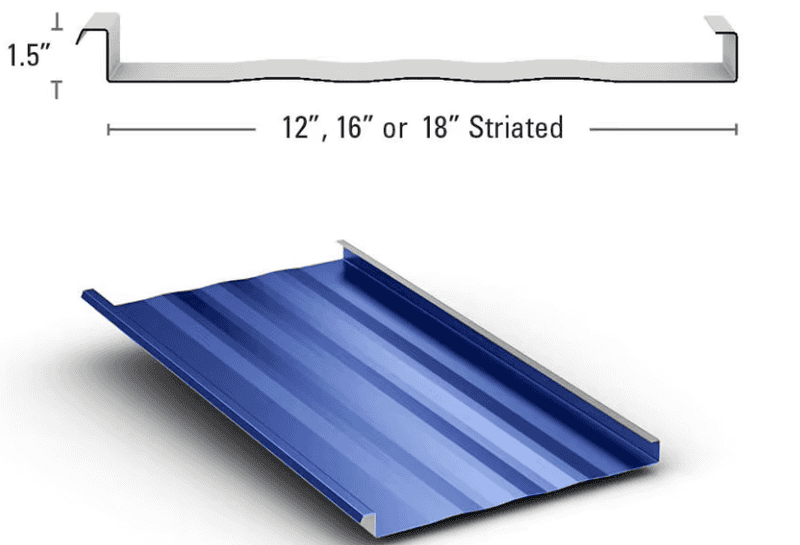

Pattern diagram：

Product Attributes :

1.Formed Material	PPGI,PPGL,AI,Etc.	Material Thickness:0.4-0.8mm
2.Decoiler	Hydraulic decoiler(optional)	Manual decoiler(will give you as free）
3.Main body	Roller station	Due to your requirement profile
	Diameter of shaft	Due to your requirement profile
	Material of rollers	High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
	Machine body frame	Due to your requirement profile
	Drive	gear and Double Chain transmission/gearbox transmission optional
	Dimension(LWH)	Due to design
	Weight	Due to design
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	7.5KW(normally)
	Hydraulic system power	5.5KW
6.Voltage	As your requirement	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	Support multiple languages
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	0-80m/min	Provide customized
