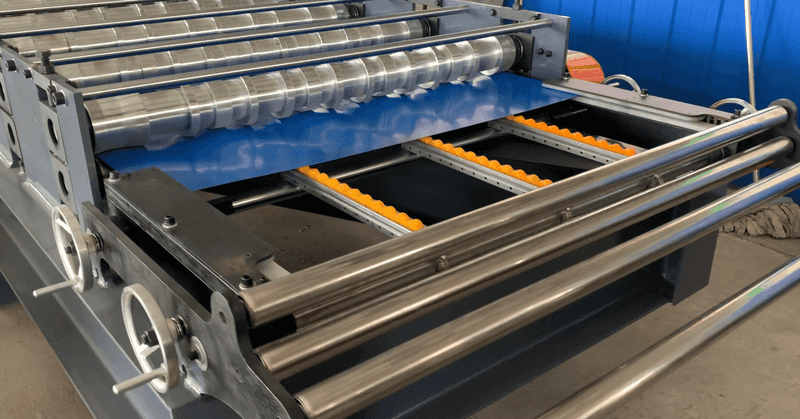

Steel Metal Trapezoid Roof Sheet Roll Forming Machine Trapezoid Panel Making Machine

2025-06-18
Trapezoid Roof Sheet Machine

{"source_type":"douyin_beauty_me","data":{"enter_from":"enter_launch","os":"ios","capability_key":[],"product":"retouch","effect_type":"tool","pictureId":"3CD52256-E5D6-4C0E-8476-89E85C363C44","playId":"","imageEffectId":"","capability_extra_v2":{},"appversion":"12.4.0","filterId":"","effect_id":"tool","infoStickerId":"????????","stickerId":"","activityName":""}}

The trapezoidal roof tiles produced by the trapezoid roof sheet roll forming machine have a smooth and beautiful appearance, uniform ripples, and even paint patterns. The product has high strength, durability, and is both dignified and elegant, as well as beautiful and innovative. It has a high utilization rate and uses a sturdy solid shaft. Its rolling design concept can release the internal stress of the board, making the board shape good and accurate. Equipped with a PLC computer control system, it is easy to operate and can set parameters such as product length, quantity, batch, etc., achieving automated production of the whole machine. The operating language can be set according to requirements, and it is also equipped with a docking plug for easy installation. The product is widely used in the roofs and walls of industrial plants, warehouses, locomotive depots, aircraft hangars, sports halls, exhibition halls, cinemas and other buildings. It can be used for roof production in industrial plants, warehouses and other places. It has the characteristics of high wave peak, high strength, safe and reliable overlapping installation, and strong waterproof, anti typhoon and anti riot performance. We can adjust and optimize production parameters according to different customer needs and project requirements, and produce trapezoidal roof tile products that meet specific specifications and performance standards.

Machine advantages:

Efficient production:
The trapezoid roof sheet roll forming machine adopts advanced manufacturing technology, which can efficiently and quickly produce high-quality tiles. This efficient production capacity can greatly shorten the production cycle and meet the needs of large-scale production.
Stable quality:
Through precise molds and stable production processes, the trapezoid roof sheet roll forming machine produces tiles with stable quality, precise dimensions, smooth surfaces, and can meet various building needs.
Diversified design:
Trapezoidal roof sheet roll forming machine are usually equipped with multiple molds, which can produce tiles of different shapes and sizes to meet different architectural styles and design needs.
Energy saving and environmental protection:
In the production process, trapezoid roof sheet roll forming machines usually adopt energy-saving and environmentally friendly production methods to reduce energy consumption and waste emissions, which meets the requirements of sustainable development.
Low maintenance cost:
Due to its excellent design and manufacturing process, the trapezoid roof sheet roll forming machine has a long service life and relatively low maintenance costs, making it more economical in the long run.

Product Attributes :

1.Formed Material	PPGI,GI,AI	Thickness（0.4-0.7mm） Width（customized）
2.Decoiler	Hydraulic automatic decoiler	Ordinary decoiler(will give you as free）

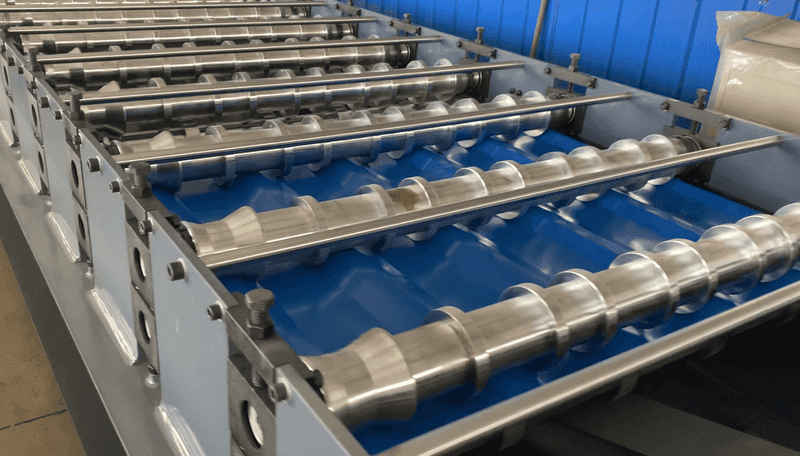

3.Main body	Roller station	10-20 rows(As your requirement)
	Diameter of shaft	70mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive chain	1.2inch(As your requirement)
	Dimension(LWH)	1000016001600（customize）
	Weight	4-6T

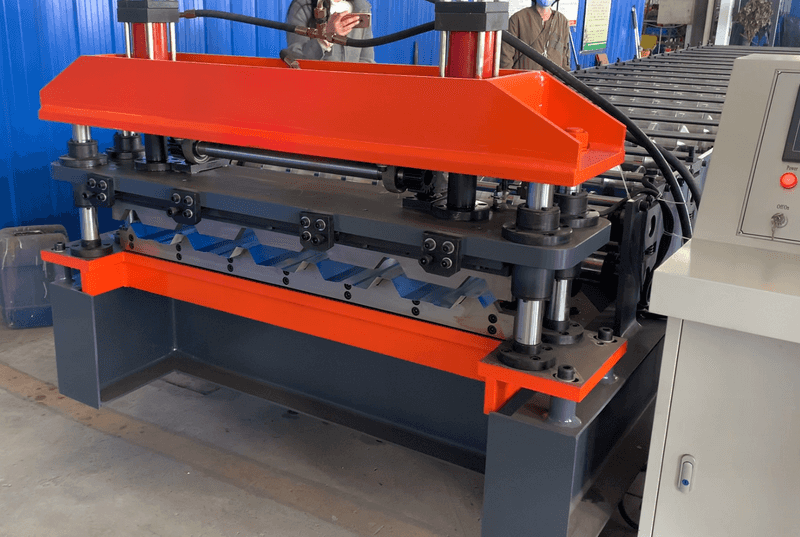

4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Power	7.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized（famous brand）
	Language	English（Support multiple languages）
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	20m/min	The speed depends on the shape of the tile and the thickness of the material.
