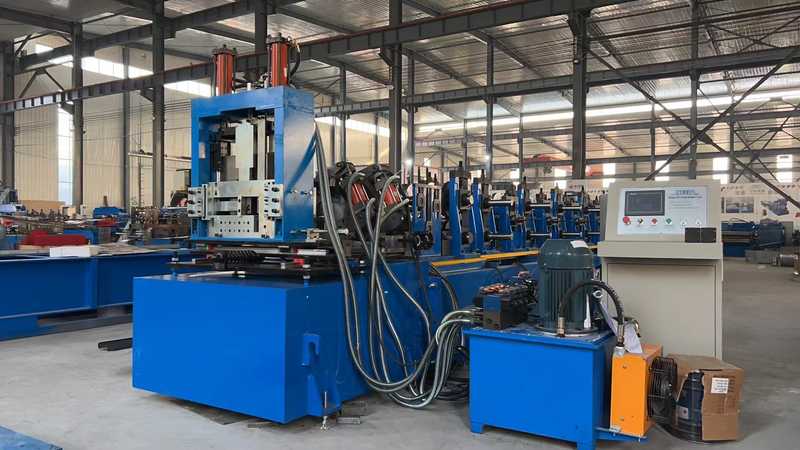

CZ Purlin Interchangeable Roll Forming Machine
Here is the working video of this machine for everyone to watch:
Product Attributes ：
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Main features:
1.Multifunctionality:
It can complete rapid changeover within 3 minutes, realizing the exchange production of C-shaped steel and Z-shaped steel. Some models, such as the fully automatic changeover flip 180 degree CZ integrated machine, can automatically complete C-shaped conversion, thickness adjustment, and roll clearance adjustment, with easy operation and no need for complex manual intervention.
2.High forming accuracy:
The vertical and side rolling clearances of the forming machine can be accurately adjusted to ensure that the R angle of the steel is neat and uniform, resulting in a smooth appearance, sharp lines, and high dimensional accuracy of the finished steel.
3.Efficient and convenient cutting:
Adopting an infinite cutting system, cutting does not require changing molds or tools, saving time and labor costs for tool replacement and improving production efficiency.
4.High degree of automation:
Equipped with advanced computer control systems such as PLC control systems, touch screen operation interfaces, etc., it can achieve automated control of the production process, reduce manual operations, improve production efficiency and product quality stability.
Machine advantages:
- Efficient production:
The CZ steel integrated machine can achieve rapid switching and production of C-type and Z-type steel, with a switching time of only three minutes, greatly improving production efficiency. In addition, the device adopts fully automatic control, reducing manual intervention and further improving production speed and accuracy. - Flexibility and adjustability:
The CZ steel integrated machine has a high degree of flexibility, allowing for easy adjustment of the dimensions of the belly plate, flange, and flange edge. The adjustment accuracy is measured in millimeters to meet the needs of different specifications and models. This design enables the equipment to meet diverse production needs, improving production efficiency and flexibility. - Cost saving:
The CZ steel integrated machine reduces equipment maintenance and parts replacement costs through coaxial design and design that does not require replacement of forming rollers. In addition, the compact design of the equipment saves space and reduces investment costs. - High quality production:
The CZ steel integrated machine adopts advanced technology and equipment to ensure the production of precise dimensions and shapes, ensuring the quality and stability of the products. This high-quality production capacity makes the CZ steel integrated machine highly competitive in the market. - Widely used:
The C-type and Z-type steel produced by CZ steel integrated machine are widely used in wall and roof structures of buildings, with characteristics such as lightweight, high strength, and easy construction. The application of these steels in the construction field not only reduces the weight of buildings, but also reduces the amount of steel used in engineering and lowers costs.

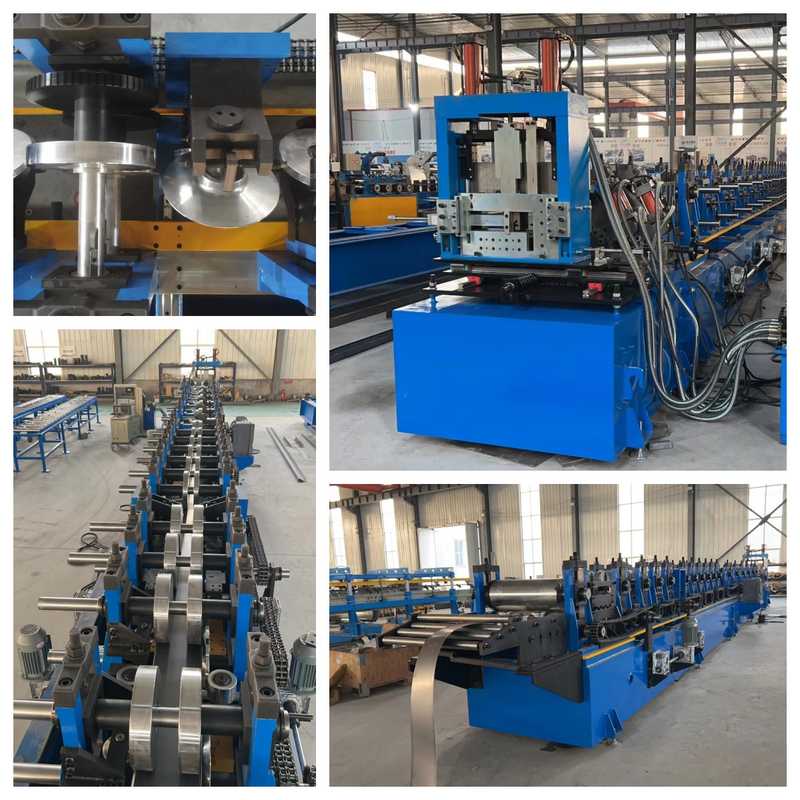

Products Display：
