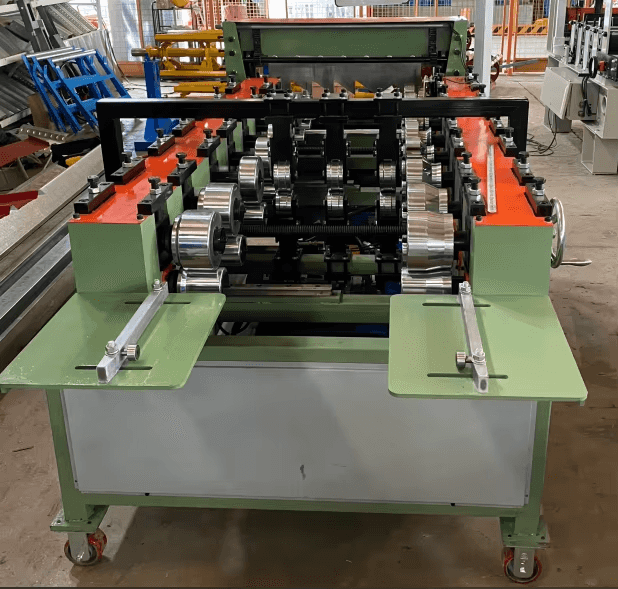

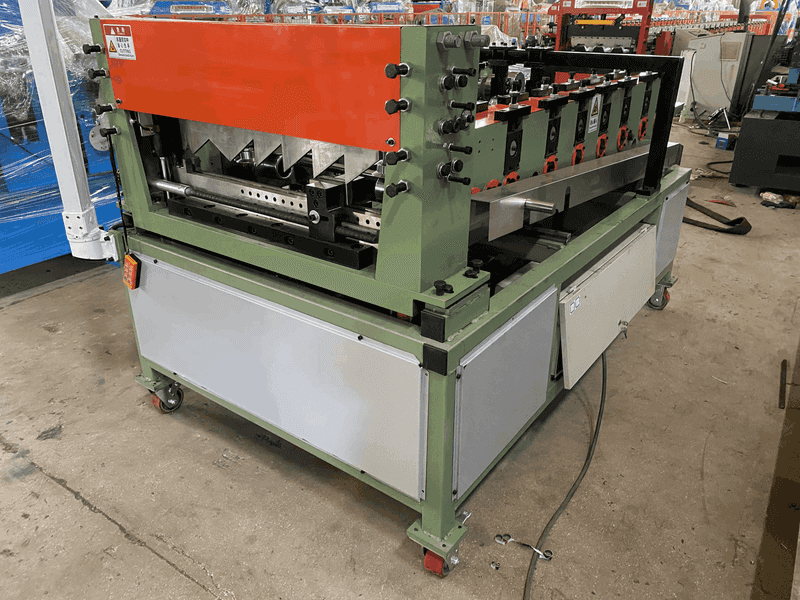

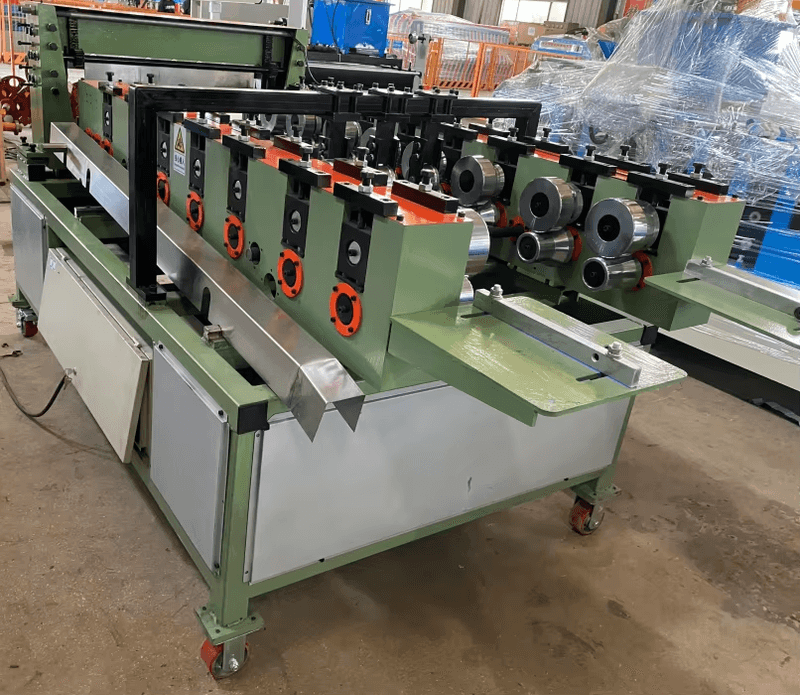

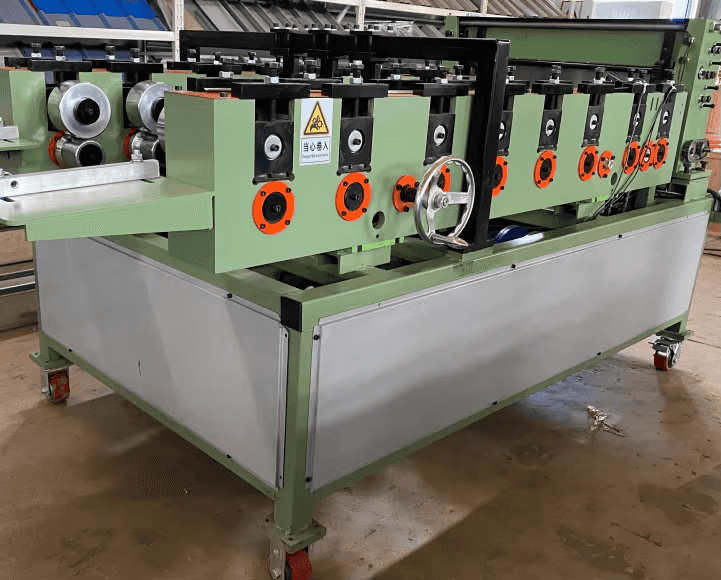

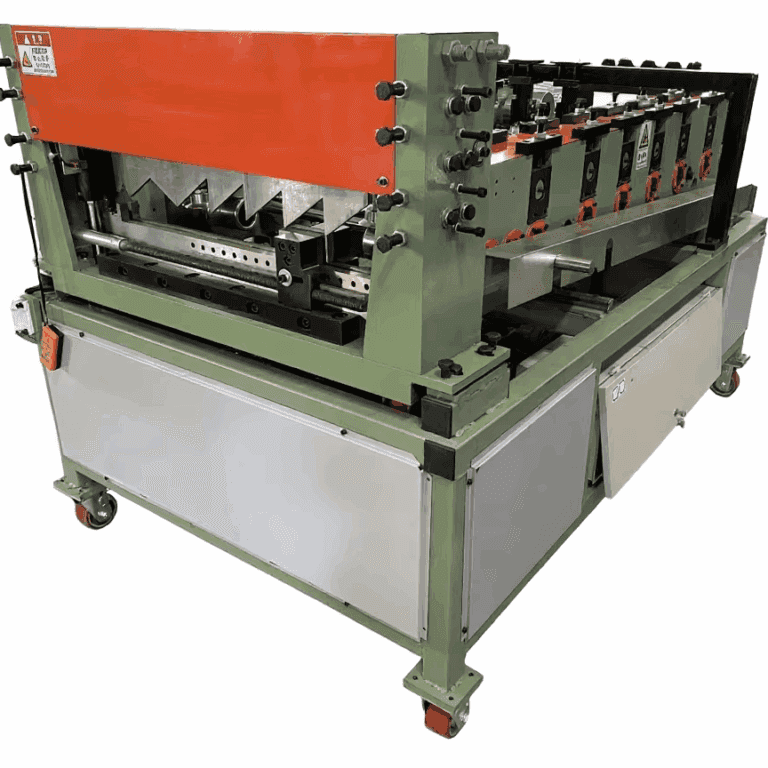

Portable Colored Steel Standing Seam Metal Roof Sheet Roll Forming Machine
In today's construction industry, which constantly pursues efficiency, convenience, and innovation, traditional roof tile production is limited by issues such as site fixation, bulky equipment, and high transportation costs, making it difficult to meet the growing demand for flexible construction in modern engineering. The portable vertical seam roof tile machine emerged in this industry pain point, breaking through the shackles of traditional production mode and bringing a new solution to roof tile production. This machine adopts modular design and lightweight materials, reducing the overall weight by 40% compared to traditional equipment. It only requires 2-3 people to complete rapid handling and assembly. The intelligent CNC system it is equipped with supports multiple preset parameters for vertical seam tile types, which can adjust production specifications in real time according to actual needs on the construction site, greatly shortening the production cycle. With its unique design and excellent performance, this machine is gradually becoming a powerful assistant for construction, roof renovation and other projects, especially in emergency rescue projects with tight schedules and remote construction projects, demonstrating irreplaceable advantages.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.3-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gear and Double Chain transmission/gearbox transmission optional
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
4.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|

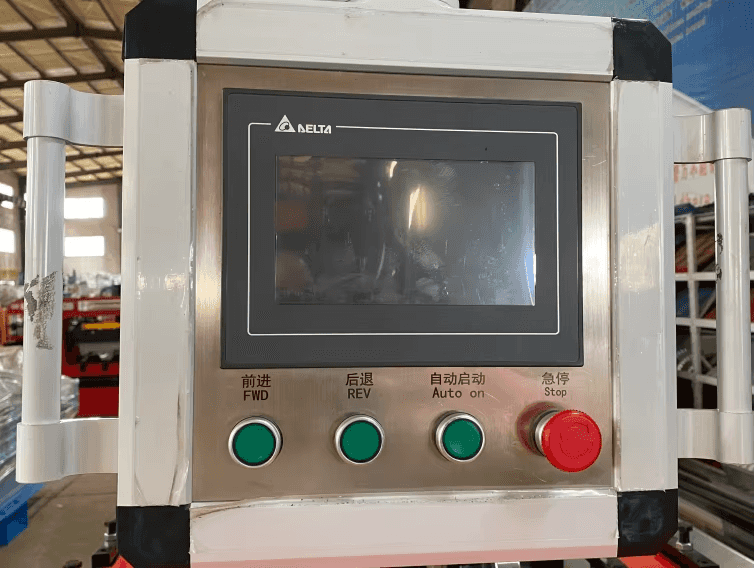

7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-80m/min
|
Provide customized
|
||
Convenient mobility, go wherever you want：
Traditional roof tile production machines are bulky and difficult to move, often only able to operate in fixed factories. Transporting the produced roof tiles to the construction site is not only costly, but also prone to damage during transportation. The portable vertical seam roof tile machine completely breaks this limitation. It is compact in size, lightweight, and some models can even be easily disassembled for easy carrying and transportation. Whether it is a small construction site or a remote building site, it can be flexibly accessed, truly realizing the "production of roof tiles anytime, anywhere", greatly improving the mobility and flexibility of production.
Efficient production and excellent quality：
Despite its "mini" size, its production efficiency should not be underestimated. Advanced roll forming technology and precise mechanical construction enable this machine to quickly and stably process metal sheets into seamless roof tiles. The production speed can reach [X] meters per minute, greatly reducing the project duration and saving you valuable time. At the same time, while ensuring speed, strictly control product quality. The machine produced vertical seam roof tiles have precise dimensions, smooth surfaces, and uniform vertical seam heights, ensuring the waterproofing and aesthetics of the roof. Its high-strength metal material, combined with exquisite craftsmanship, gives roof tiles excellent durability and can withstand various harsh weather tests, providing long-term reliable protection for buildings.
Easy to operate and worry free maintenance：
For construction workers, operating complex machines is undoubtedly a major challenge. The portable vertical seam roof tile machine fully considers this point, adopts a humanized design, and the operation interface is simple and easy to understand. Even workers who are new to it can quickly get started after simple training. The machine runs stably with a low failure rate, and daily maintenance work is easy and convenient. The key components are made of high-quality materials, which are wear-resistant and durable, reducing maintenance costs and downtime, and safeguarding your production operations.
Widely applicable and highlighting value：
Whether it is large-scale roofing projects for commercial buildings or renovation and renovation of residential buildings; Whether it is the construction of industrial plants or the roof construction of public facilities, portable vertical seam roof tile machines can show their skills. It can produce various specifications and materials of vertical seam roof tiles, such as color steel plates, galvanized plates, aluminum alloy plates, etc., to meet various architectural styles and functional requirements. Moreover, the on-site production of roof tiles reduces intermediate transportation links, avoids material waste, lowers overall costs, and creates higher economic benefits for you.
Choosing a portable vertical seam roof tile machine means choosing an efficient, convenient, and economical way of producing roof tiles. It will inject new vitality into your construction project and help you stand out in the fierce market competition. If you are interested in this magical machine, please feel free to contact us at any time to learn more about product details and technical parameters. We will be dedicated to serving you!
