Hanging Greenhouse Gutter Roll Forming Machine For Hydroponics

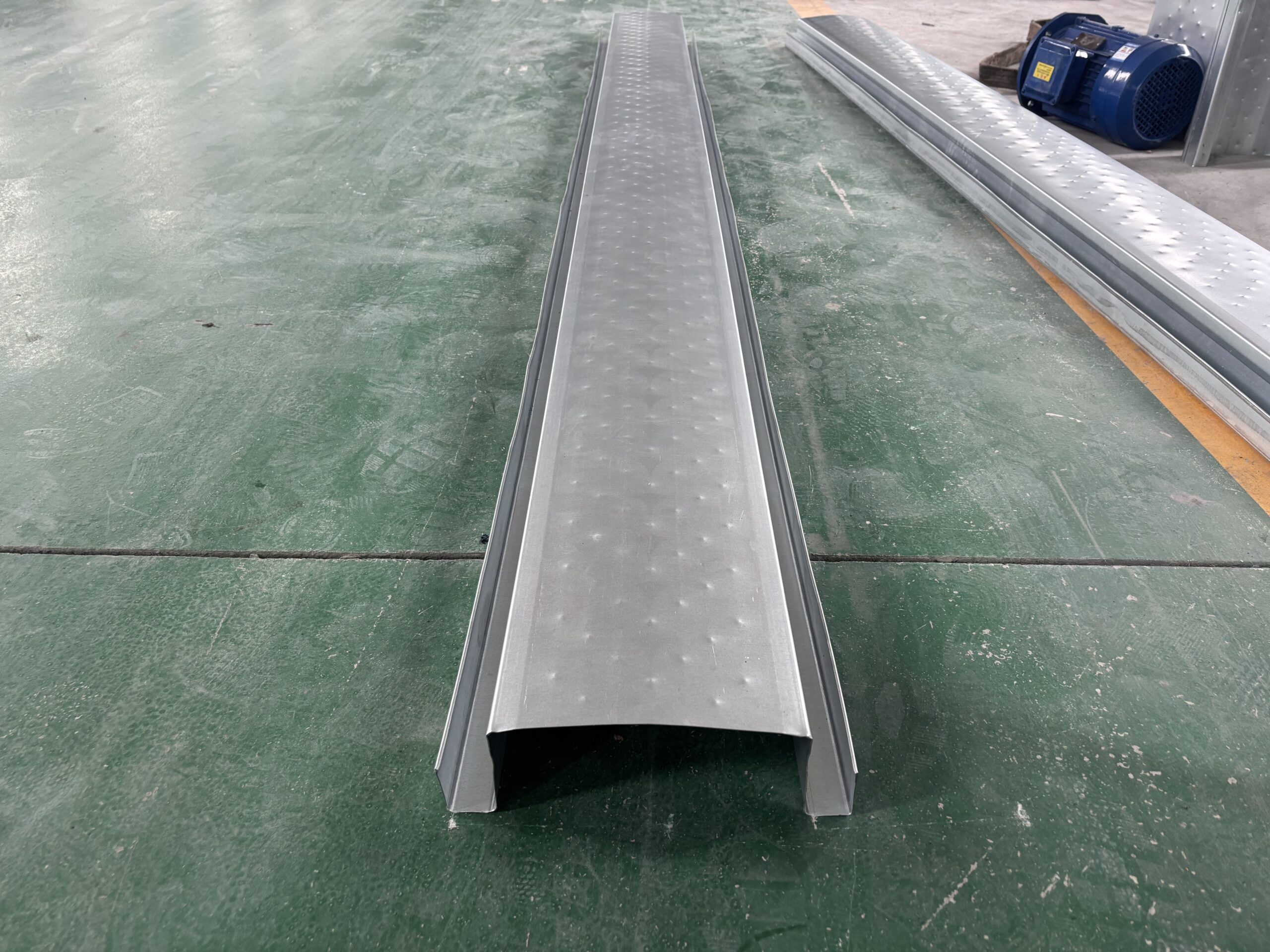

The Hanging Greenhouse Gutter Roll Forming Machine For Hydroponics is a continuous roll forming intelligent equipment designed specifically for modern facility agriculture. Using cold bending forming technology, it processes galvanized steel sheets, aluminum sheets, and other metal coils into hanging hydroponic troughs of specific cross-sectional shapes (such as U-shapes and trapezoids) in a single, online process.

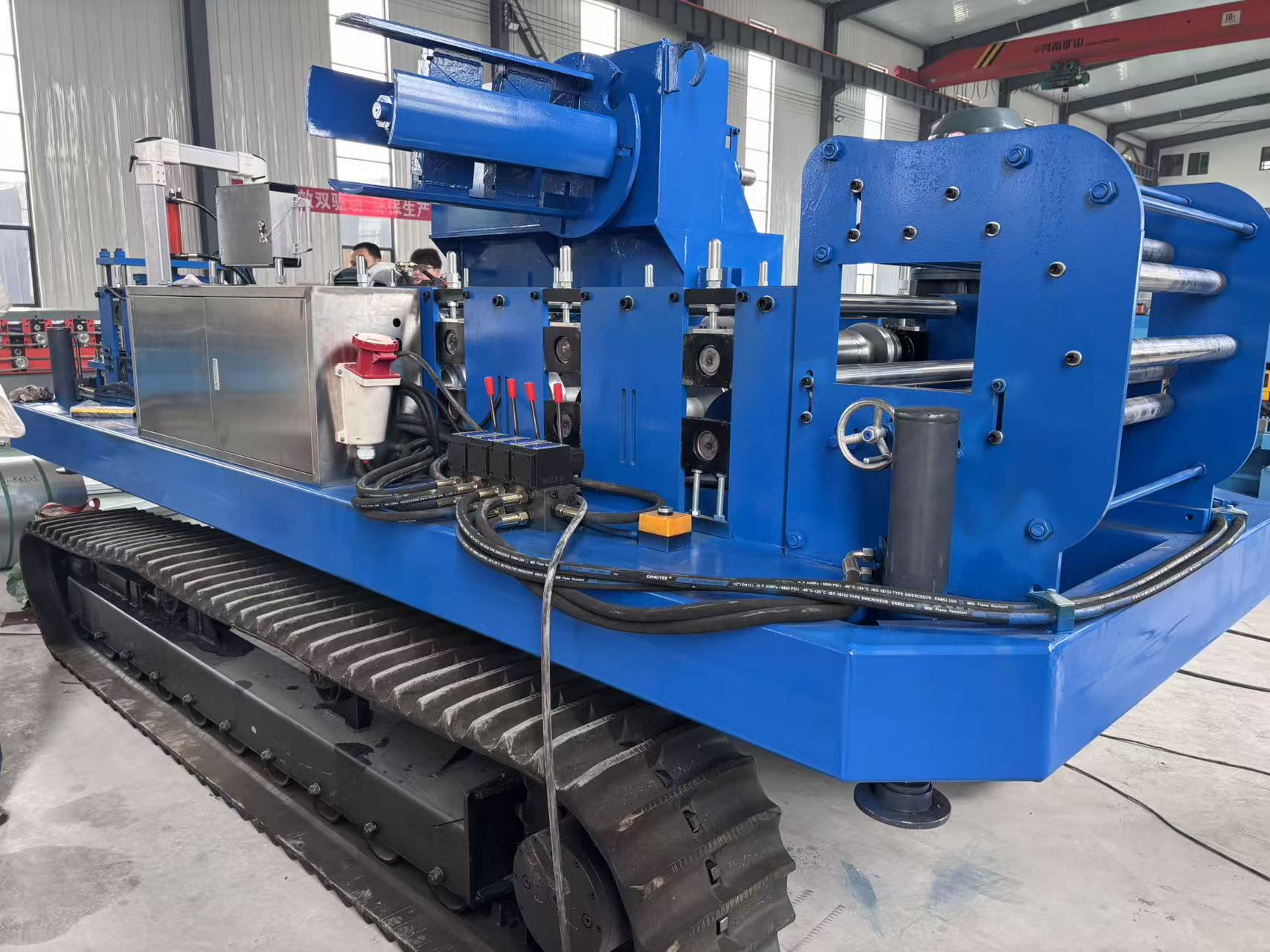

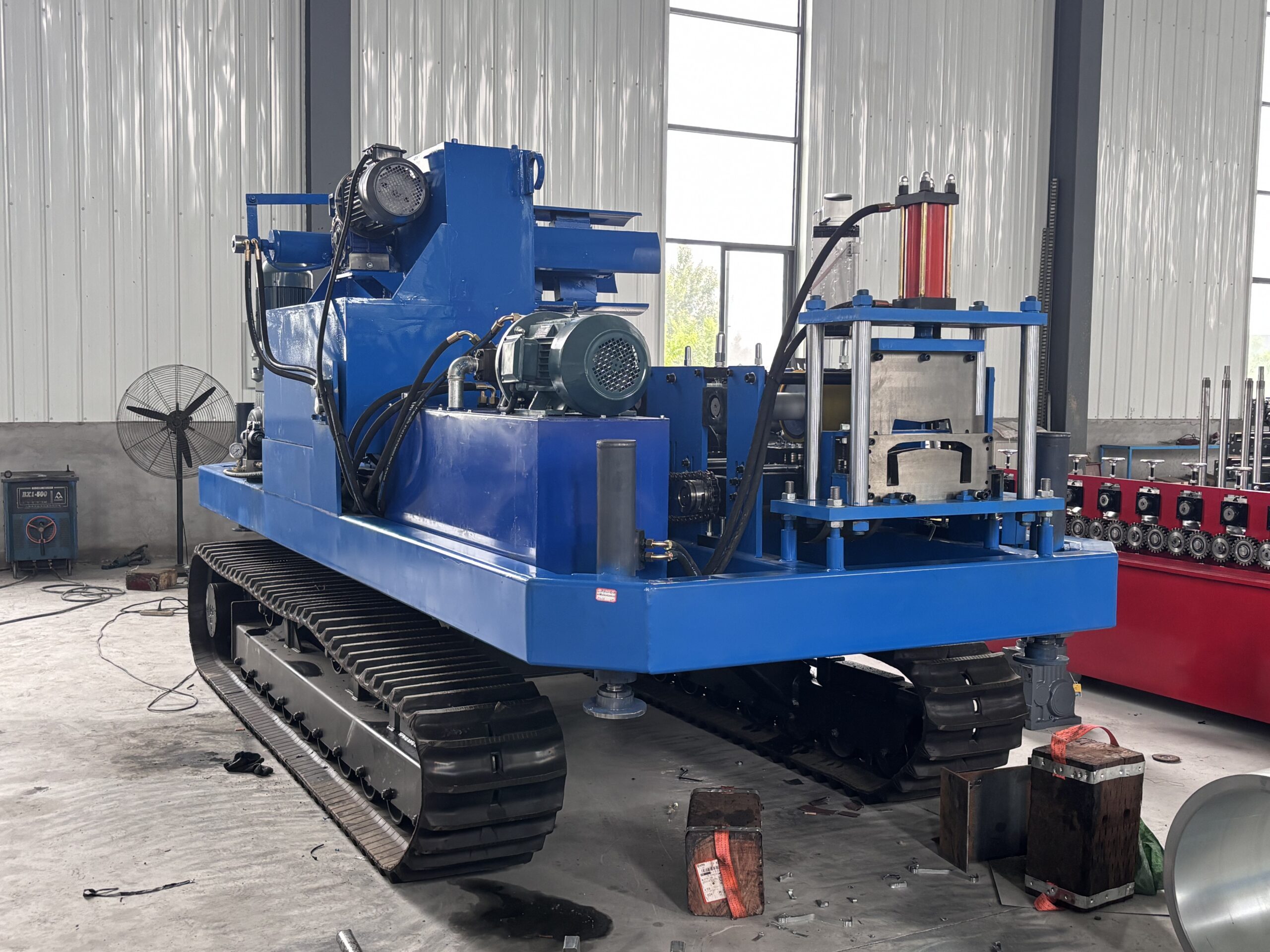

Abandoning the outdated welding and assembly processes required for traditional hydroponic troughs, this equipment brings the "production line" to your project site or processing workshop, achieving fully automated integrated operation from feeding, leveling, roll forming, to length cutting. It offers immediate use and maximum flexibility.
Application Scenarios: Full-Scenario Coverage, Activating Space Value

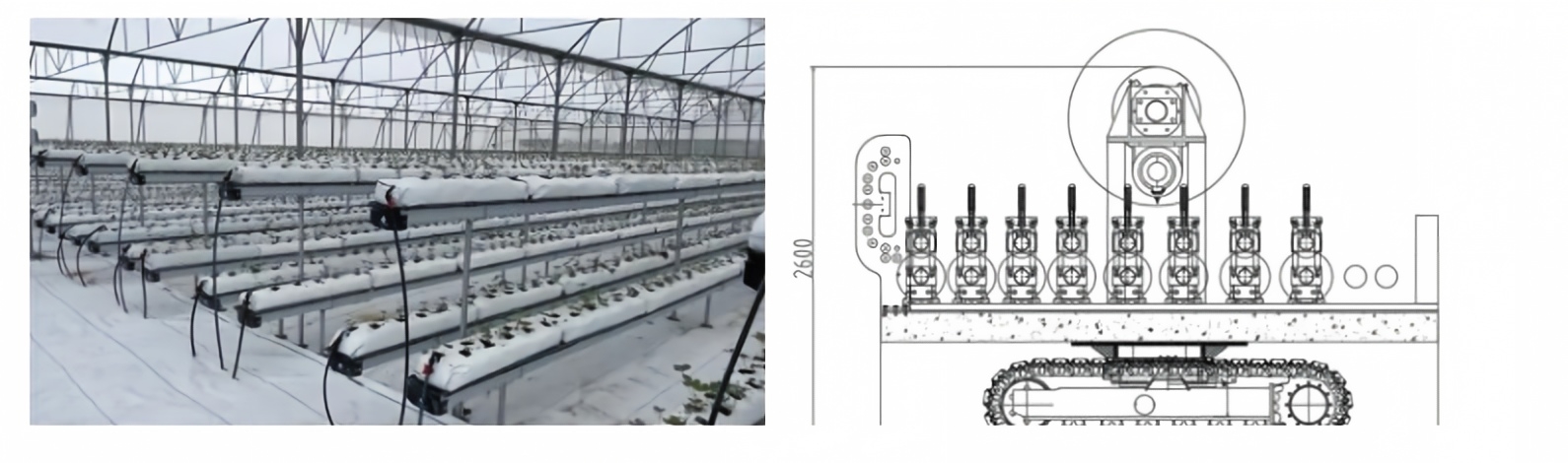

Scenario 1: "Aerial Gardens" in Plant Factories and Greenhouses
In large-scale multi-span greenhouses, the hanging troughs produced by this equipment can be used to create aerial cultivation systems above walkways and between columns. Growing lettuce and strawberries not only doesn't affect ground operations but also increases yield per acre several times over, making it a cost-effective and efficient tool for ultra-high-density planting.
Scenario 2: "Customized Veins" for Container Plant Factories
Container space is extremely valuable. This equipment can be customized to a specific length of non-standard water troughs according to the width of the container, leaving it ready to use immediately. It perfectly adapts to the three-dimensional transformation of container planting racks, providing a standard module for mobile agriculture going global.
Scenario 3: "Art Installations" for Family Farms and Ecological Restaurants
Want a green wall that's both edible and beautiful? The exquisite hanging troughs produced by this equipment, combined with an automatic circulation system, can easily create strawberry hanging canopies or herb planting walls. It is both a high-yield micro-farm and a technologically advanced eco-friendly interior design, making it a must-visit for tourists.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.6-0.8mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|

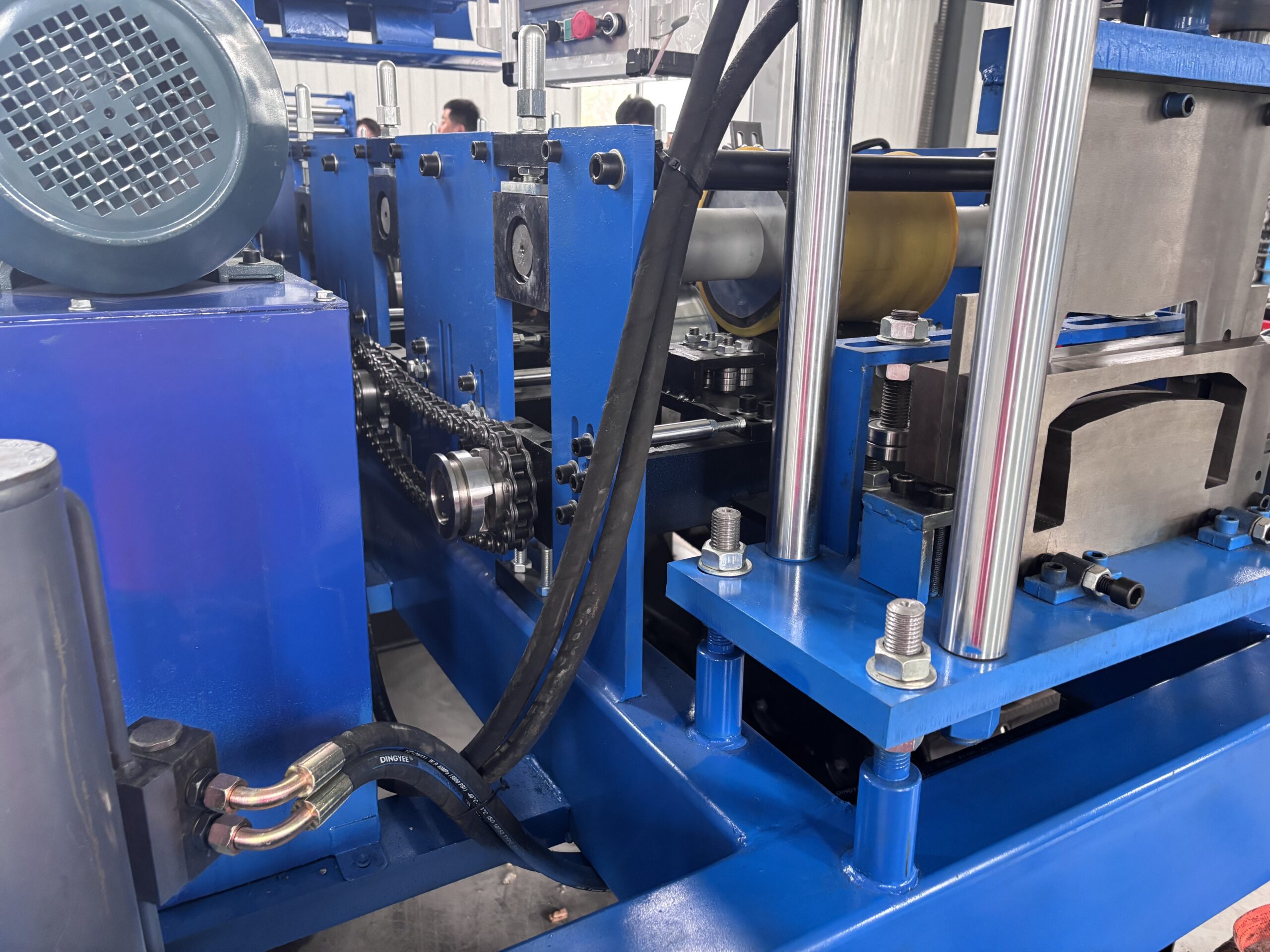

Chain transmission
|
|||
|
Dimension(L*W*H)
|
8500*1000*1200(customize)
|
|||
|
4Weight
|
4 T
|
|||
|

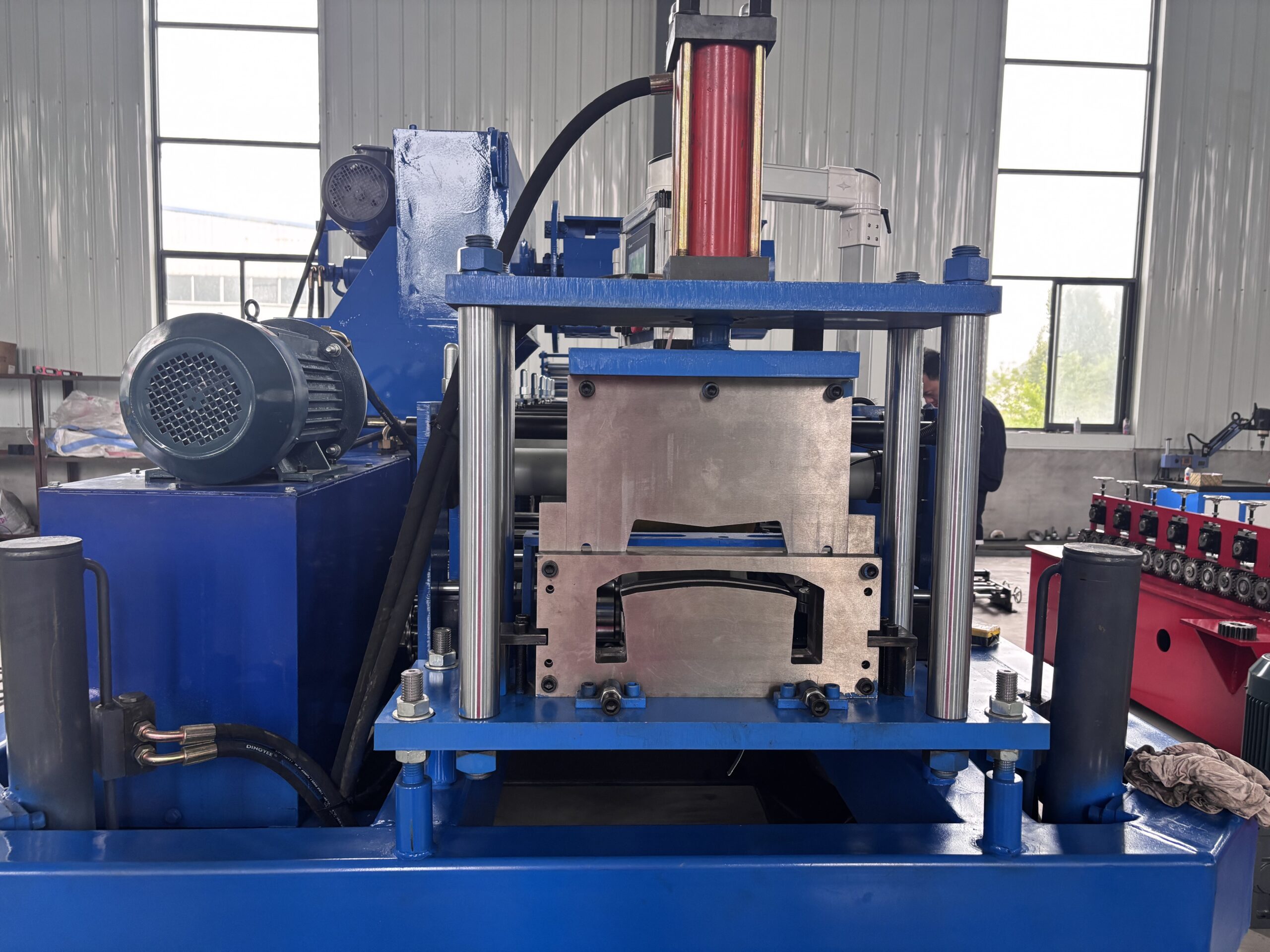

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
11KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

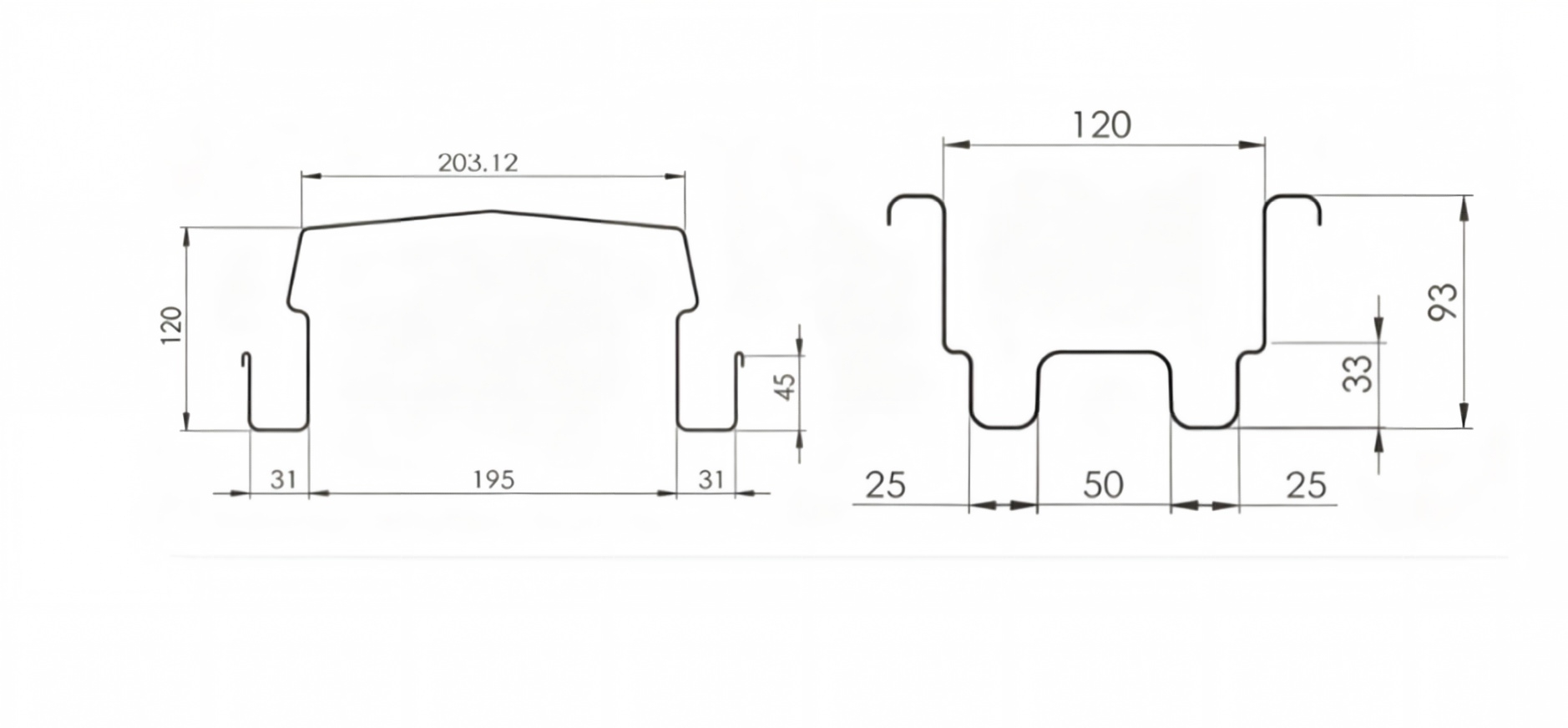

Pattern Diagram:
Key Features: Cutting-Edge Technology, Addressing Pain Points
1. Flexible "Variable Cross-Section" Capability:
Different plants require customized trough shapes. We utilize a high-precision, heavy-duty frame and a quick-change mold system. Whether it's an A-shaped deep V-shaped trough suitable for shallow nutrient flow in leafy vegetables, or a trapezoidal nutrient solution circulation trough suitable for fruiting vegetables, the same equipment can easily switch between different shapes simply by changing the roller mold, meeting diverse planting needs.
2. High-Precision Nutrient Solution Flow Guidance Design:
The success of hydroponics hinges on water. The bottom of the trough formed by the equipment features a precise flow guide design or a completely flat base treatment, which not only greatly enhances the rigidity of the trough but also ensures that the nutrient solution flows without dead corners or water accumulation, completely eliminating the risk of root rot and ensuring that every drop of nutrient solution precisely reaches the roots.
3. Military-Grade Anti-Corrosion and Durable Process:
Designed for the harsh environment of high humidity and high salinity in greenhouses, the forming machine performs zero-damage rolling pressing on the surface of the board. With the selection of raw materials such as galvanized and aluminum-zinc-magnesium coated steel, the corrosion resistance of the finished suspended water trough is more than three times that of ordinary welded water troughs, and its service life easily exceeds 15 years, almost matching the lifespan of the greenhouse.
4. Minimalist Modular Suspension Structure:
The finished trough ends come with built-in suspension buckles or pre-punched holes, eliminating the need for on-site welding. It is directly connected via wire suspension or buckles. This makes assembling the vertical cultivation rack as simple as building with blocks, significantly reducing labor installation costs and increasing space utilization by 200%.
contact us：
The hydroponic hanging trough molding machine sells more than just machinery; it sells a form of "on-demand" productivity. It eliminates logistics costs, shortens customization cycles, and unlocks planting value in every inch of vertical space.
Mastering core molding technology gives your vertical agriculture project a head start. Inquire now for customized hydroponic equipment solutions.
