Popular and Beautiful Glazed Tile Roll Forming Machine

The Popular and Beautiful Glazed Tile Roll Forming Machine is a specialized equipment for cold bending roll forming. The core is to continuously roll metal coils such as color coated sheet, galvanized sheet, and aluminum zinc coated sheet into metal roof tiles with traditional glazed tile arc, ripple, drip eaves, tile and other antique shapes through multiple precision rolling mill sets.

Core Features:

1.High precision antique molding
The rolling mill is made of high wear-resistant alloy steel such as Cr12MoV, which has been quenched and finely ground (hardness HRC58-62), and subjected to 12-30 progressive rolling processes. The curvature error of the tile is less than 0.3 °, and the forming accuracy reaches ± 0.1~0.5mm, perfectly replicating the three-dimensional texture and details of traditional glazed tiles.
2.Efficient automated production
PLC+touch screen+servo control, one click setting of length and quantity, automatic feeding, forming, cutting, counting, daily production of 3000-5000 pieces, efficiency 4-5 times higher than manual/semi mechanical, scrap rate<1.5%.
3.Stable, durable, and low maintenance

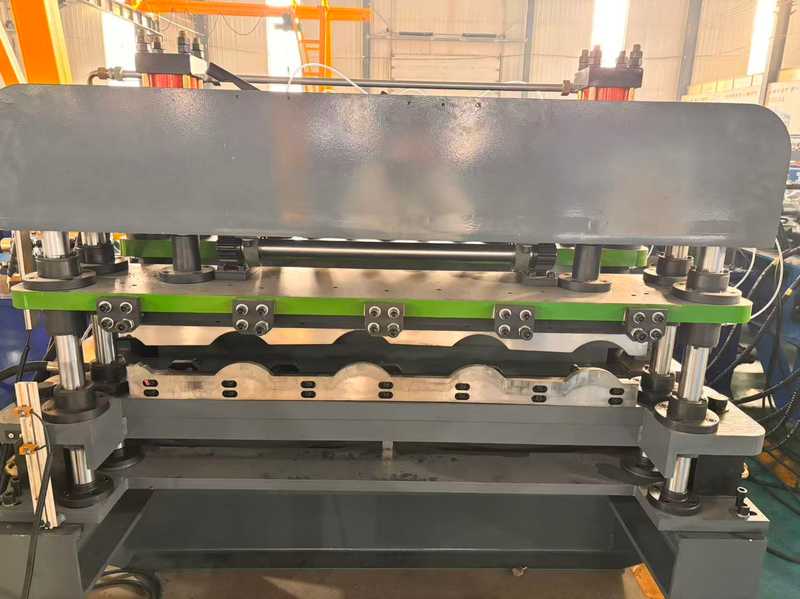

The frame is welded with H-shaped steel, and the main shaft is plated with hard chromium with a diameter of 70-75mm, which is resistant to deformation and fatigue; Equipped with hydraulic shearing, air cooling/oil cooling system, it can operate continuously for 7 × 24 hours with few faults and long service life.
4.Multi purpose and flexible changeover of one machine
Modular split structure, quick replacement of molds; Some double-layer models (such as 840/850) have a dual tile design, suitable for board widths of 300-500mm and various types of boards, covering mainstream market demand.
5.Superior performance of the finished product
The metal glazed tiles produced are lightweight (60% lighter than clay tiles), have high strength, waterproof, wind resistant, corrosion-resistant, and have a lifespan of 30-50 years. They are easy to install and have a construction period shortened by 40%.

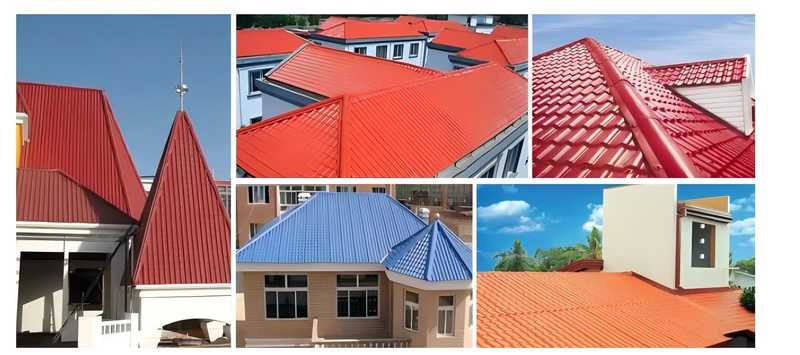

Application scenarios:

• Antique architecture and cultural projects
Temples, Taoist temples, ancestral halls, antique streets, ancient city walls, renovation of historical districts, cultural and tourism towns, museums, and roofs of antique garden buildings.
• High end residences and villas
Chinese/European style detached villas, townhouses, quadrangle houses, and homestay roofs, balancing aesthetics and durability.
• Commercial and Public Buildings
Featured hotels, clubs, resorts, scenic area gates, pavilions, galleries, exhibition halls, antique commercial complexes.
• New Rural Areas and Landscape Renovation
Rural revitalization, farmhouse renovation, characteristic villages, and government style enhancement projects, replacing traditional clay tiles.
• Other decorative roofs
Roofs of buildings such as factories, warehouses, carports, canopies, sunrooms, and guardrails that require antique/aesthetic effects.

Product Attributes :

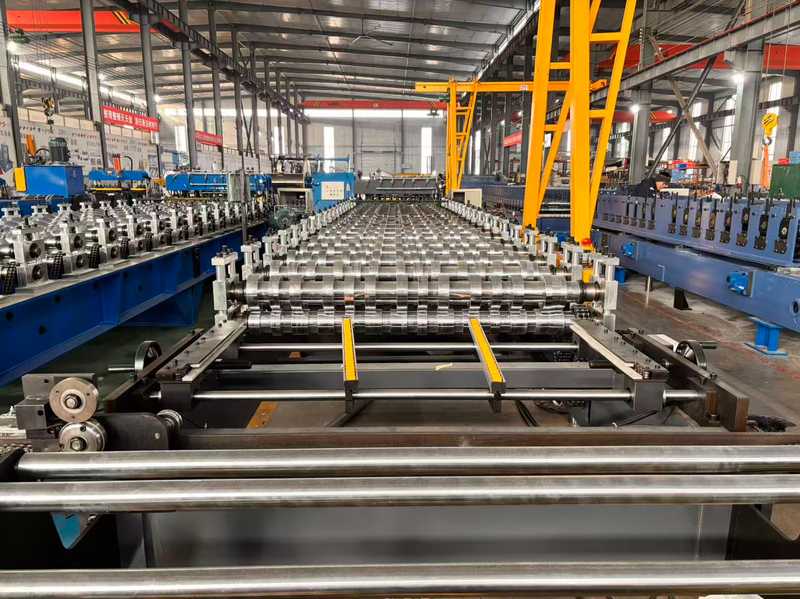

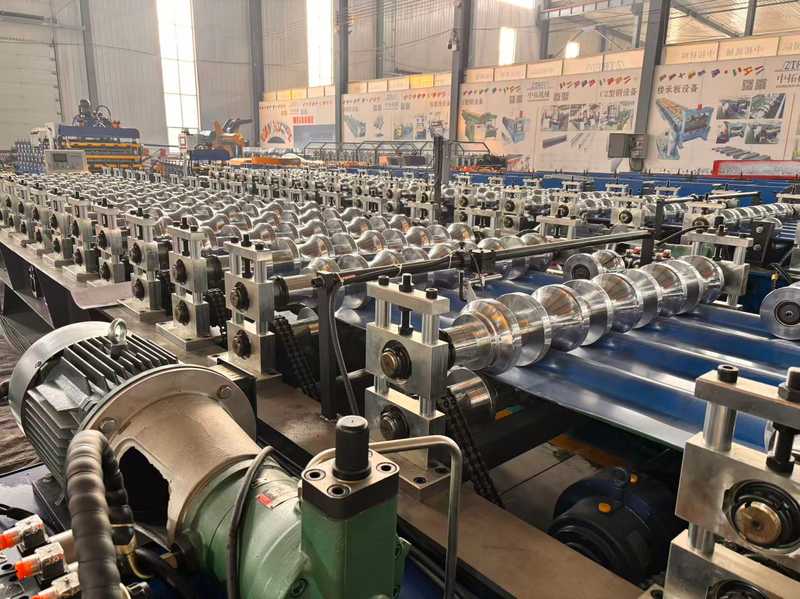

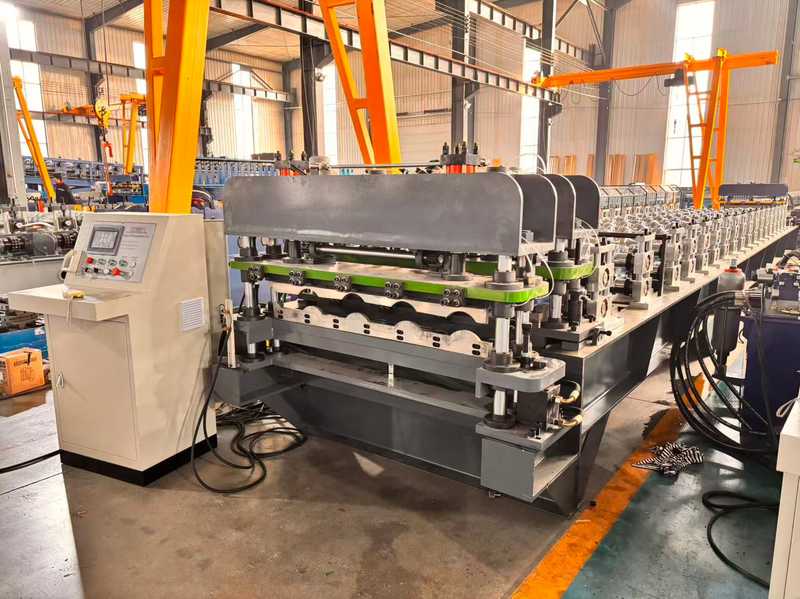

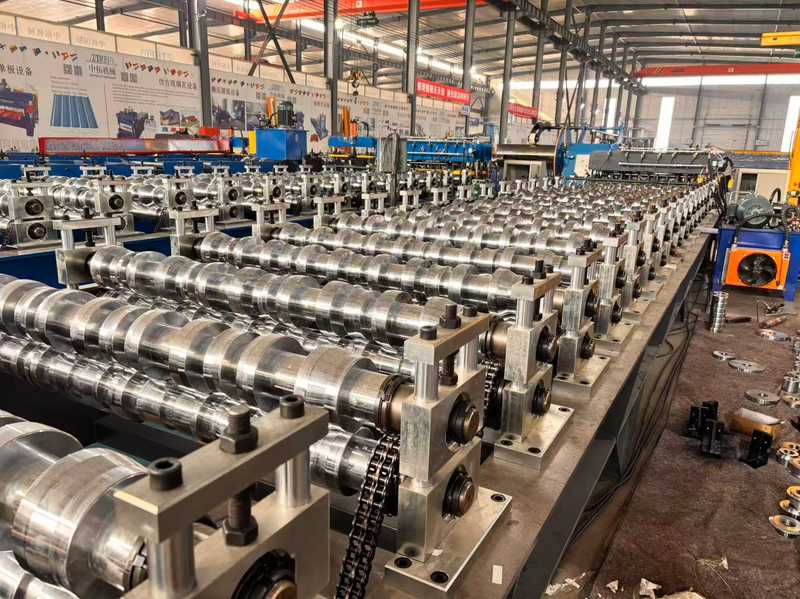

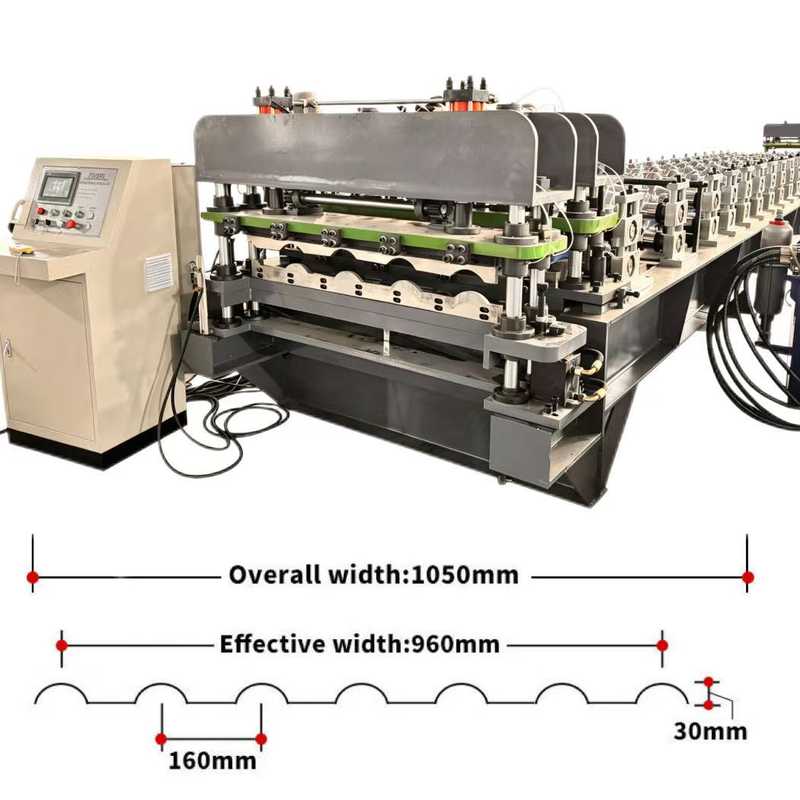

Machine photo:
