Drywall Stud and Track Roll Forming Machine C Channel Forming Machine

The Drywall Stud and Track Roll Forming Machine C Channel Forming Machine is a specialized equipment used for producing light steel keels, widely used in the construction field, mainly for manufacturing partition wall systems and ceiling keel frames. TheDrywall Stud and Track Roll Forming Machine C Channel Forming Machine processes strip steel into complex cross-section keel profiles such as C-shaped, U-shaped, T-shaped, and L-shaped through cold rolling forming technology. Its core components include roller shaft components, with the main shaft material usually being 45 # round steel. The rollers are heat-treated, precision machined, plated with hard chrome, and mirror polished to ensure forming accuracy and durability. The Drywall Stud and Track Roll Forming Machine C Channel Forming Machine adopts a PLC control system, which has the characteristics of high efficiency and high degree of automation. The production speed can reach 6-13 meters per minute. One machine can produce various sizes of keels, such as C-shaped, U-shaped, T-shaped, L-shaped, etc., to meet different building needs. Equipped with high-precision PLC electronic control system and frequency converter, production data can be input through touch screen operation to automatically meet production requirements.

Application scenarios：

• Partition wall system:

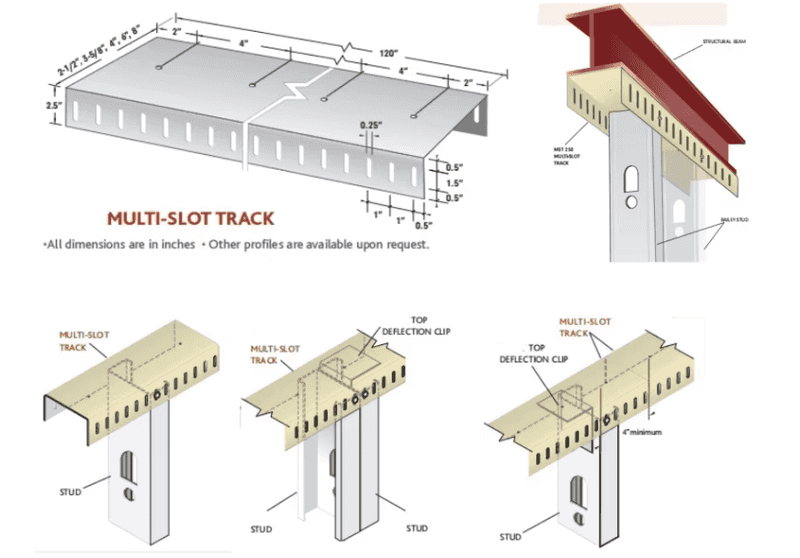

  C-shaped keel serves as the vertical keel frame, while U-shaped keel is used for perimeter fixation.
• Ceiling system:

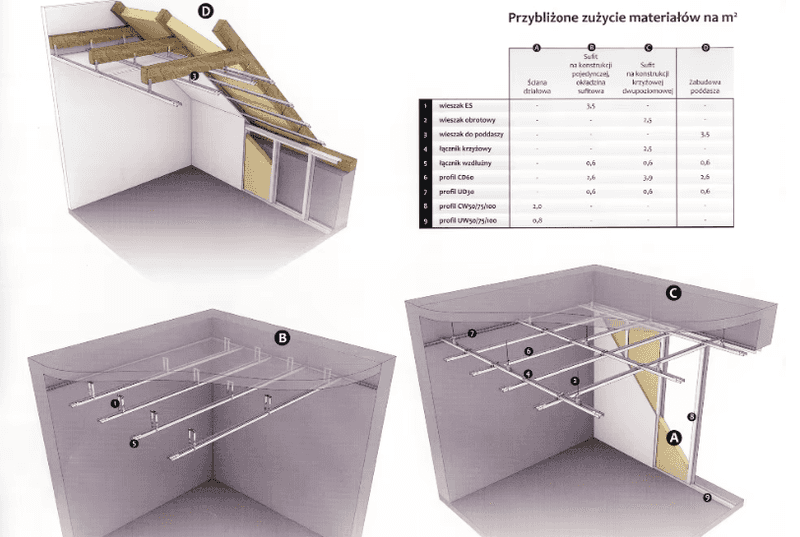

  T-shaped keel serves as the main keel in the ceiling keel frame, while L-shaped keel is used to connect the ceiling skeleton with the four interior walls or column walls.
• Special requirements:
  Load bearing or non load bearing keels can be produced according to building needs, suitable for large-area ceilings that require additional weight.


Main advantage：

The advantages of the Drywall Stud and Track Roll Forming Machine C Channel Forming Machine mainly include high efficiency, high degree of automation, and multifunctionality. The machine adopts a PLC control system, which can achieve efficient and automated production, with a production speed of 6-13 meters per minute. In addition, the machine can produce different types of keels according to building requirements, such as C-shaped, U-shaped, T-shaped, and L-shaped keels, to meet diverse building needs. In terms of specific applications, the partition keel machine is mainly used to produce light steel keels, painted keels, and card keels, and is widely used in the manufacturing of non load bearing partition wall systems and ceiling keel frames in the construction field. These products have the characteristics of lightweight and high strength, space saving, fast installation, cost reduction, excellent sound and heat insulation performance, fire and moisture resistance, and environmental sustainability. For example, light steel keel partition walls have become a common non load bearing partition structure in modern buildings due to their lightweight, high strength, fast installation, and environmental sustainability. The installation process is simple and fast, and there is no need for complex wet operations during the construction process, greatly shortening the construction period and reducing labor costs. In addition, light steel keel partition walls also have good sound insulation, thermal insulation, fire resistance, and moisture resistance, and can be used stably in various environments.

Product Attributes ：

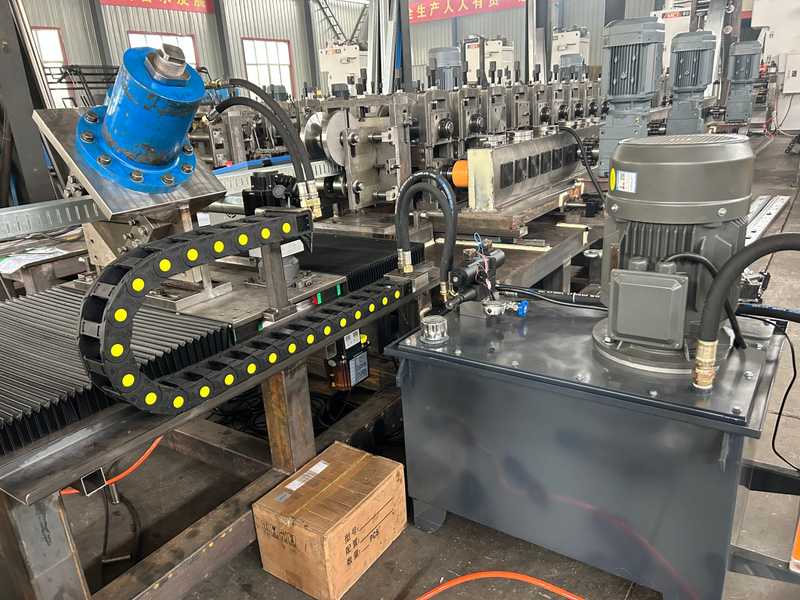

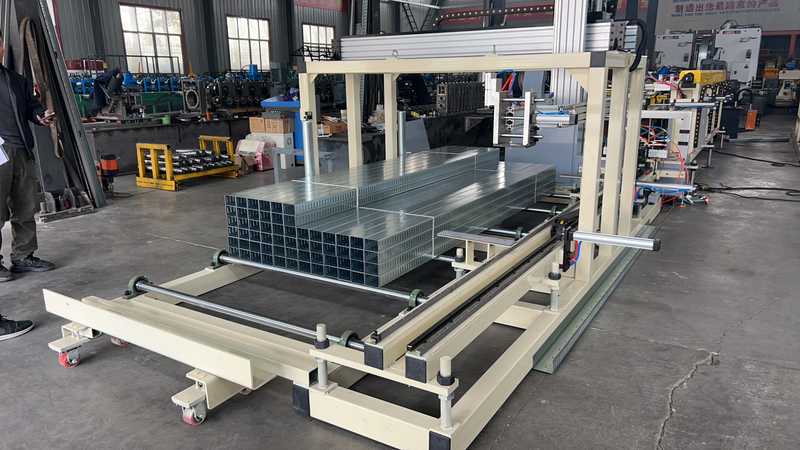

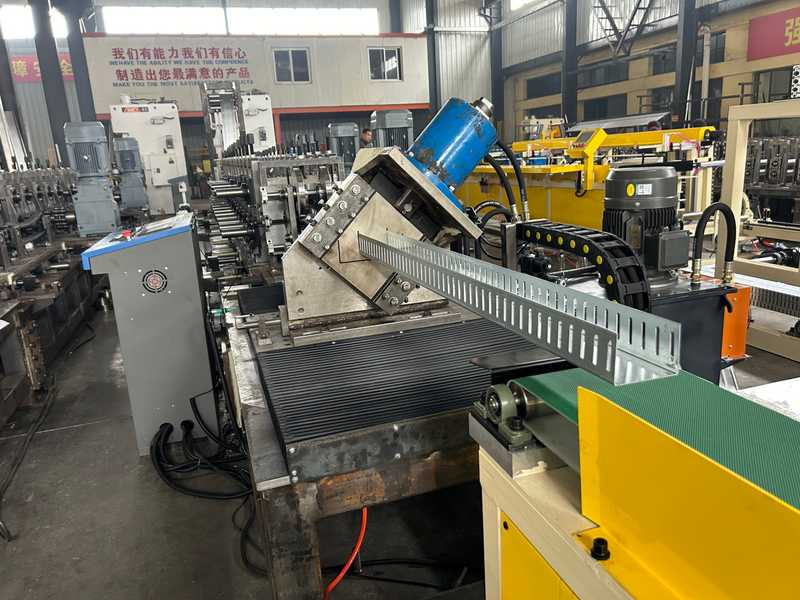

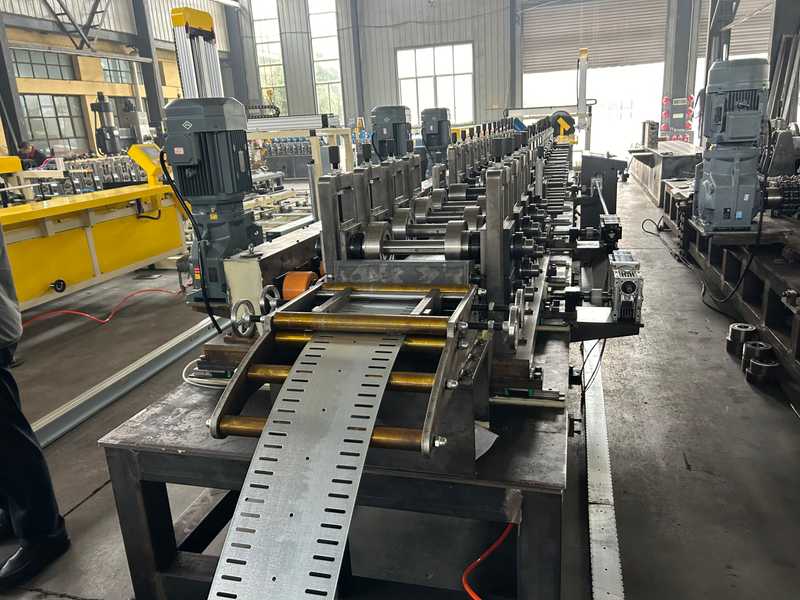

Products Display：
