Corrugated Roofing sheets roll forming machine

2025-06-30
Corrugated roll forming machine

{"source_type":"douyin_beauty_me","data":{"filterId":"","product":"retouch","alias":"Vb51jcXltVzEnvBKRuKiSFtZd9NarpT5kUNz2RIaRzN5am1rYnM4S6u3HRz2RGb3IErNZhjQGErqtKji11zM0x49zEFdomQ5mcc4jo9Ls8/Sh2sSpxpIx51QuG9UQBmbWE+DJobZHah65DV7+sOCKIenrTJqQg1oISg4BA182ifoPOw4v7UwIfK4mrBUHA9rsHu4YJiOmJdm0+CZxNj5WlpAfmdaVv4B9ISFR0IhTB0tQrT7UMOL7oemUuE4V6H2oEHpI7nlUbZ6RcKIF87GdEGFDXVoHO6quPs5Yep/QImlh1y4JQ6jrzY9eAIdzUD73BHwp53jvo4bTDoiqZekAw==","pictureId":"3751BDC9-E581-40DA-86C0-CAA671E7EA7F","stickerId":"","imageEffectId":"","effect_type":"tool","capability_extra_v2":{},"effect_id":"edit","playId":"","activityName":"","appversion":"12.4.0","infoStickerId":"","enter_from":"enter_launch","capability_key":["edit"],"os":"ios"}}

Here is the working video of this machine for everyone to watch:

Product Description：

In the field of contemporary architecture, the perfect integration of aesthetics and functionality has become the mainstream trend in design. In this context, curved roof tiles are rapidly becoming the preferred solution for architects due to their unique artistic expression and excellent engineering performance. This streamlined roof design not only endows the building with an elegant visual rhythm, but also achieves efficient rainwater diversion through a scientific corrugated structure. Its drainage efficiency is improved by more than 40% compared to traditional flat roof structures. However, traditional handmade methods face many challenges: single piece production takes up to 3-5 hours, the curvature deviation often exceeds 5mm, and the labor intensity of workers is high, with a yield rate of less than 70%, which seriously restricts the large-scale application of corrugated roof tiles.

The emergence of the corrugated Roofing sheets roll forming machine has completely changed this situation. This device drives industry transformation through three core technological breakthroughs: firstly, the fully automated production line compresses the production time of a single piece to less than 2 minutes, increasing efficiency by 150 times; Secondly, a servo control system is adopted to ensure that the molding accuracy is controlled within ± 0.3mm, far exceeding the manual production standard; More importantly, through modular mold design, the same equipment can quickly switch between producing various types of curved tiles with a radius of 300-5000mm, achieving true flexible production. These technological advantages not only solve the quality bottleneck of traditional craftsmanship, but also enable the mass construction of complex curved roofs, providing key technical support for the development of modern architecture towards "form liberalization and functional integration".

Features and advantages:

Aesthetics:
Corrugated roof tiles have a smooth sense of curves and layers, which can enhance the taste and grade of buildings.
Durability:
Using aluminum zinc coated steel plate as the substrate, it has properties such as temperature resistance, low temperature resistance, light resistance, and aging resistance, with a service life of over 50 years.
Environmental friendliness:
All materials used are harmless and environmentally friendly, meeting the requirements of green environmental protection.

Easy construction:
Metal roof tiles are lightweight, easy to cut and bend, easy and fast to construct, suitable for various building structures.

Application scenarios:

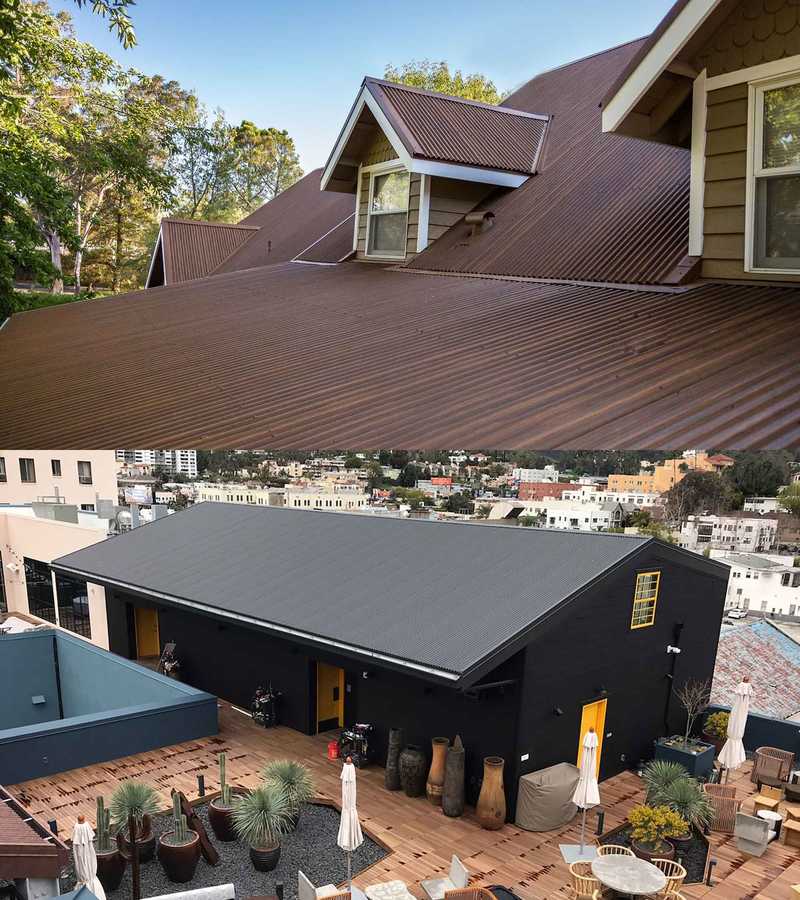

The application scenarios of corrugated roof tiles are very wide, mainly including government buildings, schools, hospitals and other public facilities, as well as residential buildings such as villas and self built houses. These places usually require a roofing material that is both aesthetically pleasing and practical, and curved roof tiles perfectly meet these needs.

1.Government buildings:
Government office buildings, courts, etc. require a solemn and classic roofing material, and the antique style and durability of corrugated roof tiles make them an ideal choice.
2.School:
School buildings require a safe, environmentally friendly, and easy to maintain roofing material. The lightweight and corrosion-resistant properties of corrugated roof tiles make them very suitable for school use.
3.Hospitals:
Medical institutions such as hospitals require a corrosion-resistant and easy to clean roofing material, and the characteristics of corrugated roof tiles make them the preferred choice for hospital buildings.
4.Villas and self built houses:
These residential buildings pursue both aesthetic and practical roofing materials, and the diverse colors and easy installation characteristics of corrugated roof tiles make them widely used in these places.

Product Attributes ：

1.Formed Material	PPGI,GI,AI	Thickness:0.15- 0.5mm Width:914mm/1450mm(customized)
2.Decoiler	Hydraulic automatic decoiler	5T/10T/15T

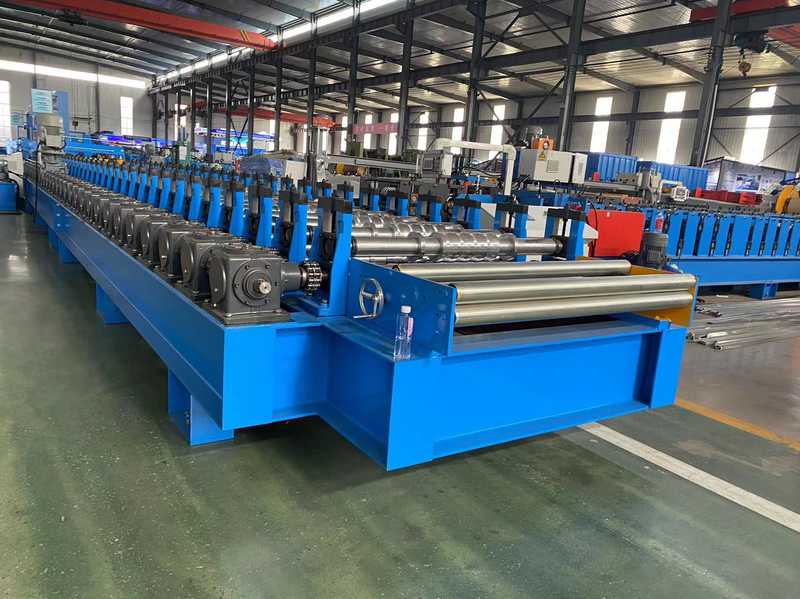

3.Main body	Roller station	20 rows(As your requirement)
	Diameter of shaft	80mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Gear box transmission
	Dimension(LWH)	1050016501400 mm(customize)
	Weight	15T

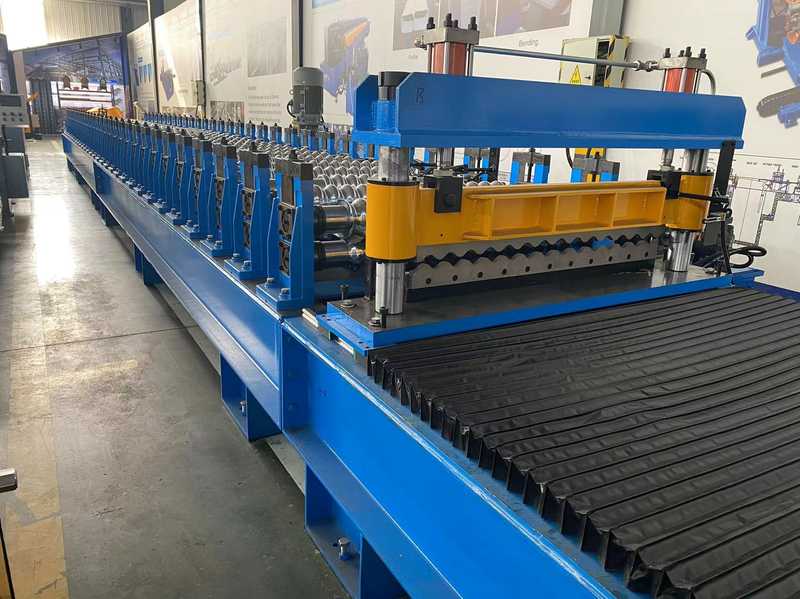

4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	5.5KW
	Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	30-40 m/min	The speed is adjustable
