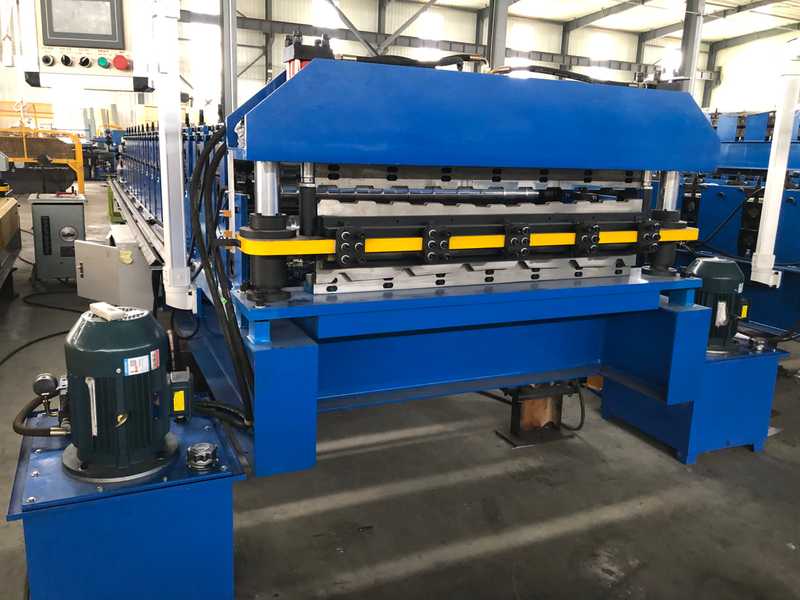

High Quality Automatic Double Layer Metal Sheet Color Steel Roof Roll Forming Machine
In today's rapidly developing construction industry, roof tiles, as the "outerwear" of buildings, not only need to have excellent waterproof, wind resistant, and thermal insulation performance, but also need to balance aesthetics and durability. Double layered roof tiles, with their unique advantages of "double-layer protection, high efficiency and energy saving", have become the preferred choice for buildings such as villas, villas, industrial plants, and municipal venues. However, the traditional production of double-layer roof tiles relies on manual splicing and semi mechanized operations, which not only have low efficiency and high costs, but also often result in uneven product quality due to insufficient precision, leading to a large number of missed orders.
Nowadays, the emergence of fully automatic double-layer roof tile machines has completely broken this dilemma! It takes "efficiency, precision, intelligence, and energy conservation" as its core, realizing fully automated production of double-layer roof tiles from raw materials to finished products, allowing you to easily handle large-scale orders and seize market high ground with high-quality products!
Pattern drawing:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI,GL
|
Thickness:0.3-0.8mm Width:1000mm/1250mm(As per profile drawing)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
16+18 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
10500*1600*1600(customize)
|
|||
|
Weight
|
11.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Efficiency surpasses traditional craftsmanship! Daily production exceeds 5000 pieces, no need to worry about order delivery
The traditional production of double-layer roof tiles involves manual splicing and step-by-step molding. A skilled worker can produce up to 200-300 pieces per day. When faced with large orders, they can only rely on additional manpower and overtime to catch up. This not only increases labor costs but also often delays delivery times, affecting customer trust.
Our fully automatic double-layer roof tile machine, with its "full process automation" design, maximizes production efficiency:
1. Rapid production:
Using servo motor drive and precision transmission system, 8-12 double-layer roof tiles can be produced per minute (adjusted according to tile specifications). Under a daily 8-hour working system, the output can reach 3800-5700 pieces, which is 15-20 times more efficient than traditional manual labor!
2. Continuous operation:

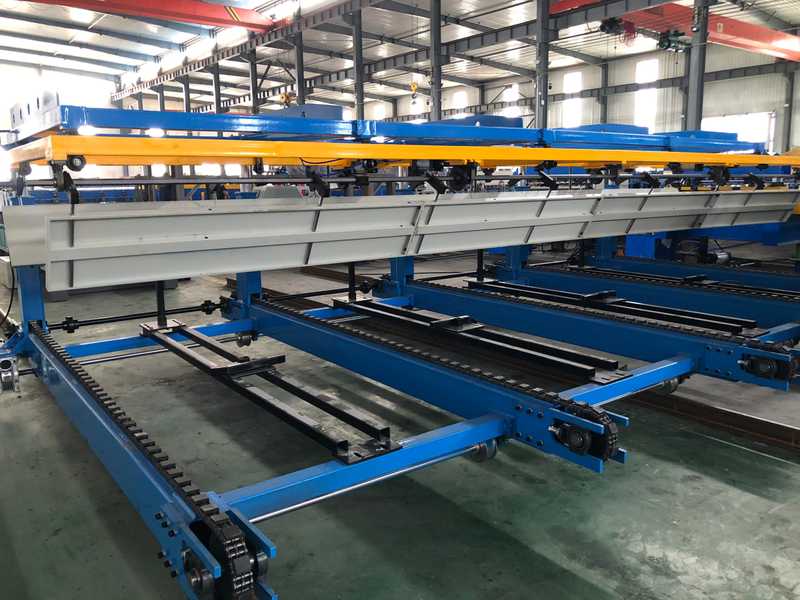

Supports 24-hour uninterrupted production, equipped with automatic feeding machines and finished product stacking machines, without manual intervention. Raw materials are automatically transported, formed, cut, and output, and one person can easily manage 2-3 devices, greatly reducing labor costs.
3. Quick changeover:
For double-layer roof tiles of different specifications (length 1.5m-3m, width 300mm-600mm, height 20mm-50mm), simply adjust the parameters on the touch screen and complete mold debugging within 5 minutes without waiting for downtime, flexibly responding to multiple batches and specifications of orders.
With it, whether it's bulk purchases for real estate projects or scattered orders for decoration companies, you can deliver quickly and no longer have to worry about "tight delivery times and low output"!
Packing And Shipping：
