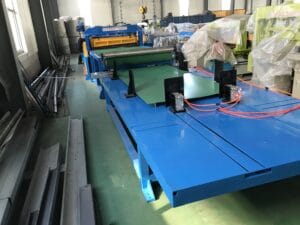

0.2-1.5mm Slit and Cut to length machine for PPGI GI coil
This 0.2-1.5mm Slit and Cut to length machine for PPGI GI coil is used to cut the galvanized steel coil,color steel coil and stainless steel coil,the length and quantity can be set up as request.
We also can customize the machine as the thickness and width of the material that customer wants to cut.
The suitable raw material:
1.Raw material:Color steel/Prepainted steel,Galvanized steel,Stainless steel
2.Raw material thickness:0.2-1.0mm or as customer's request
3.Raw material width:1250mm or as customer's request
The working layout of the 0.2-1.5mm Slit and Cut to length machine for PPGI GI coil:
Decoiling--Feeding&Straightenning--Shearing--Conveyor--Automatic stacker
Technical specifications of the machine
Part 1: Manual decoiler/Hydraulic decoiler
- Capacity:5 tons or as customer's coil weight
- Suitable coil width:1250mm or as customer's request
- Coil inner diamter:470-530mm

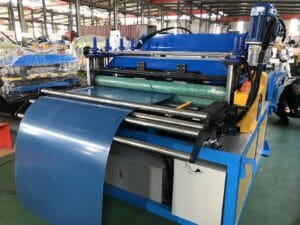

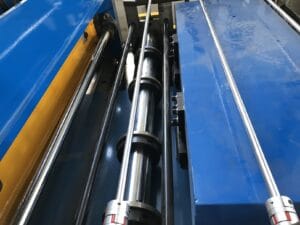

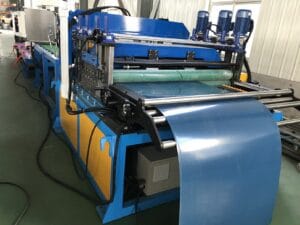

Part 2:Leveler/straightener
- Leveling roller:11 pcs,up 5 down 6,with one pair of feeding roller
- Shaft diameter:70mm
- Shaft material:45# steel with quenched treatment
- Slitting blade:4 pcs
- Transmission type:By gear
- Motor power:4 kw

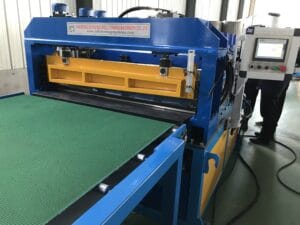

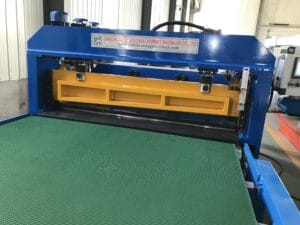

Part 3:Hydraulic shear
- Shearing type:Hydraulic shearing
- Blade material:Cr12 with quenched treatment
- Hydraulic power:3kw

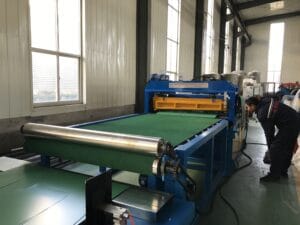

Part 4:Conveyor
- Length:3 meters
- Working method:Penumatic
Part 5:Automatic stacker
- Length:3 meters
- Structure: square pipe welded
