Below is a work flow video for you to watch：
Product Attributes :
1.Formed Material | GI | Thickness:0.4-0.8 mm | ||
2.Decoiler | Hydraulic automatic decoiler | Electric double head decoiler | ||
3.Main body | Roller station | 14 rows(As your requirement) | ||
Diameter of shaft | 50 mm solid shaft | |||
Material of rollers | 45# steel, hard chrome plated on the surface | |||
Machine body frame | Metal steel welded | |||
Drive | Gearbox transmission | |||
Dimension(L*W*H) | 5500*800*1200(customize) | |||
Weight | About 3 T | |||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
5.Power | Motor Power | 5.5 KW | ||
Hydraulic system power | 5.5KW | |||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
7.Control system | Electric Box | Customized(famous brand) | ||
Language | English(Support multiple languages) | |||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
18.Forming Speed | 40m/min(customized) | Speed is adjustable according to customer's request | ||
Product Description：

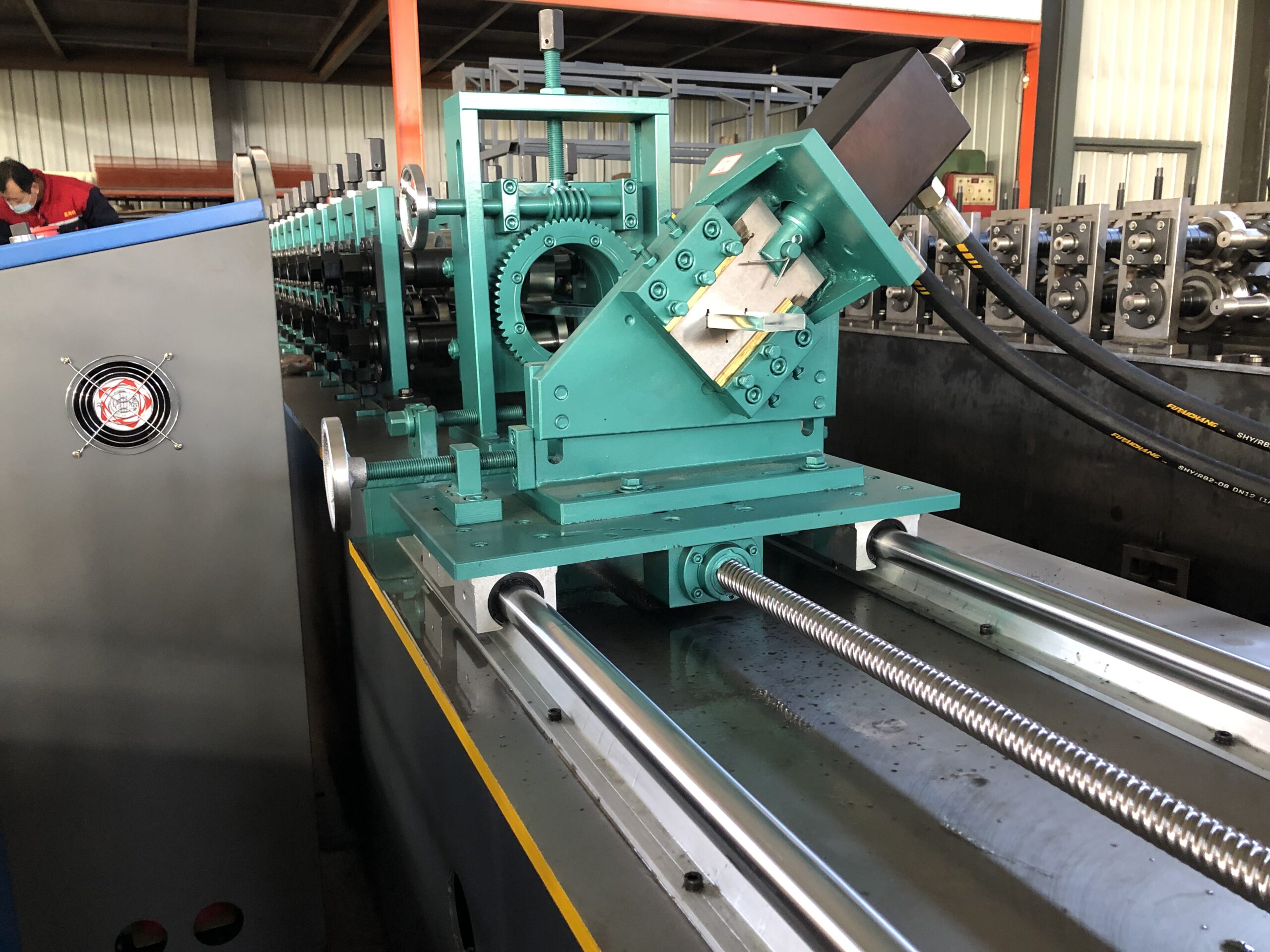

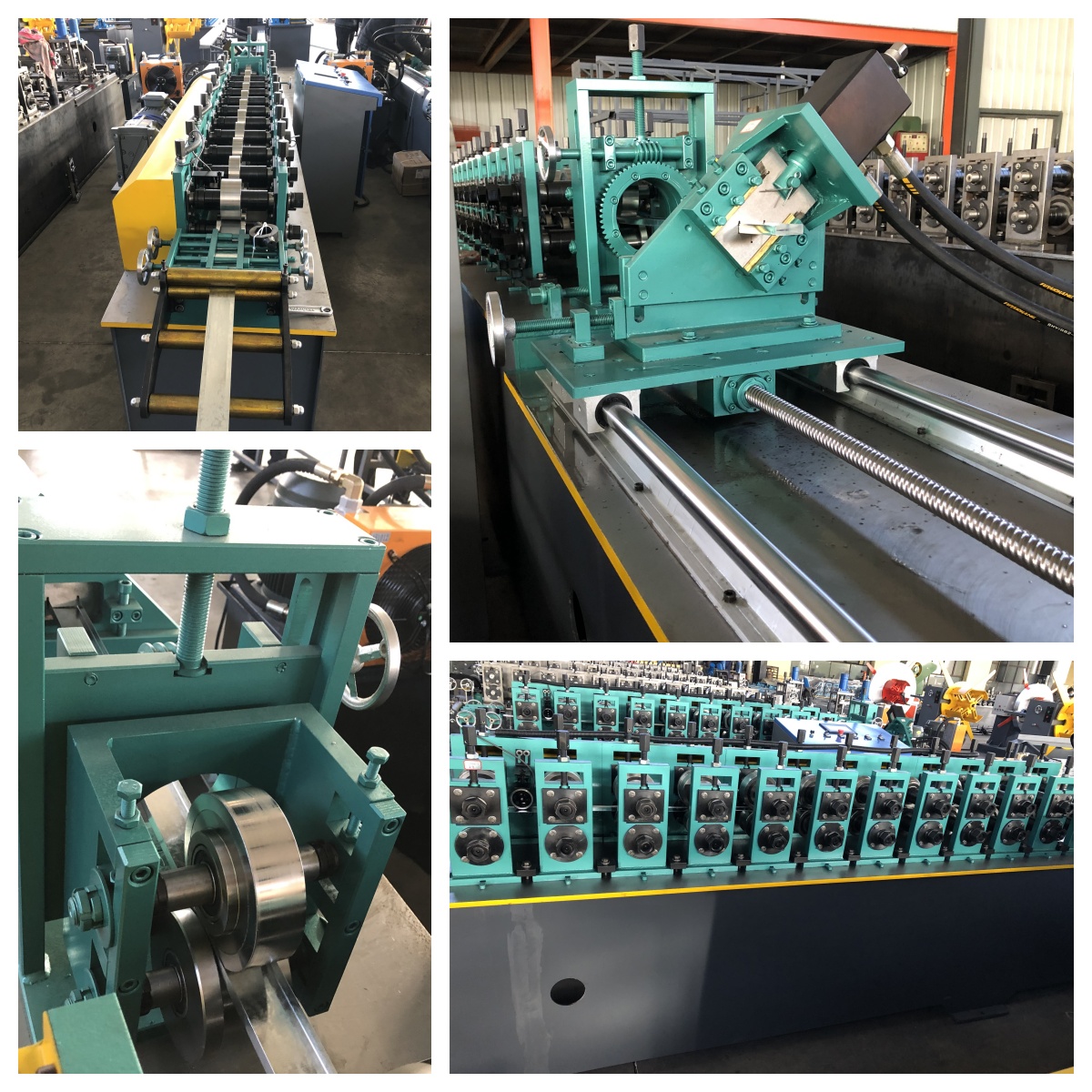

The U Shape metal profile light gauge roll forming machine is a specialized equipment for producing metal cross-sectional profiles through cold rolling forming process, mainly used in the manufacturing of non load bearing partition wall systems and ceiling keel frames in the construction field. This equipment uses strip steel as raw material and forms U-shaped and other complex cross-section keel profiles through continuous cold rolling. It is widely used in the production of light steel keels, painted keels, card keels and other products.
Main purpose：
The U-shaped keel machine is mainly used for producing U-shaped keels, which have the following specific applications in construction:
1.Non load bearing partition wall system:
U-shaped keel is used for the peripheral keel and ceiling of non load bearing partition wall system.
2.Ceiling keel frame:
U-shaped keel is used for the construction of ceiling frames, providing a stable support structure.
Machine features：
1.One time molding, fast mold lifting:
The U-shaped keel machine can achieve one-time molding with fast mold lifting speed, significantly improving production quality.
2.Apply corresponding strength pressure:
By applying corresponding strength pressure, the pressure resistance of the U-shaped keel is enhanced, ensuring its stability during use.
3.Multifunctional:
Various floor tiles, curbstones, and U-shaped pipe molds can be customized and processed according to needs, fully utilizing the multi-purpose function of one machine.
4.Small footprint:
The production process can be moved at any time, greatly improving work efficiency.

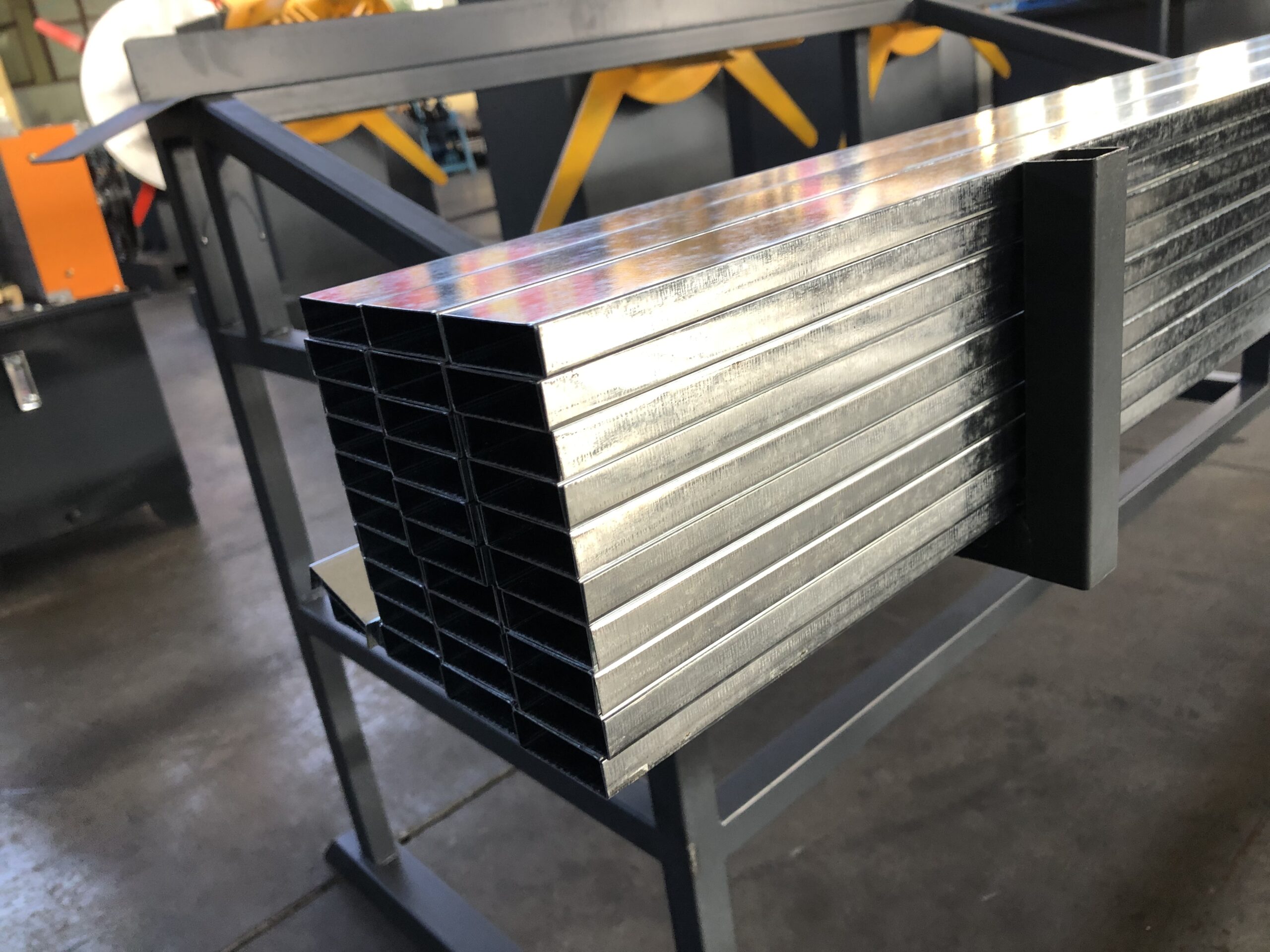

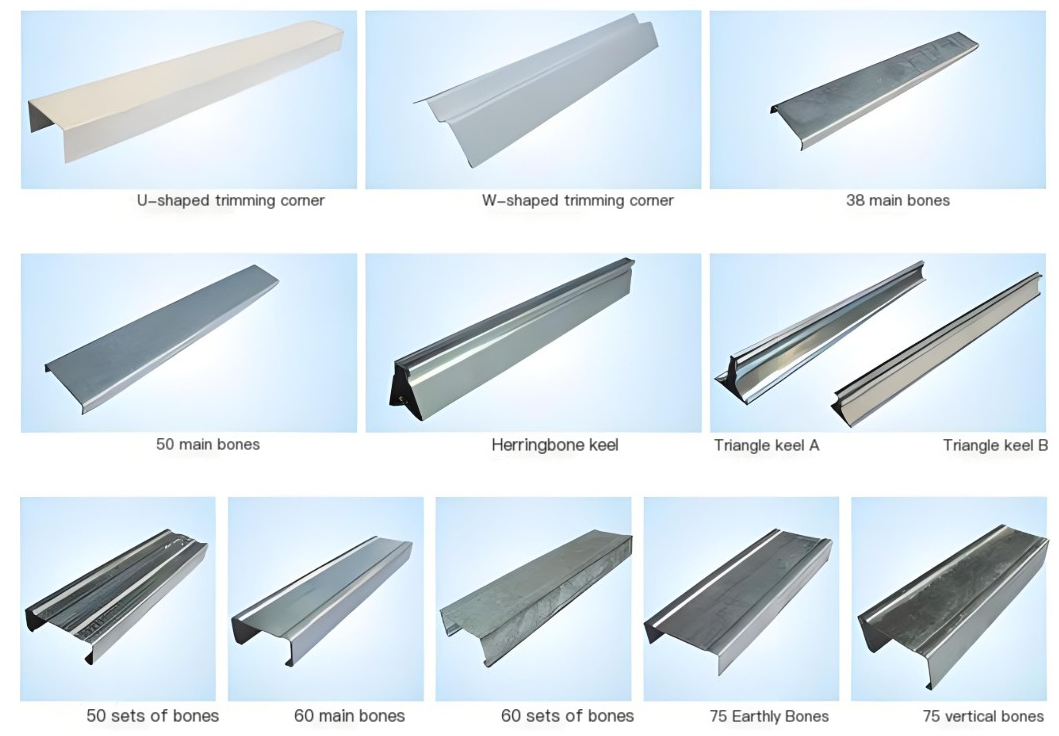

Products Display：
