U Channel Steel Stud Machine metal drywall stud and track roll forming machine
In the construction industry, the keel is an important component for building stable structures, and the performance of its production equipment directly affects the quality and construction progress of the building. From the framework construction of high-rise office buildings, to the ceiling engineering of large commercial complexes, to the laying of wall keels in residential buildings, every link cannot be separated from the supporting role of keels. The U Channel Steel Stud Machine has become a reliable assistant for construction practitioners due to its outstanding performance. It can not only meet large-scale construction needs with efficient production capacity of tens of meters per minute, but also accurately control the bending angle and dimensional tolerance of the keel through a CNC system, keeping the error within ± 0.5mm. At the same time, its intelligent mold changing technology can achieve rapid switching between different specifications of keel production, effectively improving production flexibility. Below, we will introduce the many highlights of the U Channel Steel Stud Machine.

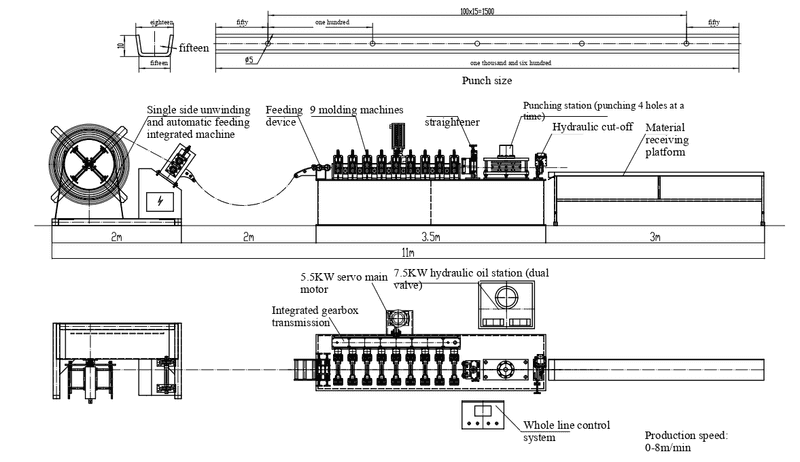

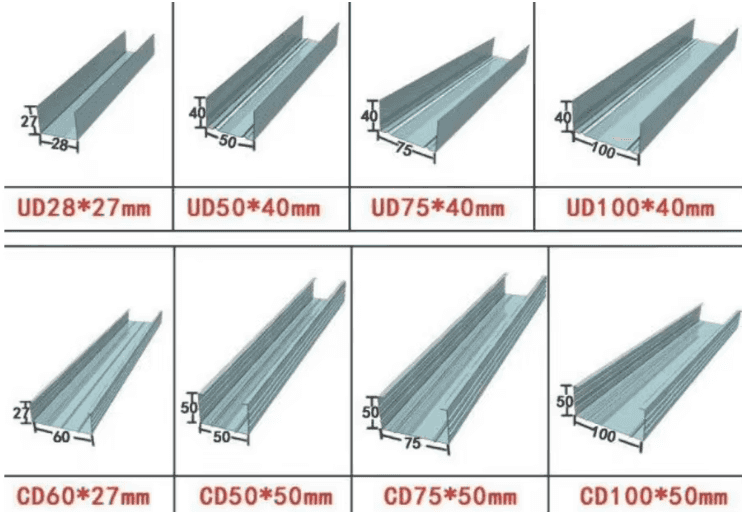

Profile drawing as below:
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.4-0.8 mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Electric double head decoiler
|
||
|
3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
50 mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|

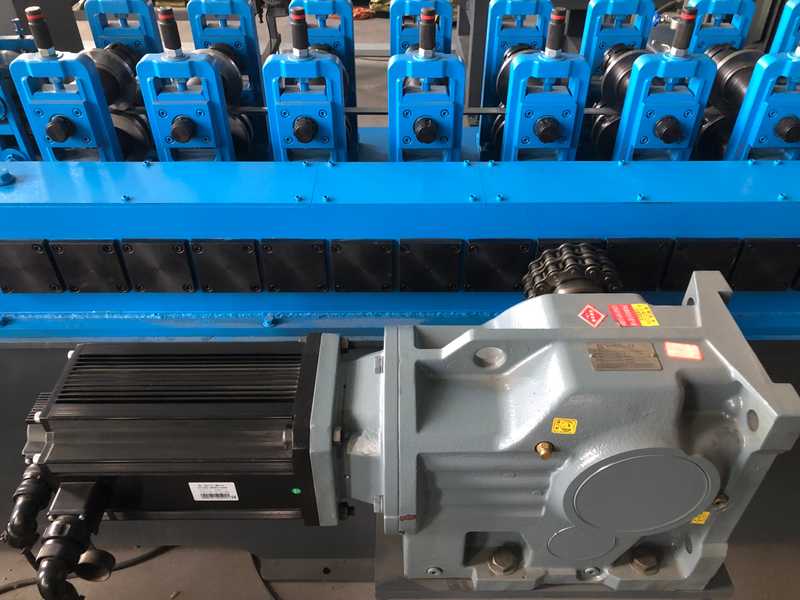

Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3 T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5 KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
40m/min(customized)
|
Speed is adjustable according to customer's request
|
||
Equipment Introduction
As a core production equipment in the field of architectural decoration, the U Channel Steel Stud Machine plays a crucial role in modern construction due to its efficient and precise manufacturing capabilities. It can quickly and stably produce U Channel Steel keelswith uniform specifications and reliable quality through advanced automated production processes. These U Channel Steel keelsare widely used in ceiling systems of factories, indoor partitions of office buildings, spatial partitions of offices, ceiling decoration of large and medium-sized shopping centers, ceiling design of shopping malls and shops, and shelf support of supermarkets and other indoor building decoration scenes. As a key component of the decorative keel structure, U Channel Steel keelsnot only provide solid support for building spaces, but also greatly enhance the aesthetics and practicality of interior decoration. They are one of the indispensable important equipment in the construction process of buildings.
Process flow

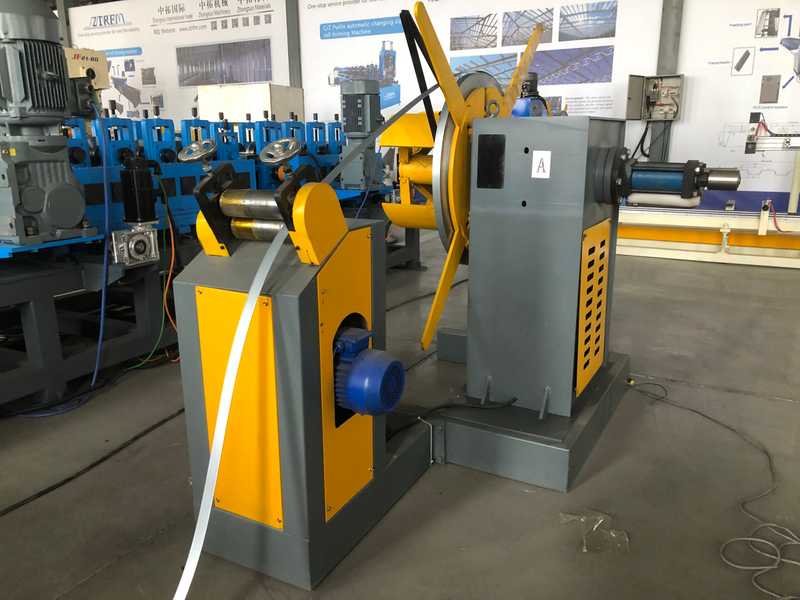

1.Material release process
Place the raw materials on the feeding rack, which has strong load-bearing capacity and can stably carry the material roll. For example, common material racks can carry material rolls weighing ≤ 2t, ensuring smooth supply of raw materials.
2. Feed correction
The raw materials are adjusted at both ends through a positioning plate to match the feeding width, and then guided by upper and lower circular rollers to ensure a smoother feeding process and precise positioning when entering the forming machine.

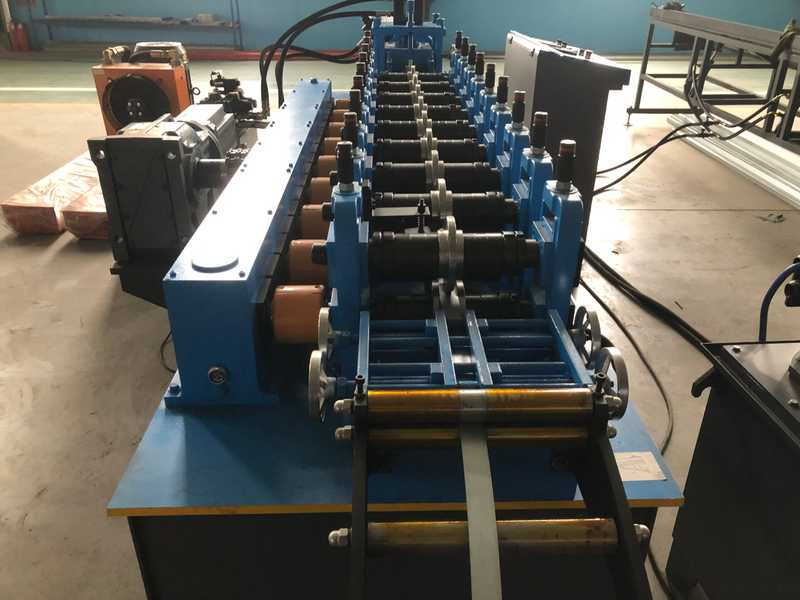

3.Roll forming
In the forming host, the raw materials are gradually rolled and formed through rollers with multiple forming passes. Taking the common 100U partition keel machine as an example, the forming process can reach 16 sets, and the roller material is excellent. For example, Gcr15 quenching is used to HRC58-60 °, and the raw material is precisely processed to gradually form the shape of a U-shaped keel.
4.Punching (if required)

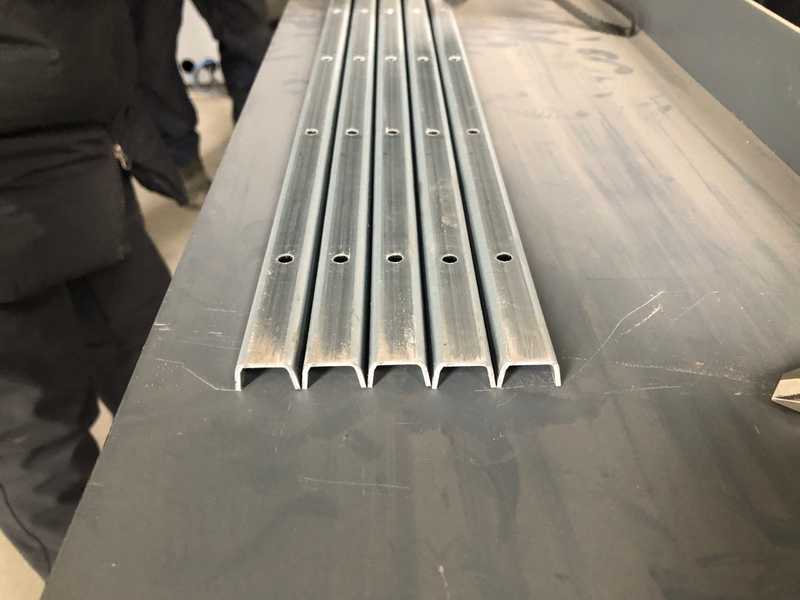

For U Channel Steel keelsthat require punching, the equipment is equipped with specialized punching molds. During the molding process, precise punching of reinforcement circular holes, elliptical connection holes, etc. can be carried out according to the set parameters to meet the installation requirements of different building projects.

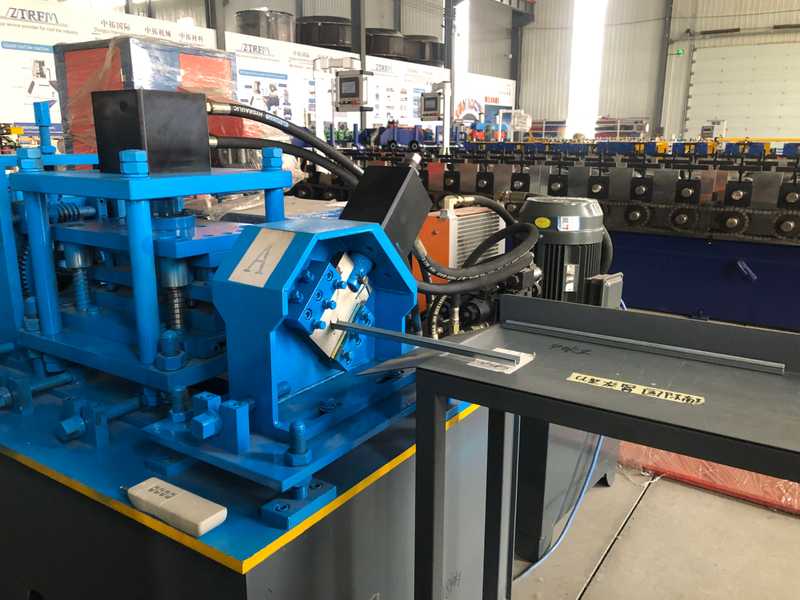

5.Cut off the school hole
The formed keel undergoes a hole calibration process to ensure accurate hole positions, and then is cut by a hydraulic cutting machine. The hydraulic cutting method can ensure a small cutting length tolerance, for example, controlled within plus or minus 2mm, and the cutting tool is made of high-quality materials such as Cr12MoV, with no burrs on the cutting edge and a long tool service life.

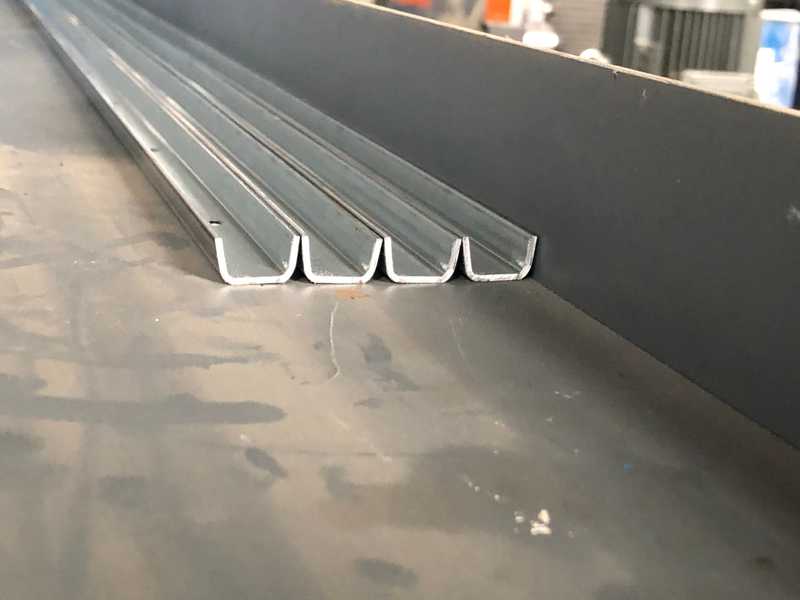

6.Discharge material
The cut U Channel Steel keel is collected through the receiving platform, which is equipped with rollers for easy keel discharge and subsequent handling. The entire process is efficient and orderly.
Widely used
1.Interior decoration field
In indoor building decoration, U-shaped partition keel is widely used in various places. Factories, office buildings, offices and other places use U Channel Steel keelsto construct ceiling and partition keel structures, providing stable support for indoor spaces and facilitating the installation of various decorative materials, enhancing indoor aesthetics and practicality.
2.Light steel keel composite wall
In the construction of light steel keel composite walls, U Channel Steel keelsare used as the main material for the top and bottom guide beams, and are assembled together with prefabricated components such as vertical columns produced by C-type keel machines to form prefabricated walls. This prefabricated wall has a high prefabrication and assembly rate, which is in line with the trend of vigorously developing prefabricated buildings in the country. It is suitable for load-bearing and non load-bearing walls of low rise and multi story buildings, as well as exterior walls and partitions of small high-rise, high-rise, and super high-rise buildings. With the pursuit of green, environmentally friendly, and efficient building methods in the construction industry, the application prospects of U Channel Steel Stud Machines in this field will be even broader.
