Below is a work flow video for you to watch：

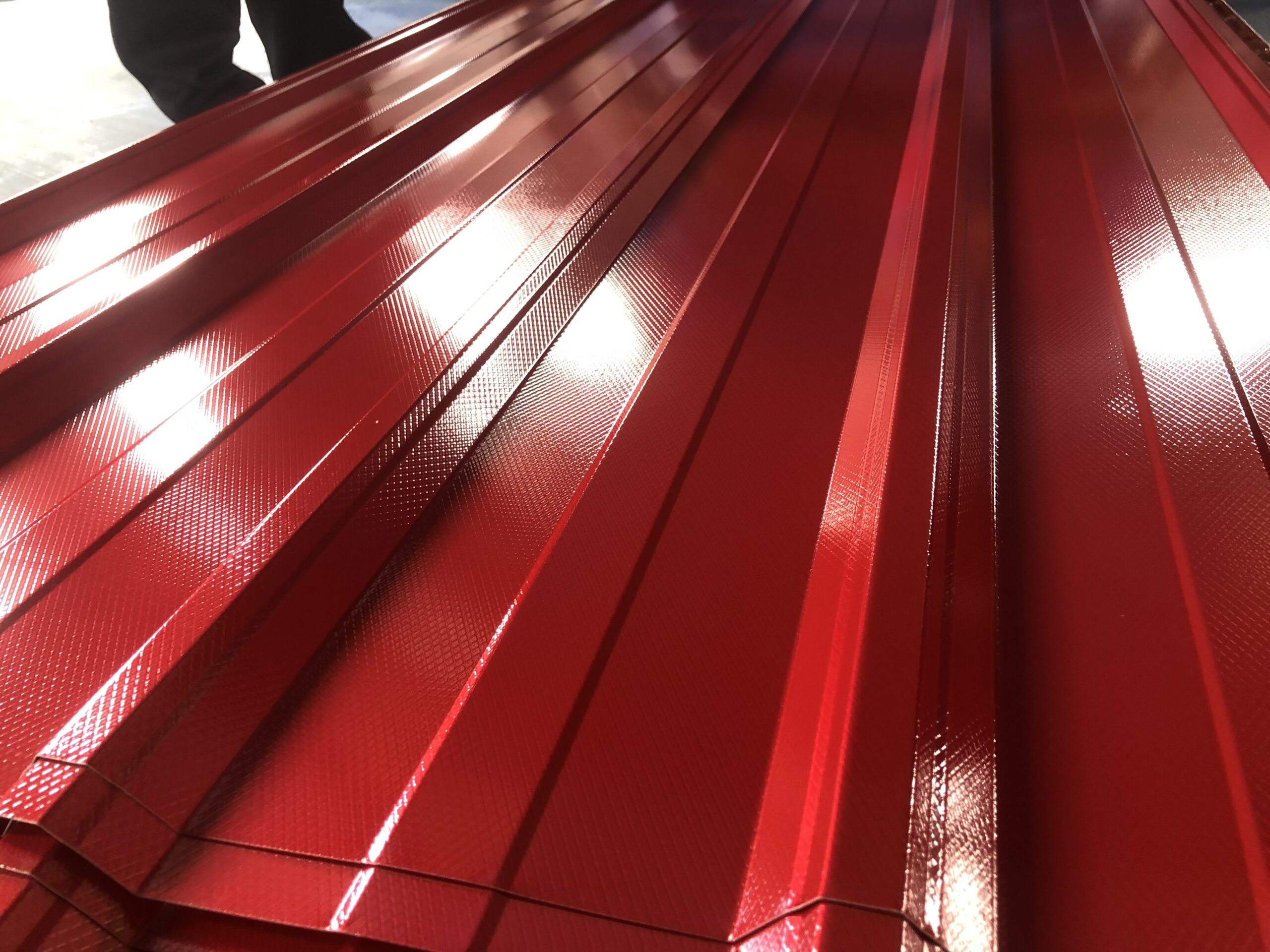

The main functions of the Zhongtuo Quanxin Thermal lnsulation Functional Tile Machine include thermal insulation, moisture insulation, corrosion prevention, noise reduction, and extended service life. Specifically, the Zhongtuo Quanxin Thermal lnsulation Functional Tile Mahine can effectively isolate external heat and moisture by covering a thin film on the surface of the color steel tile, thereby reducing indoor temperature fluctuations and humidity changes, and providing a more comfortable living and working environment. In addition, coated color steel tiles also have anti-corrosion properties, which can resist external environmental erosion and extend their service life.Zhongtuo Quanxin Thermal lnsulation Functional Tile,Using up to three layers of aluminum foil and rubber plastic board technology,UV thermal energy undergoes three refractions,the residual heat energy is absorbed by the rubber plastic cotton,realize the thermal insulation effect of traditional composite panels with a thickness of about 4mm, achieving a cost reduction of half overall.
Main functions and application scenarios :
- Thermal and moisture insulation:
Coated color steel tiles can effectively isolate external heat and moisture, maintaining stable indoor temperature and humidity. - Corrosion prevention:
Thin film coverage can prevent corrosion of color steel tiles due to long-term exposure to the outdoors, extending their service life. - Reduce noise:
Especially in rainy or hail weather, coated color steel tiles can significantly reduce noise and provide a more comfortable environment. - Aesthetics:
Film coverage can make the surface of color steel tiles smoother, enhancing the overall aesthetics of the building.

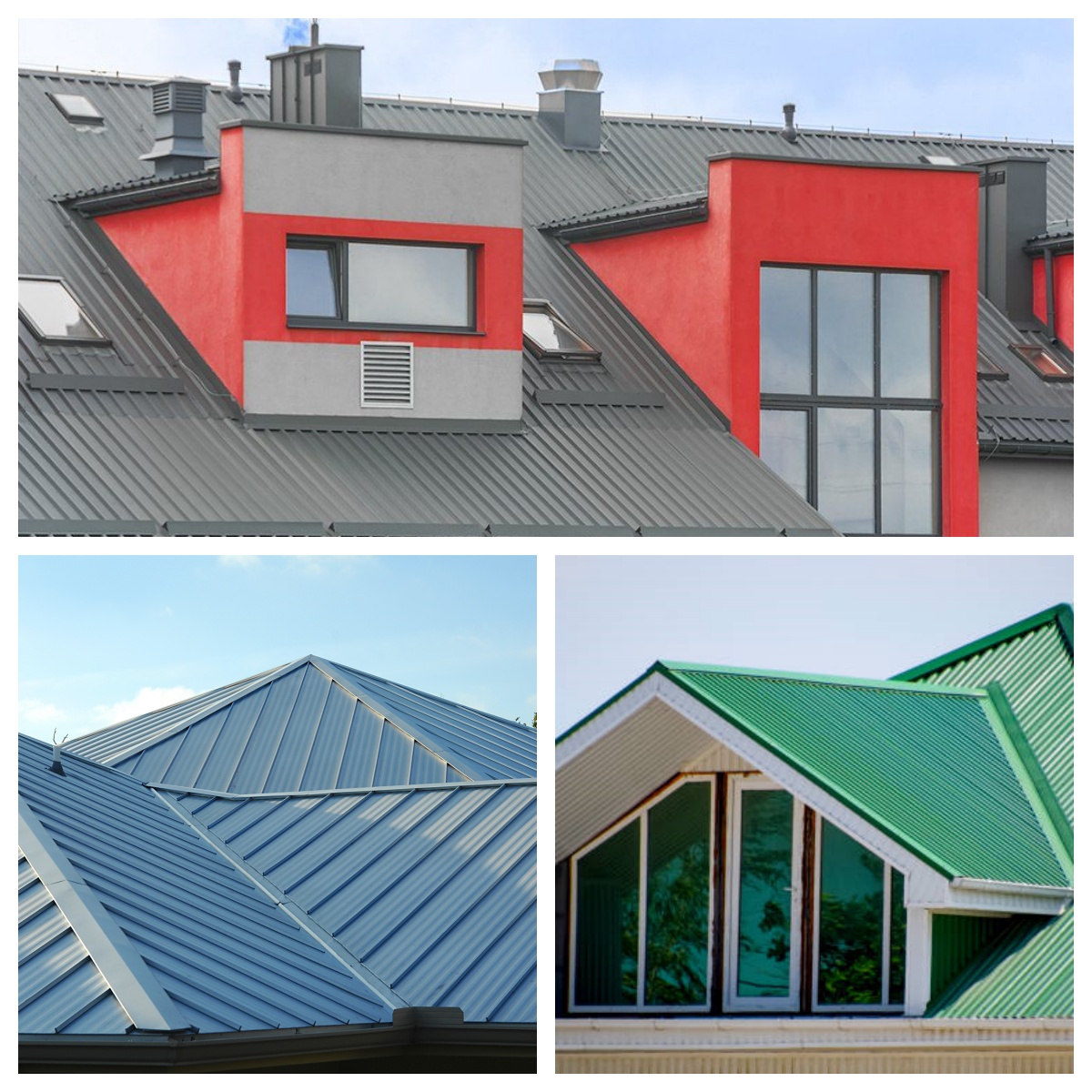

Widely used in various construction fields, including industrial plants, warehouses, cold storage, prefabricated houses, purification rooms, and air-conditioned rooms. Its lightweight and high-strength characteristics make the installation process simpler and faster, greatly shortening the construction period. In addition, laminated color steel tiles have a beautiful appearance and excellent waterproof performance, and are widely used in various types of building roofs and walls.
Product Attributes :

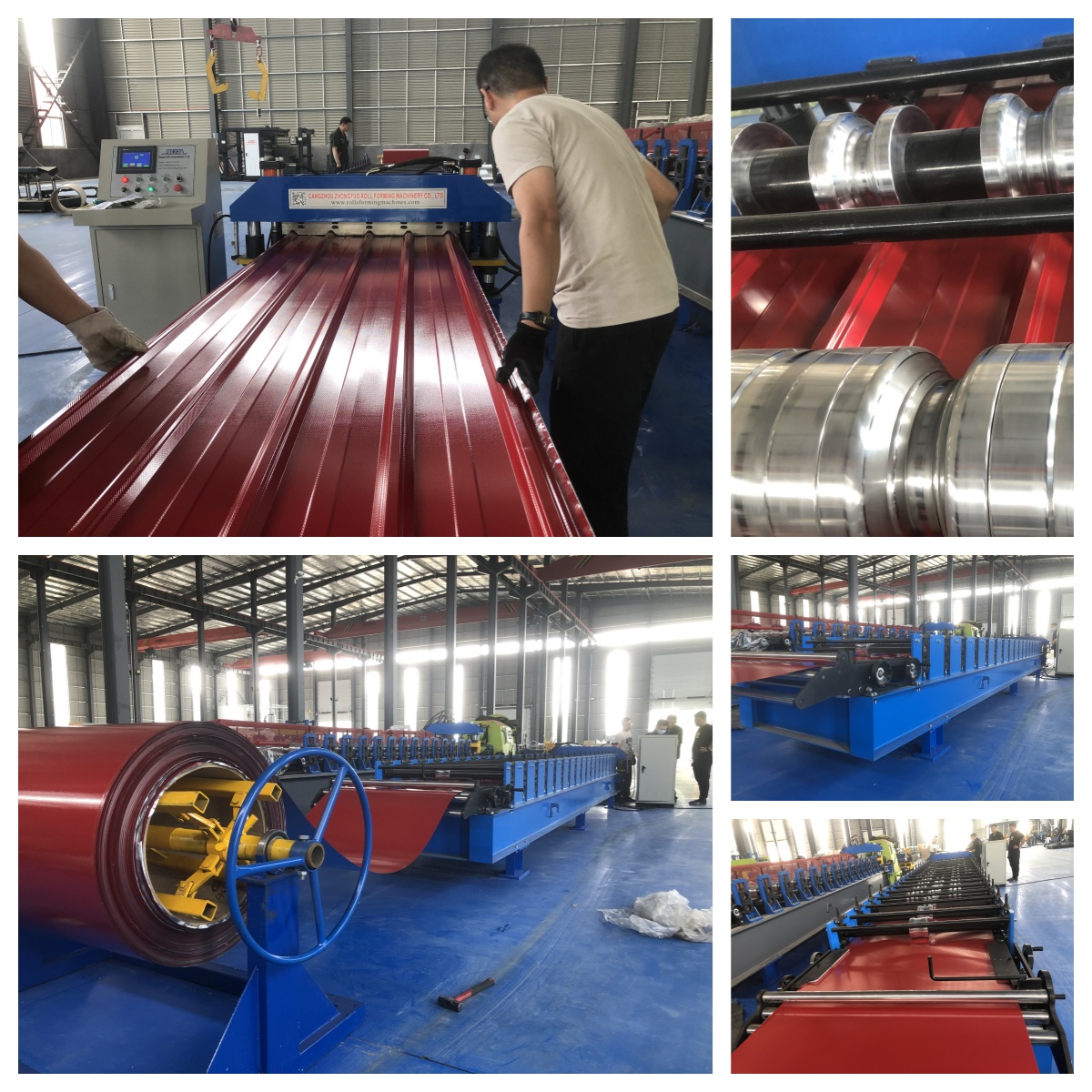

1 Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet 2 Width of material 1200mm or as you required 3 Thickness of material 0.3-0.8mm or as your needs 4 Working speed 10-20m/min 5 Main motor power 5.5kw with cycloidal reducer 6 Hydraulic station power 5.5kw 7 Electrical control system PLC control system 8 Shaft diameter 80mm 9 Roller station 12rows or as you required 10 Dimension 7500x1500x1910mm 11 Weight About 5 T 12 Voltage 380V 3phase 50HZ or as the customer’s requirements 13 Material of roller High grade 45# forged steel plated with hard chrome plating 14 Material of cutting Cr12 mould steel with quenched treatment 15 Working time Can be 24 hours Products Display：
