Well-Designed Roof Tile Glazed Tile Roll Forming Machine Roofing Sheet Making Machine Ibr Roof Sheet Machine

Equipment features:

  • Product diversification:
    The glazed roof tile machine can produce various shapes, colors, and specifications of glazed tiles to meet different architectural styles and customer needs.
  • High production efficiency:
    The fully automatic glazed tile machine can produce a large amount of glazed tiles in a short period of time, greatly improving production efficiency and reducing production costs.
  • Good product quality:
    The pressed glazed tiles have a smooth and even appearance, precise dimensions, high strength, and good waterproof, anti-corrosion, and weather resistance properties, with a long service life.
  • Easy to operate:
    The equipment is usually equipped with a simple and easy to understand operating interface and automated control system. After simple training, operators can proficiently master the operating methods, reducing the difficulty of operation and labor costs.
  • High safety:
    Glass roof tile machines produced by legitimate manufacturers will fully consider safety in the design and manufacturing process, equipped with overload protection, emergency stop devices and other safety protection measures to ensure the safety of operators and equipment.


Equipment advantages:

The equipment advantages of the glazed tile machine mainly include high efficiency, precision, safety, and reliability. The glazed tile machine can achieve continuous production, greatly improving production efficiency, easily meeting large-scale production needs, and making enterprises stand out in market competition. With high-precision processing technology, the glazed tile machine can ensure the accurate size and uniform texture of the tiles produced, providing high-quality building materials for construction projects. In addition, the glazed tile machine is equipped with various advanced safety protection devices, effectively reducing safety risks during operation and providing reliable safety guarantees for operators. After strict quality control and testing, the glazed tile machine has demonstrated excellent reliability and stability, ensuring the continuity and stability of the production process.

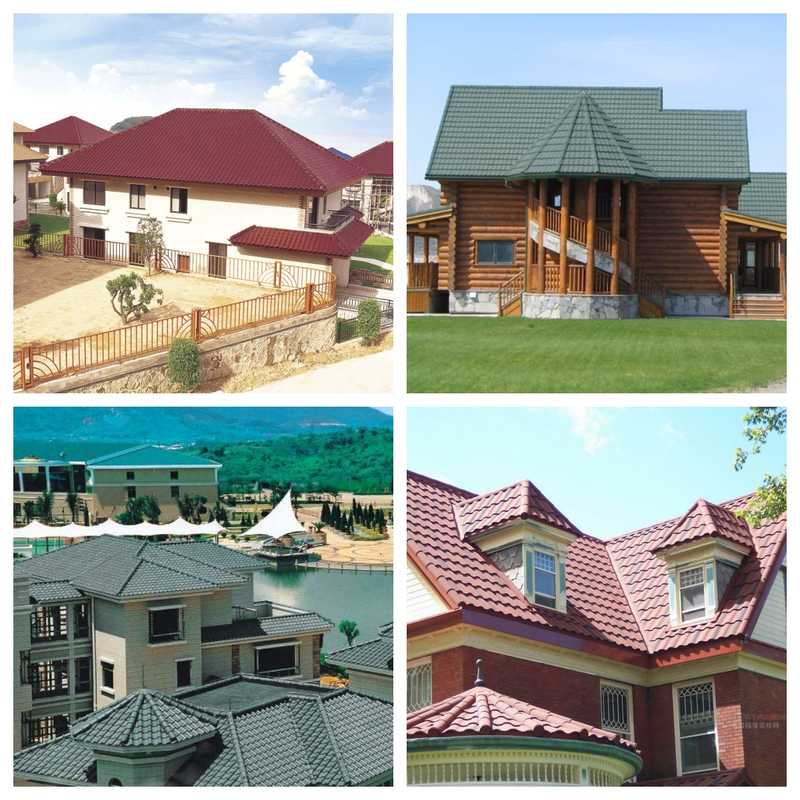

Products Display:

Product Attributes :

1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm  Width:1000mm/1250mm(customized)
2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free)

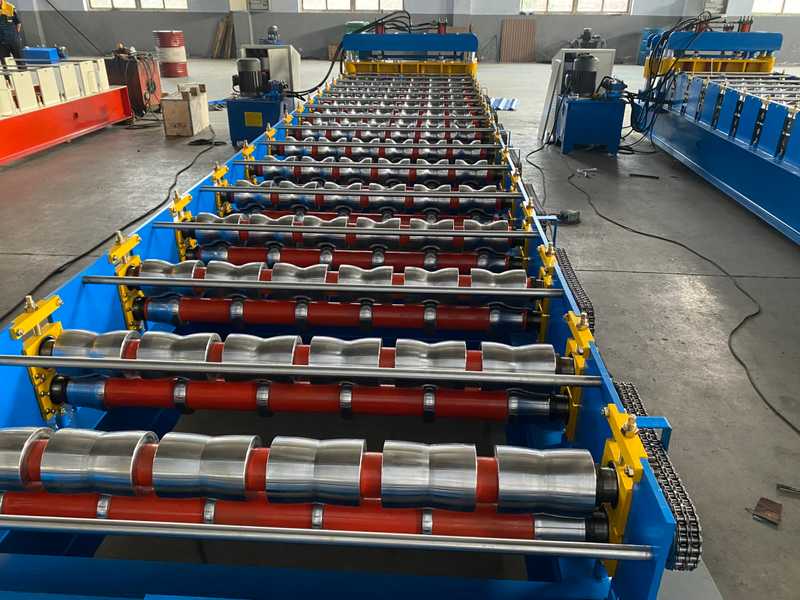

3.Main body
Roller station
16 rows(As your requirement)
 Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Chain transmission
Dimension(L*W*H)
8500*1600*1500 mm(customize)
Weight
5.5T

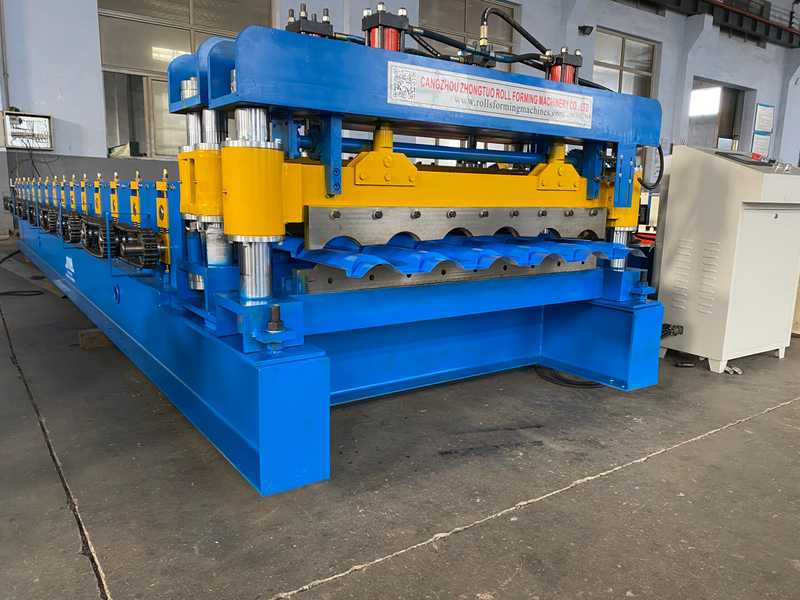

4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
7.5KW
Hydraulic system power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
0-10m/min
The speed is adjustable

Here is the working video of this machine for everyone to watch:
