Trapezoidal Roll Forming Machine Sheet Making Machine Roof and Wall Panel Roll Forming Machine

Product Introduction:

Trapezoidal roofing tile machine is a highly integrated roofing building material processing equipment that plays a key role in the process of modern building industrialization. The equipment takes metal plates such as color steel plates, galvanized plates, and aluminum alloy plates, as well as new building materials such as high-performance resin composite boards and fiber cement boards as processing objects, and realizes the whole process of automated production from raw material uncoiling, leveling, roll forming, sized cutting to finished product stacking through the coordinated operation of the precision mechanical transmission system and intelligent electrical control system. The equipment adopts modular design, which can flexibly adjust the slope angle, rib height size, lap method and other parameters of the roof tile according to the needs of different construction projects; Its core forming unit is equipped with multiple sets of high-precision roll molds, which ensure that the surface of the tiles is flat and smooth and the dimensional accuracy is controlled within ±0.5mm through a progressive cold forming process. In addition, the built-in laser ranging and CNC cutting system of the equipment can automatically complete the precise cutting of complex shape tiles, effectively improving production efficiency and material utilization, and is an ideal choice for large-scale roofing building materials manufacturers to achieve efficient and stable production.

Machine Features:

1.Intelligent manufacturing empowerment, production capacity leap:
relying on the cutting-edge automation control system, the trapezoidal roof tile machine is like a precision-operated industrial poem, breaking the traditional shackles with continuous production rhythm. Compared to the slow carving and semi-automated intermittent rhythm of artisanal work, it accurately eliminates redundant processes and turns every minute into efficient output. A single piece of equipment can create thousands of square meters of tile miracles every day, injecting surging momentum into the roof demand of magnificent construction projects.
2.Millimetry, outstanding quality:
with micron-accurate mold matrix and intelligent positioning system, the equipment becomes a strict architectural aesthetic guardian. The whole production process is scaled with millimeters, and each trapezoidal roof tile is carved into a standard work of art. The surface of the molded tiles is as smooth as a mirror, the corners are neat, and the size is perfect, which not only outlines the elegant skyline of the roof, but also builds a waterproof and windproof copper wall with precision structure.
3.Simplified intelligent control, cost reduction and efficiency:
the equipment operation interface is simplified, and the complex process is transformed into an intuitive interactive experience, so that novices can take charge of the production context after short-term training and dissolve the shackles of professional thresholds. The wave of automation has swept through the production process, greatly reducing manpower investment, and at the same time optimizing the raw material ratio with intelligent algorithms, so that every inch of material can be used to the best of it, and the lean control of costs from source to end is achieved.
4.Vientiane model, customized as you wish:
As a practitioner of architectural creativity, the equipment is well versed in the way of personalized needs. Through the flexible change of molds, it can transform the designer's imaginative ideas into reality, whether it is the tough lines of industrial plants, the elegant charm of civil residences, or the modern aesthetics of public buildings, all of which can be customized according to needs, dressing the building in a unique tile dress.

Application Scenarios:

1.Industrial Construction:
In industrial buildings such as factories, warehouses, and workshops, the roofing tiles produced by trapezoidal roofing tiles machines have become the first choice due to their excellent performance. Taking large heavy industrial plants as an example, their internal equipment will produce continuous vibration during operation, and traditional tiles are easy to loosen and fall off, while trapezoidal roof tiles adopt a unique bite design, combined with high-strength steel pressing process, which can withstand a load pressure of more than 150kg/㎡, and can be firmly attached to the roof even in strong storms. In addition, the tile surface is treated with a double-layer waterproof coating, and with the slope optimization design of the drainage groove, the drainage efficiency is increased by 40% compared with ordinary tiles, effectively avoiding the common condensation accumulation problem in industrial environments, and the average service life is more than 30 years, greatly reducing the maintenance cost of the building.
2.Civil construction field:
In civil construction scenarios such as residential buildings, villas, and apartments, trapezoidal roof tiles have been upgraded from simple functional building materials to aesthetic expression carriers. For modern and simple style residences, gray tiles with matte matte texture can be customized, which forms a cold and warm contrast with the large area of glass curtain wall; For Chinese courtyard buildings, reddish-brown glazed trapezoidal tiles can reproduce the layering of traditional small green tiles through staggered laying. In terms of functionality, the honeycomb insulation embedded inside the tiles can reduce indoor temperatures by 5-8°C in summer; The special wave structure design of the tile body can effectively absorb external noise of 30-40 decibels, and with the hollow design of the cornice components, it further improves the overall sound insulation effect and creates a quiet and comfortable living space for residents.
3.In the field of public buildings:
In the roof construction of public buildings such as schools, hospitals, gymnasiums, shopping malls, etc., the products produced by trapezoidal roof tile machines fully demonstrate the advantages of safety and reliability. In densely populated school buildings, the tiles have passed the hail impact test (can resist hail with a diameter of 3cm) and the wind lifting test (no displacement of the level 12 typhoon), providing a solid guarantee for the safety of teachers and students. For special places such as hospitals, the surface of the tiles is treated with antibacterial coating, which effectively inhibits the growth of mold; The anti-slip texture design of the gymnasium roof is combined with the anti-condensation treatment process to ensure that the roof is free of wet and slippery hazards in rainy and snowy weather. The trapezoidal roof tiles used in shopping mall buildings are designed to be installed quickly and reduce the impact of construction cycles on commercial operations, while their fire protection level reaches A1 standards, fully meeting the stringent safety requirements of public buildings.

Product Attributes ：

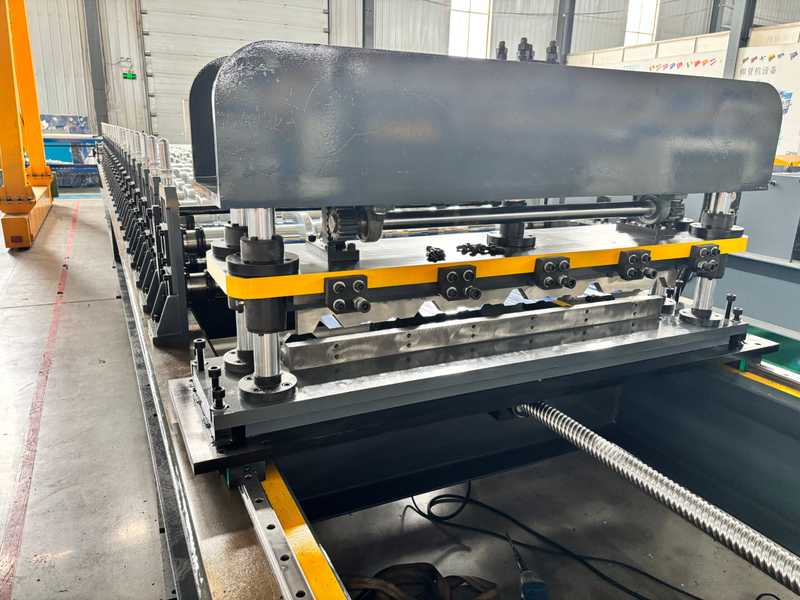

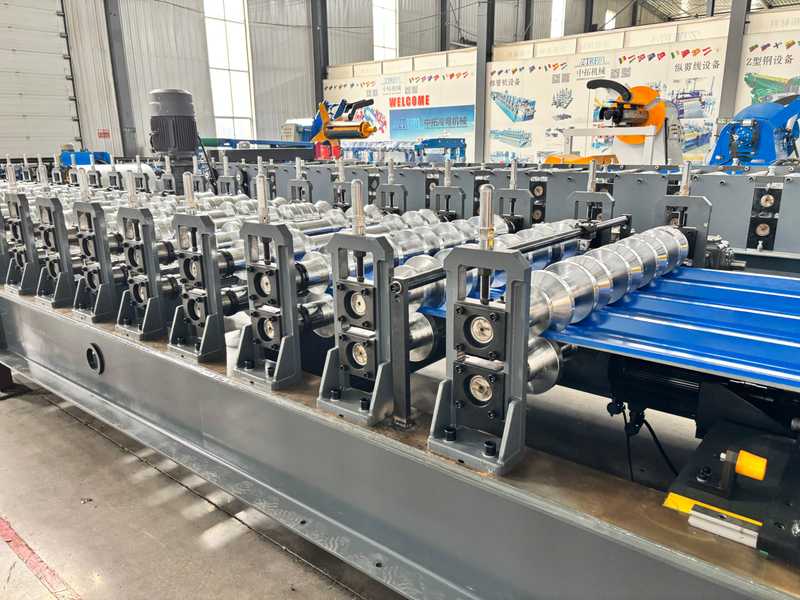

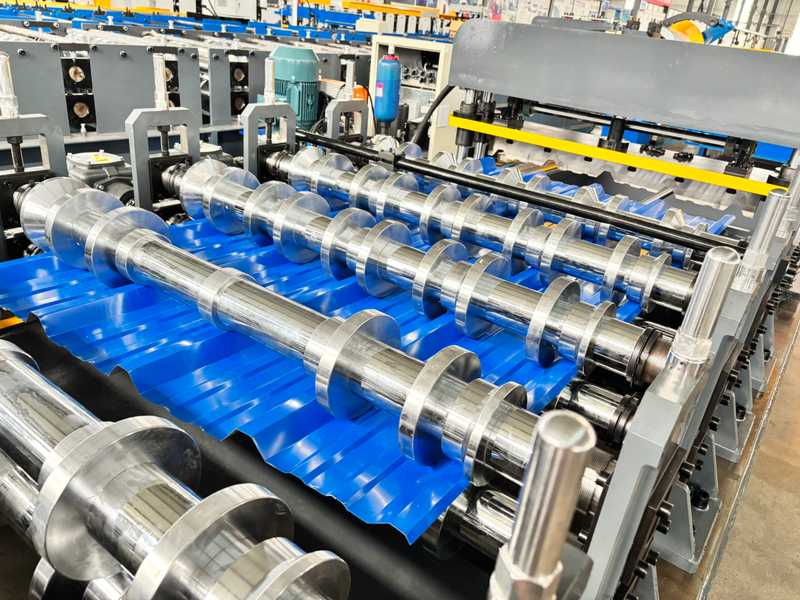

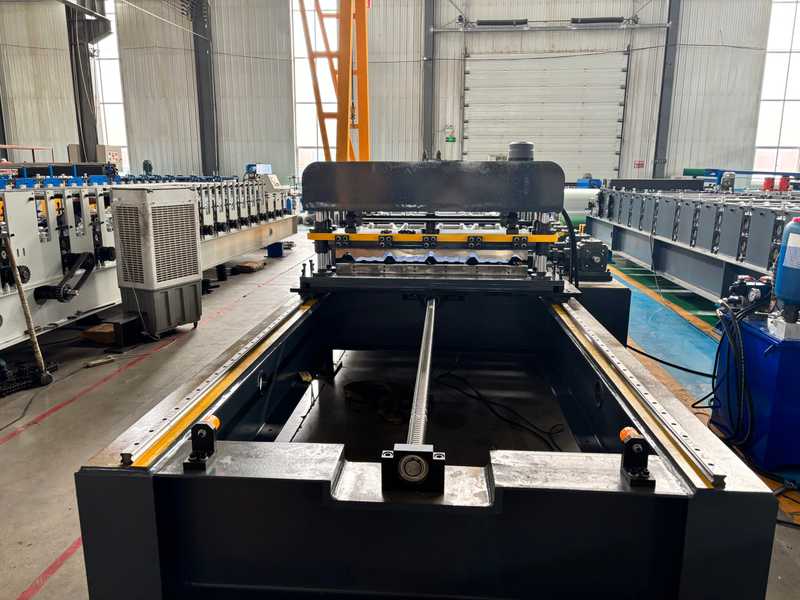

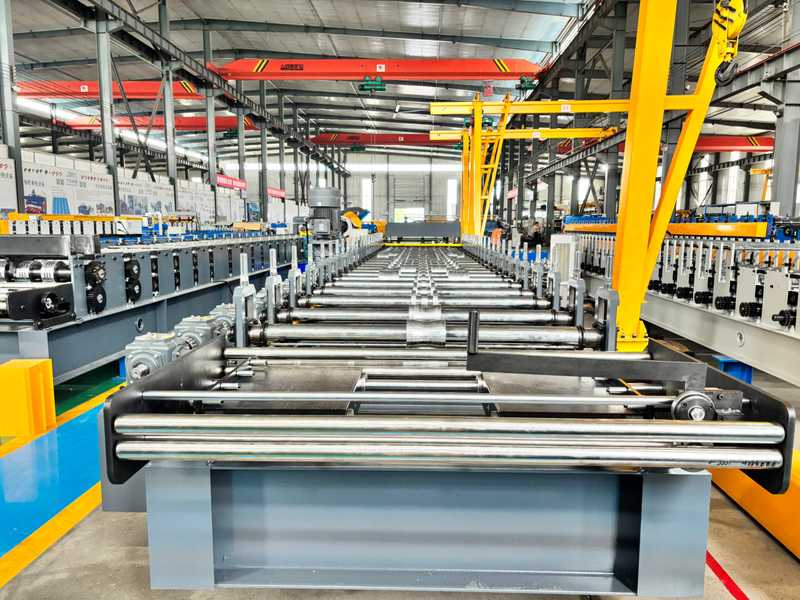

Products Display：
