820 Movable standing seam machine is popular in the Africa market

Here is the working video of this machine for everyone to watch:

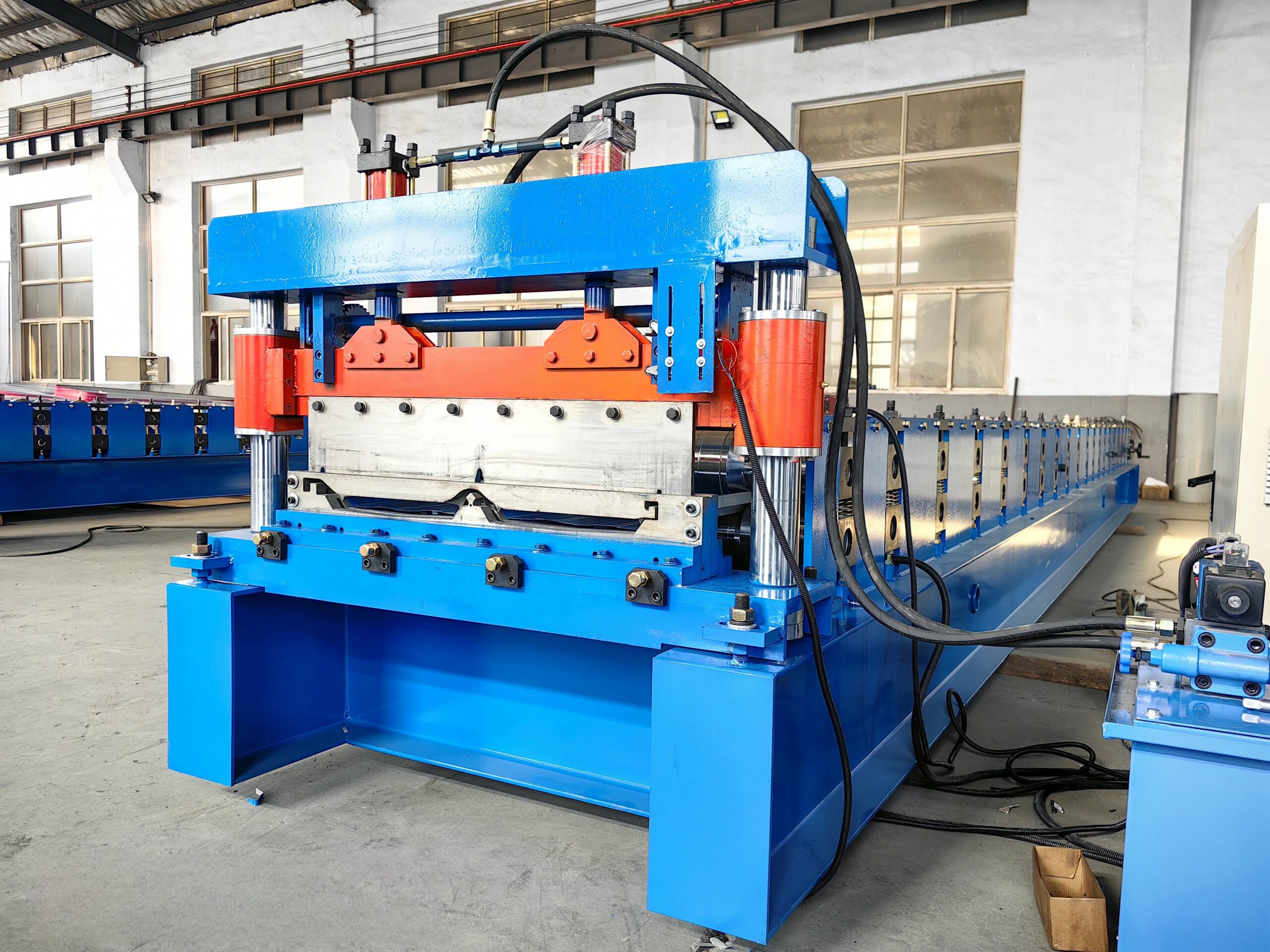

The forming machine is fixed in the container, and the equipment can be produced on the construction site.

1.High flexibility:
This standing joint can be moved and adjusted according to actual needs.

2.Good sealing performance:
movable design can effectively prevent the intrusion of external substances like rain and dust, ensuring the stability and cleanliness of the indoor environment.

3.Strong aesthetic appeal:
The appearance of movable standing joints is usually simple and neat, which can add aesthetic appeal to buildings or equipment.

Product Attributes :

Material:PPGI, thickness 0.3-0.6mm

Roller station：20 roller stations

Roller material： 45# steel

Roller shaft diameter: 75mm

Production speed: 0-10m/min

Main motor power: 7.5KW

Hydraulic motor power:  5.5kw

Control system: Delta screen and PLC control system

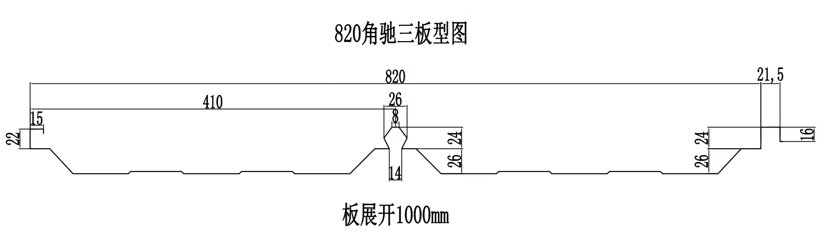

Pattern diagram:

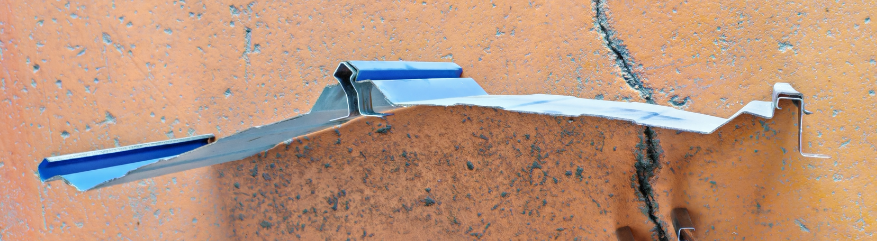

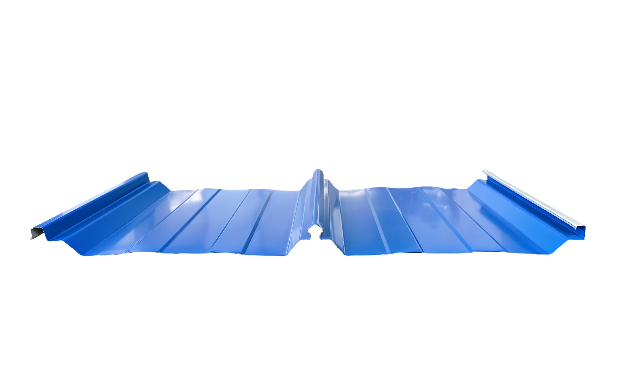

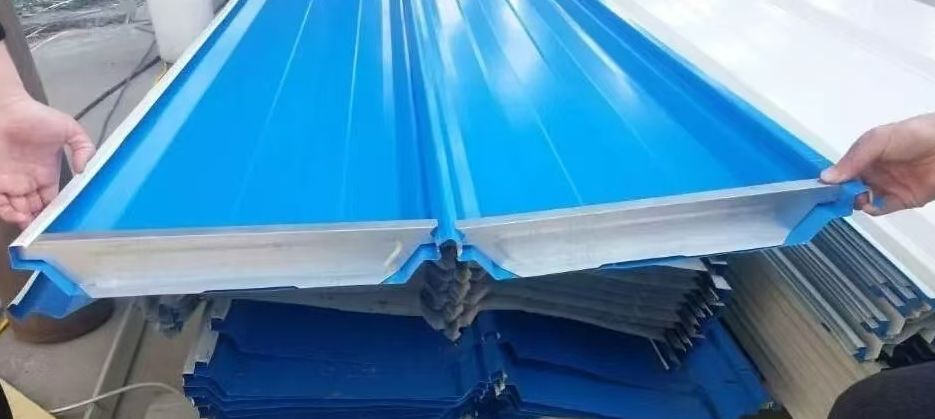

Finished product image:

Product Description：

The 820 Movable standing seam machine is a device used for processing standing seam roof panels, which has the characteristics of high efficiency, precision, and environmental protection. By adopting advanced CNC technology and automatic feeding system, it is possible to quickly and accurately cut and process sheet metal, significantly improving production efficiency. The equipment is also equipped with an intelligent control system that can automatically adjust the cutting speed and processing accuracy, ensuring efficient and stable production processes. Machines can produce roof panels of different specifications and shapes. The equipment can also be customized according to customer needs to meet the specific requirements of different projects. In addition, the vertical seam roof panel machine is widely used in the metal roof construction of industrial plants, office buildings, warehouses, shopping centers and other buildings.

‌

• The function of blocking water is to prevent water from flowing down from this side.

• The function of the eave plug: to block the eave gap. To prevent birds, rain and dust from entering.

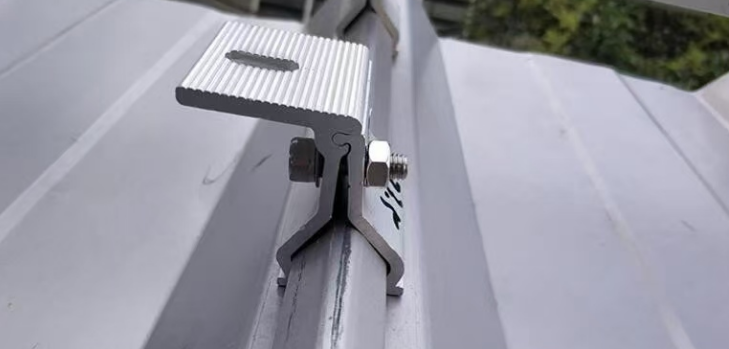

• The function of aluminum alloy clamp: To fix the roof tiles, avoiding the use of screws and preventing paint surface of the roof tiles from being scratched.

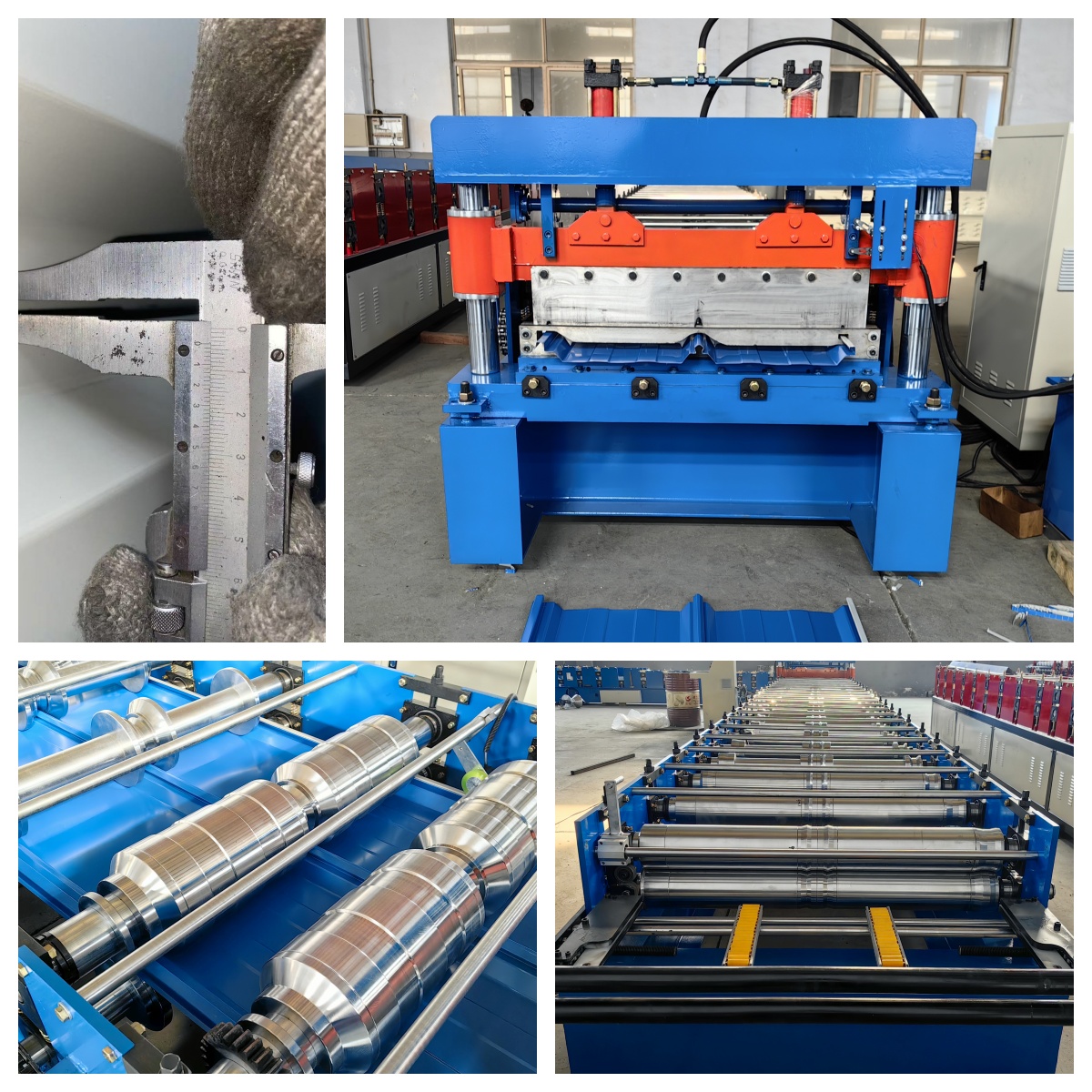

Products Display：
