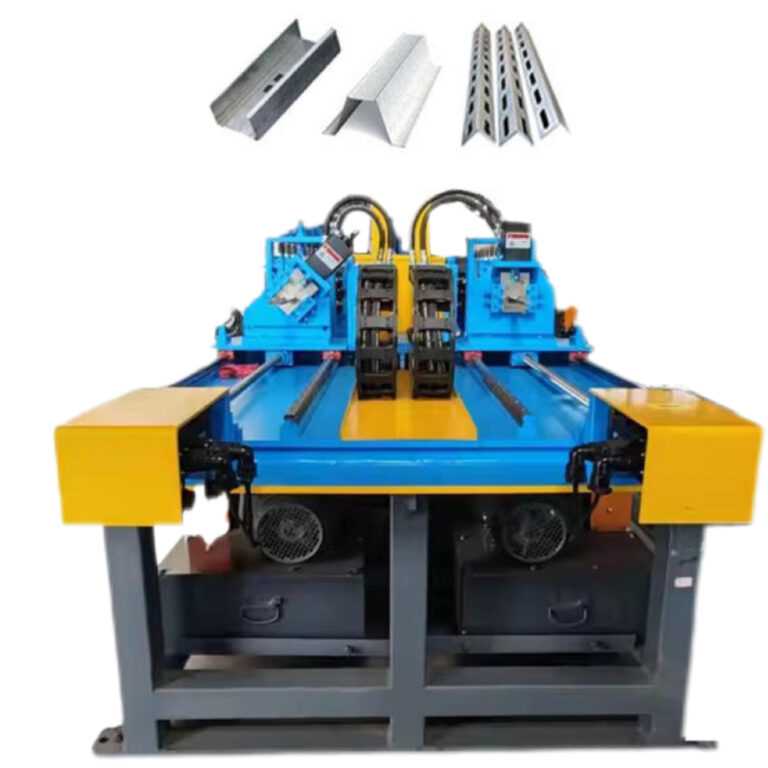

Double Line C and U shape Drywall Profiles Roll Making Line Light Steel Stud Frame Form Machine

Light steel stud frame form machine is a cold bending equipment that processes steel strips into various specifications of light steel keels through continuous cold rolling process. It is mainly used for producing complex cross-section keel profiles such as C-shaped, U-shaped, T-shaped, L-shaped, etc. These keel profiles are widely used in building structures such as ceilings, partitions, and villa main frames.
1.From single unit to dual unit:
Early single line equipment had a maximum speed of only 6m/min, while modern dual unit models (such as Zhongtuo ZT-360) use dual servo drives, increasing the speed to 25m/min and supporting synchronous production of C/U profiles.
2.Material adaptability upgrade:
G550 high-strength aluminum zinc coated steel strip (yield strength ≥ 550MPa) can be processed, equipped with automatic correction device, compatible with thickness fluctuations of 0.3-2.3mm.
3.Economic indicators:
Compared to traditional wooden keels, the construction efficiency of light steel keels has been improved by 40% (with a daily completion of 300 square meters of partition wall frames), and the material utilization rate has reached 98%. The scraps can be recycled through an online punching system.
4.Sustainable advantages:
100% recyclability reduces construction waste, combined with BIM system to achieve prefabricated production and reduce on-site cutting losses.

Main features:

1.Efficient automation production:
The light steel stud frame form machine adopts a PLC control system, which has the characteristics of high efficiency and high degree of automation, and the production speed can reach 6-13 meters per minute.
2.Multiple security protections:
The device is equipped with multiple protective measures during normal production to prevent deformation of the body and ensure a long service life.
3.High precision forming:
The  light steel stud frame form machine can produce keel products with standardized specifications, small errors, and stable product quality.
4.High structural strength:
The formed frame adopts cast iron structure and has undergone tempering treatment, with a long service life.
5.Small footprint:
The equipment has a relatively small footprint, making it easy to arrange in a limited space.
6.Easy to operate:
The device has a simple operation process, stable operation, and is suitable for large-scale production.

Specific purpose:

The  light steel stud frame form machine is mainly used for producing light steel keel profiles, which are processed into C-shaped, U-shaped, T-shaped, L-shaped and other cross-sectional profiles through cold rolling technology. It is widely used in building ceilings, partitions and decorative structures. ‌

1.Ceiling system
Produce T-shaped main keel as the support for the suspended ceiling skeleton, combined with secondary keel and gypsum board to form a stable suspended ceiling structure, suitable for shopping malls, office buildings, stations and other places. ‌

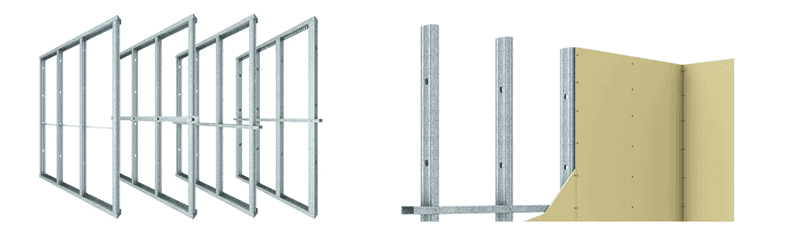

2.Partition wall system
Provide C-shaped and U-shaped keel frames for the construction of non load bearing partition walls, with sound insulation and fire prevention functions, suitable for residential and office space renovation. ‌

3.Decorative structure
Processing L-shaped connectors for the connection between ceilings and walls/columns, which can achieve complex styling designs, is commonly used in commercial display areas and performance venues. ‌

Product Attributes ：

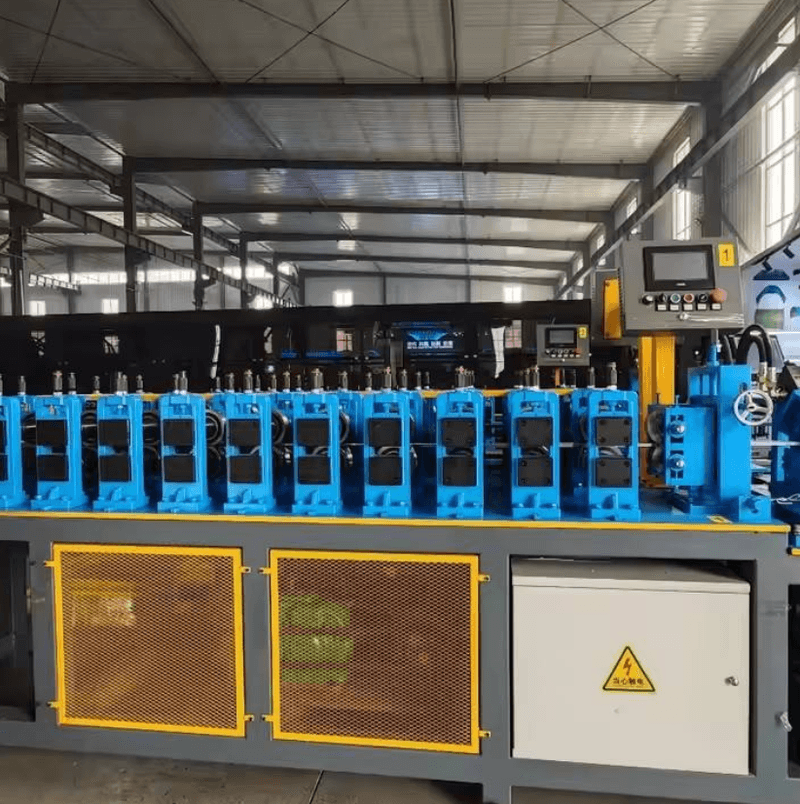

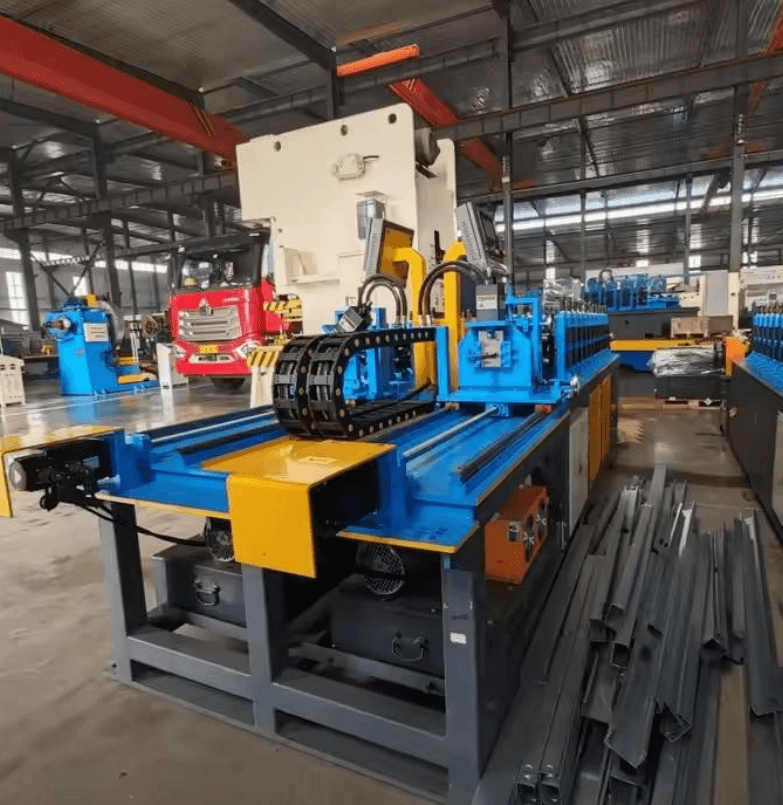

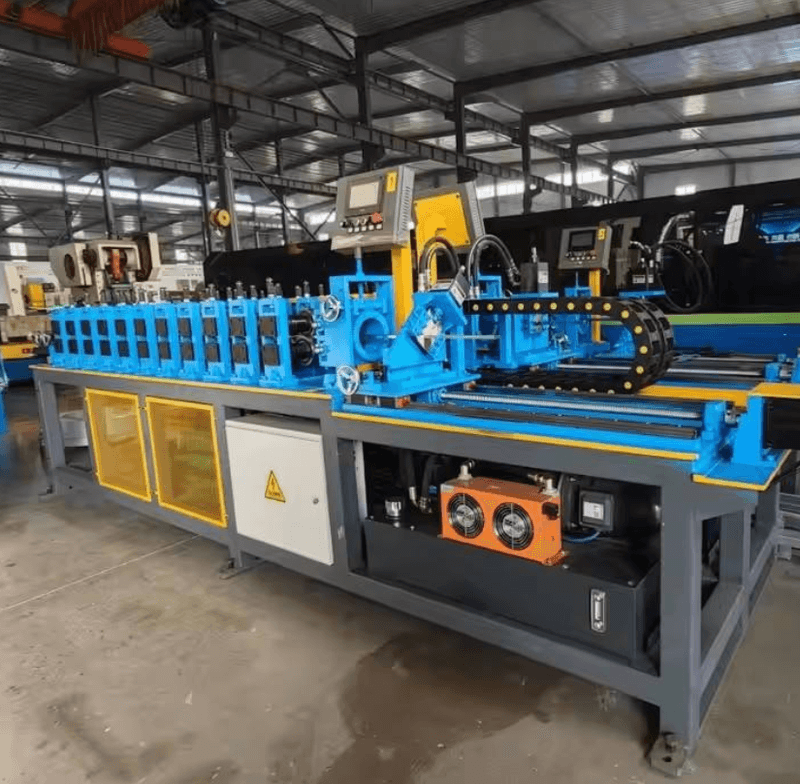

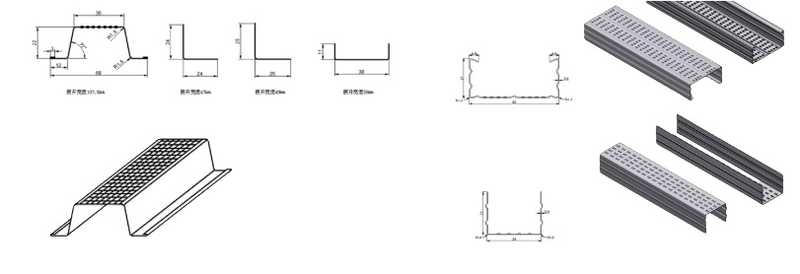

Products Display：
