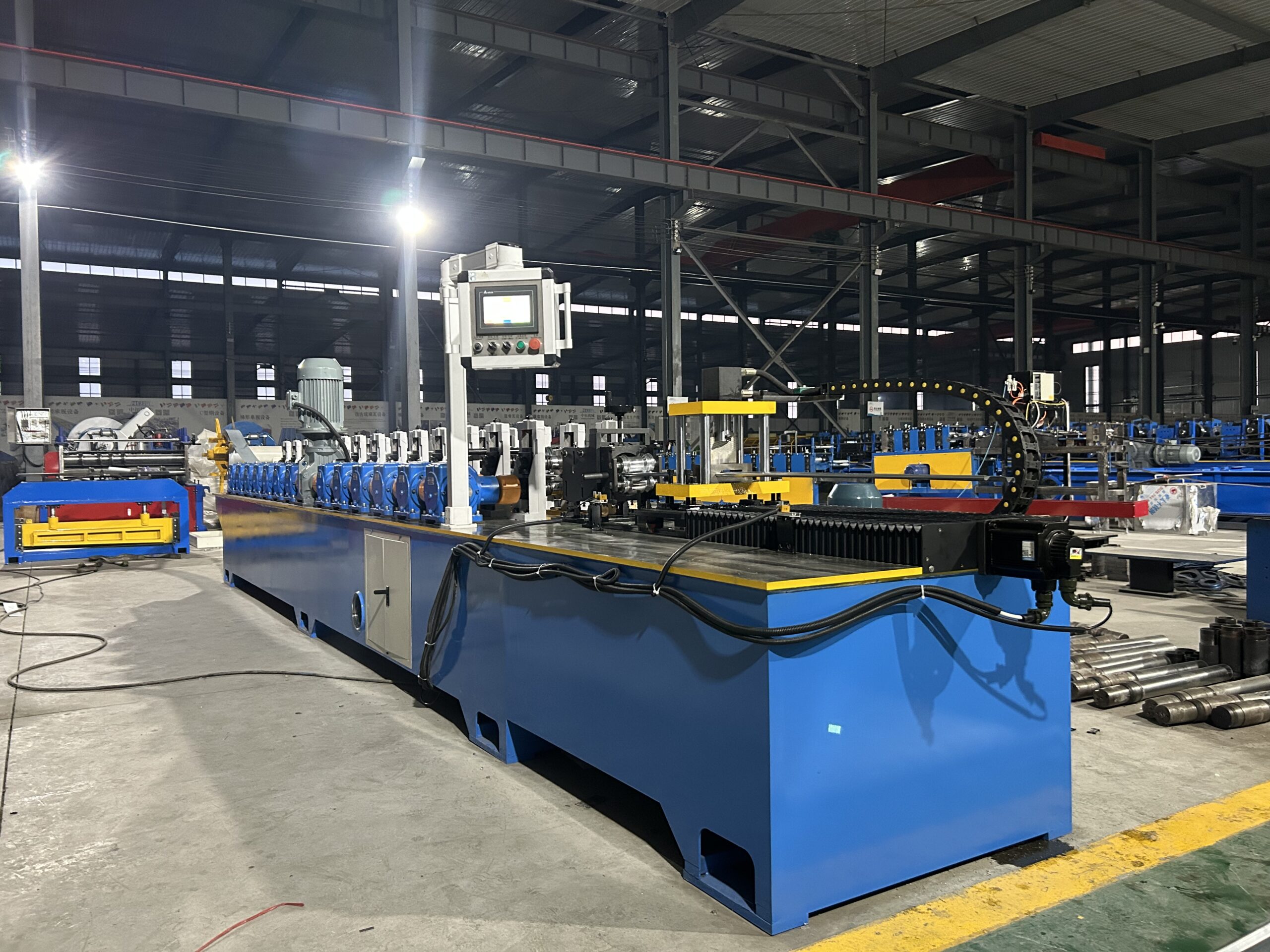

Full automatic shutter door roll forming machine is a device used for manufacturing rolling shutter doors. It adopts synchronous forming and rolling method to form, and through computer control, hydraulic shearing, and dynamic counting technology, it can produce rolling shutter doors with flat and regular surface. The full automatic shutter door roll forming machine is widely used in the production of rolling shutter doors in various industrial plants, warehouses, supermarkets, and shopping malls. It is suitable for commercial storefronts, factories, mines, and other public places or residences, especially for places with large door openings and inconvenient installation of ground doors, and has the function of convenience and opening.
The advantages of the full automatic shutter door roll forming machine mainly include efficient production, high-precision forming, and multifunctionality. ：
Firstly, the full automatic shutter door roll forming machine has the characteristic of efficient production. This equipment uses a multi station roller set to perform progressive plastic deformation on metal strips, with an adjustable processing speed range of 6-15 meters per minute, which can greatly improve production efficiency.
Secondly, the full automatic shutter door roll forming machine performs excellently in terms of forming accuracy. The standard rolling shutter door forming machine can achieve a forming accuracy of ± 0.1 millimeters through a servo control system, ensuring that the fit tolerance between the door body and the guide rail meets relevant standards.
In terms of multifunctionality, the rolling shutter doors produced by the full automatic shutter door roll forming machine are widely used in building decoration, industrial manufacturing, and security industries. Rolling shutter doors in the field of architecture are suitable for commercial complexes, underground garages, and logistics storage facilities, with high wind pressure resistance, excellent sealing performance, and low operating noise.

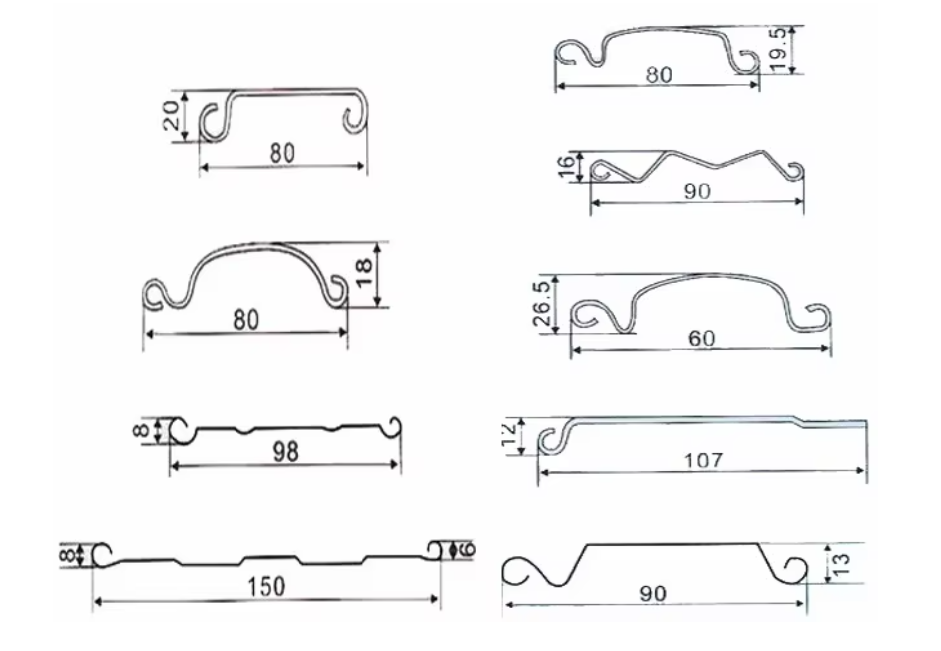

Pattern diagram：
Product Attributes :
1.Formed Material | GI | Thickness:0.8-1.2mm | ||
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
3.Main body | Roller station | 14 rows(As your requirement) | ||
Diameter of shaft | 50mm solid shaft | |||
Material of rollers | 45# steel, hard chrome plated on the surface | |||
Machine body frame | Metal steel welded | |||
Drive | Chain transmission | |||
Dimension(L*W*H) | 5500*800*1200(customize) | |||
Weight | About 5T | |||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
5.Power | Motor Power | 7.5KW | ||
Hydraulic system power | 5.5KW | |||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
7.Control system | Electric Box | Customized(famous brand) | ||
Language | English(Support multiple languages) | |||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
18.Forming Speed | 20-30m/min(customized) | Speed is adjustable according to customer's request | ||
