High Precision Automatic Ceiling Panel Roll Forming Machine

Ceiling panel roll forming machine are mainly used to produce various types of ceiling panels, which are widely used in interior decoration of buildings such as shopping malls, hotels, office buildings, and residential homes. The ceiling panel roll forming machine processes metal sheets (such as color steel plates) or composite materials into ceiling panels with certain shapes and sizes through roll forming technology. The equipment usually adopts processes such as automatic feeding, roll forming, and fixed length cutting to achieve continuous production of sheet metal.

Equipment features：

• High production efficiency:
  By adopting automated production processes, it is possible to quickly and efficiently produce a large amount of ceiling panels.
• High molding quality:
  Through precise roll pressing technology, the surface of the ceiling panels produced is smooth and even, with precise dimensions.
• Multifunctionality:
  The ceiling panel roll forming machine can adjust parameters to produce panels of different thicknesses, widths, and shapes.
• Easy to operate:
  equipped with advanced control system, easy to operate and maintain.

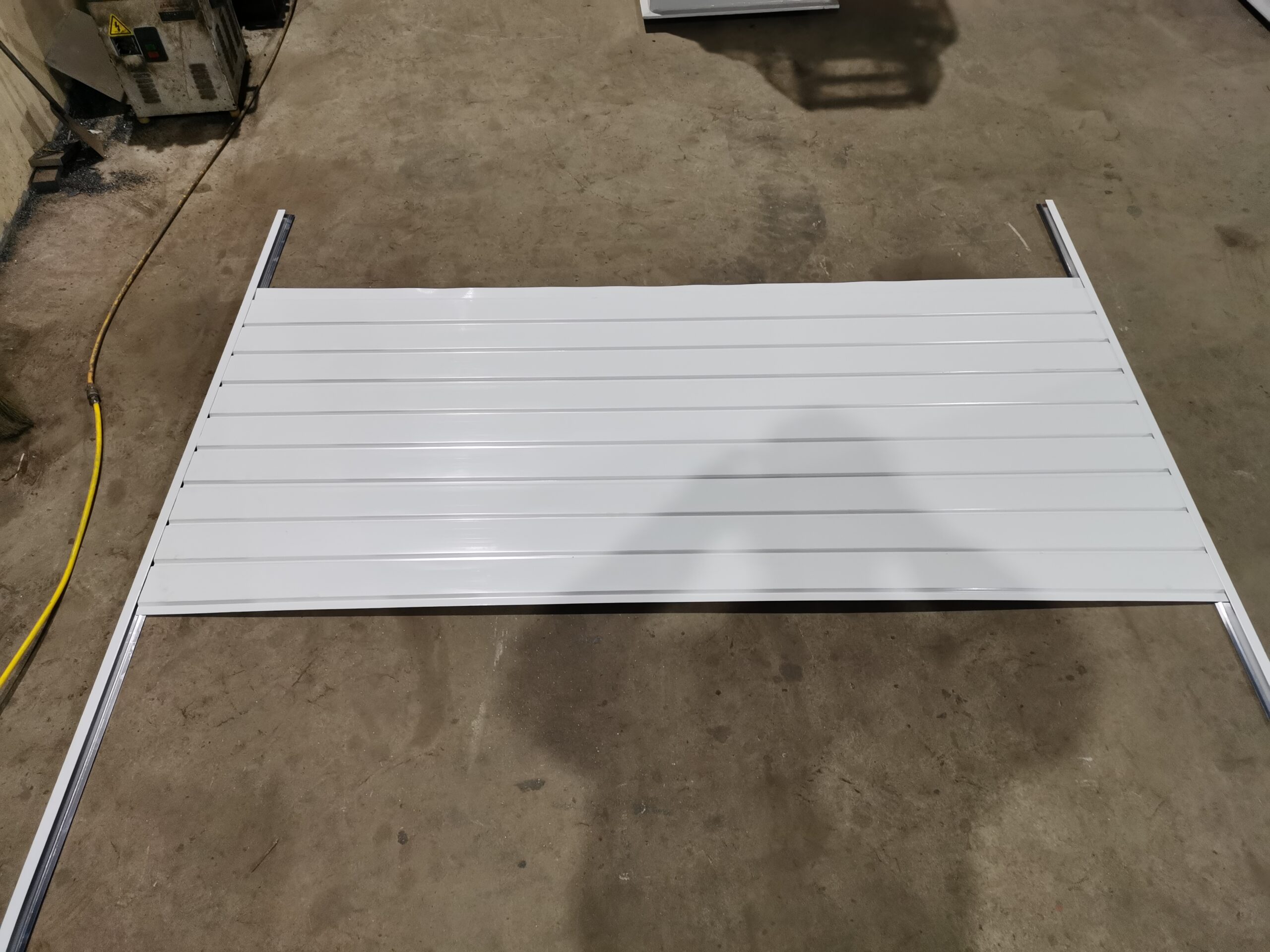

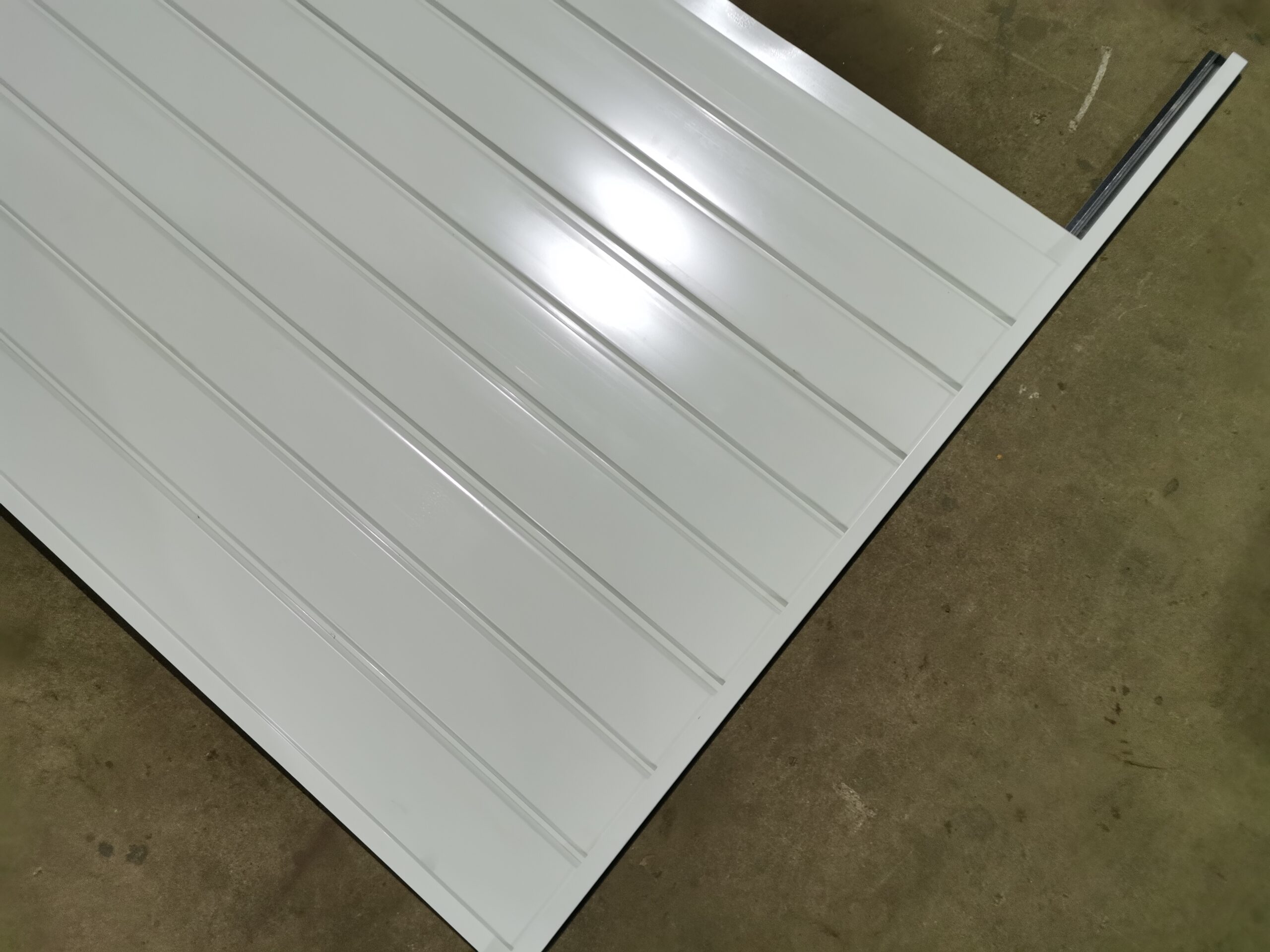

  Some finished product images:



  Below is a work flow video for you to watch：

  Product Attributes :

  1.Formed Material	PPGI,GI,AI		Thickness:0.5-1.2mm
  2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
  3.Main body	Roller station		As your requirement
  	Diameter of shaft		50mm solid shaft
  	Material of rollers		45# steel, hard chrome plated on the surface
  	Machine body frame		Metal steel welded
  	Drive way		gear
  	Dimension(L*W*H)		5500*800*1200(customize)
  	Weight		About 8T
  4.Cutter	Automatic		cr12mov material, no scratches, no deformation
  5.Power	Motor Power		7.5KW
  	Hydraulic system power		5.5KW
  6.Voltage	380V 50Hz 3Phase		As your requirement
  7.Control system	Electric Box		Customized(famous brand)
  	Language		English(Support multiple languages)
  	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
  18.Forming Speed	30m/min(customized)		The speed depends on the shape of the tile and the thickness of the material.

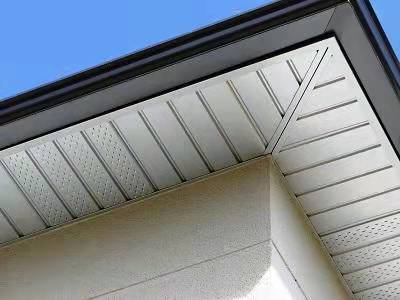

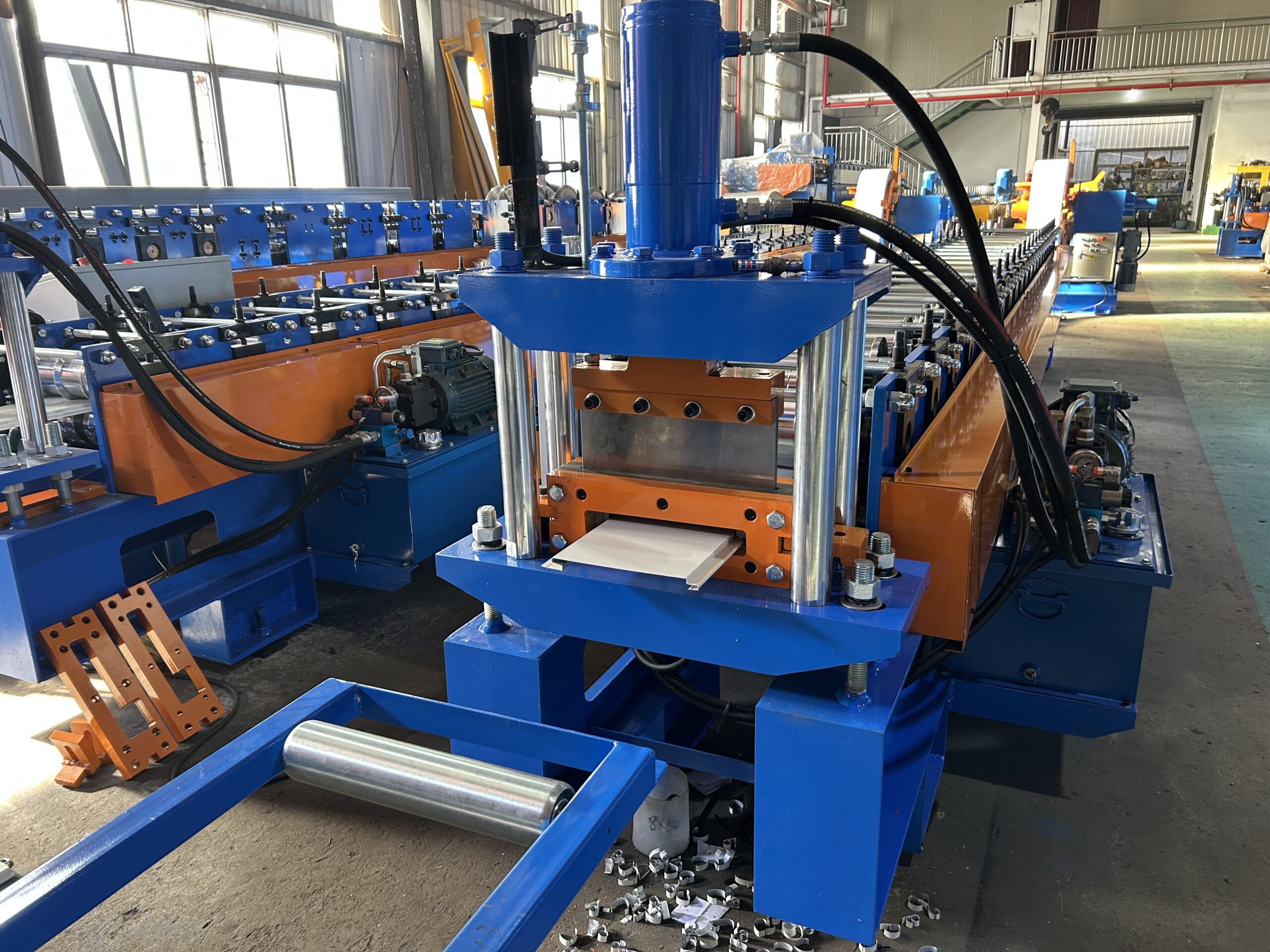

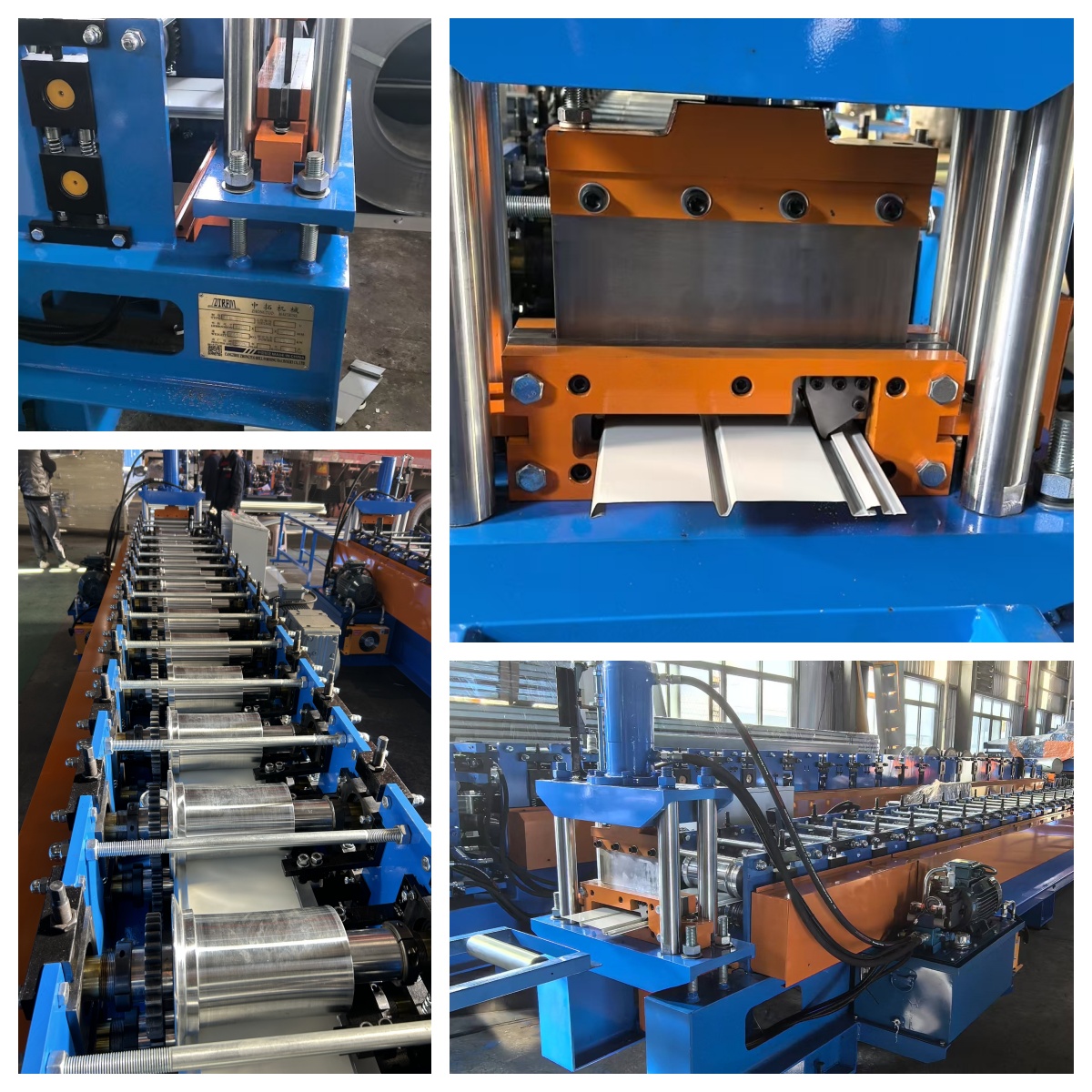

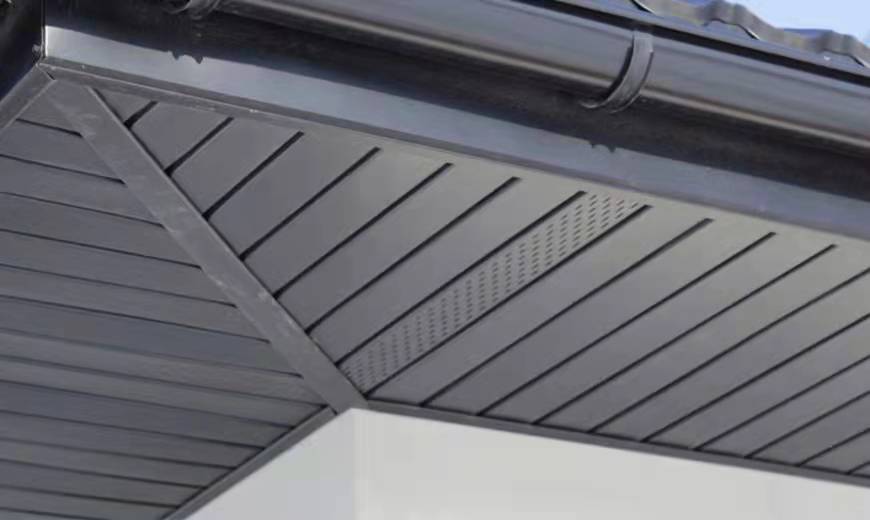

  Products Display：
